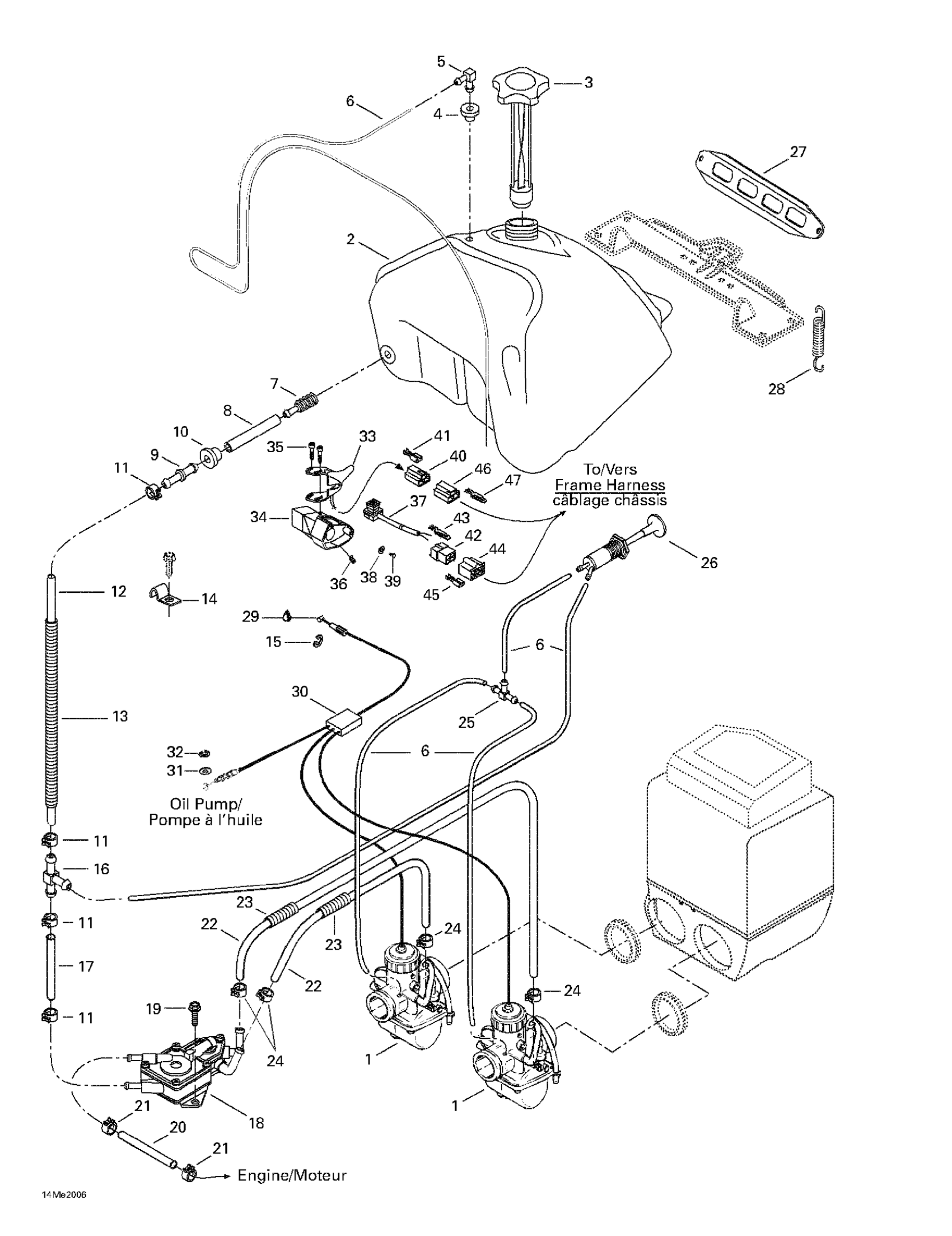

Ski-Doo Touring 500 LC, 2000 02- Fuel System Diagram

#

Description
Price

1

Carburetor VM 38-431 (PTO)

403138608

Unavailable

Carburetor VM 38-432 (MAG)

403138609

Unavailable

2

Fuel Tank

572108900

Unavailable

3

Fuel Tank Cap

572161200

$38.99

4

Grommet

513032908

$10.49

5

Male Connector

414814100

$2.22

6

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

7

Fuel Filter

414865700

$10.99

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Male Connector

414518500

$4.23

10

Grommet

570045500

$6.69

11

Spring Clamp

414554800

$0.88

12

Polyurethane Hose 10000Mm Long

219704410

$56.99

13

Tubing 10 MM 1000MM Long

219704407

$2.79

14

CLIP - Call your local BRP dealership

415018200

Unavailable

15

Circlip

414274500

$0.90

16

T-fitting

414222500

$1.69

17

Polyurethane Hose 10000Mm Long

219704410

$56.99

18

FUEL PUMP ASS'Y - Call your local BRP dealership

403801100

Unavailable

19

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

Unavailable

20

Hose

219704549

$50.99

21

Spring Clamp

414415200

$0.88

22

Tube

415117800

Unavailable

23

Tubing 10 MM 1000MM Long

219704407

$2.79

24

Spring Clamp

414420700

$0.72

25

T-Fitting

414222400

$1.69

26

Primer

415060500

$34.99

27

Fuel Tank Bracket

517249200

Unavailable

28

SPRING - Call your local BRP dealership

517182100

Unavailable

29

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

30

Throttle Cable and Housing (38 mm)

414968801

Unavailable

31

Flat Washer 8 mm, Nylon

234081100

$1.39

32

Circlip

414753500

$0.71

33

Handle Ass'y

512059348

$93.99

34

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

35

Flange Screw

732601143

$4.12

36

Socket Set Screw M8 X 10

414440800

$4.12

37

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

38

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

39

Screw

414473200

Unavailable

40

Female Terminal Housing (3 circuits)

409008500

Unavailable

41

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

42

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

43

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

44

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

45

Female Terminal PACKARD

561503200

Unavailable

46

Male Terminal Housing (3 circuits)

409008600

Unavailable

47

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable
