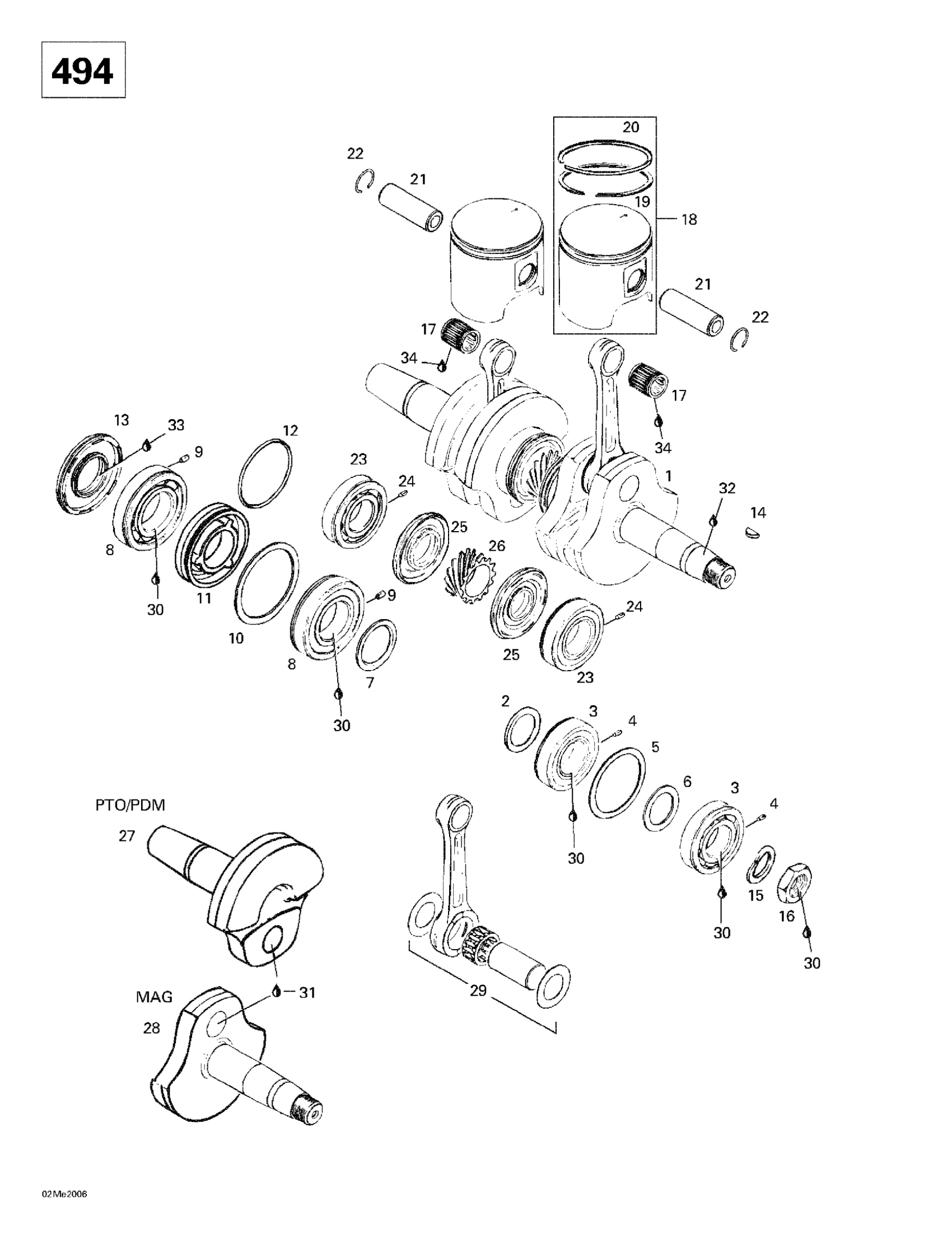

Ski-Doo Touring 500 LC, 2000 01- Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 14.

420886933

Unavailable

2

DISTANCE RING - Call your local BRP dealership

420827445

Unavailable

3

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

4

Dowel Pin

420929972

Unavailable

5

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

6

ADJUSTMENT WASHER - Call your local BRP dealership

420427684

Unavailable

7

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

8

BALL BEARING - Call your local BRP dealership

420832574

Unavailable

9

Dowel Pin

420929972

Unavailable

10

Retaining Disk

420927710

$7.41

11

Labyrinth Bushing

420830294

Unavailable

12

O-RING - Call your local BRP dealership

420830370

Unavailable

13

Oil Seal This part replaces 290831952.

420831952

$18.01

14

Woodruff Key

420246015

$3.17

15

Lock Washer, 22 mm

420945759

$1.90

16

Hex. Nut, M22 X 1.5

420842239

$17.53

17

Needle Bearing

420832438

Unavailable

18

Piston Ass'y (2 rings 69.39 mm) | Includes 16 - 18.

420887553

Unavailable

Oversize Pist. Ass'y (2 rings 69.64 mm)

420887554

Unavailable

19

Rectangular Ring 69.5 mm

420915985

Unavailable

OVERSIZE RECTANGULAR RING 69.75 MM - Call your local BRP dealership

420915986

Unavailable

20

Semi-trapez Ring 69.5 mm

420815045

Unavailable

Oversize Semi-trapez Ring 69.75 mm

420815046

Unavailable

21

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

22

Piston Circlip

420945735

$4.46

23

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

24

Dowel Pin

420929972

Unavailable

25

Oil Seal

420831990

$20.49

26

Central Gear 14 Teeth

420935748

Unavailable

27

Crankshaft (PTO side)

420818660

Unavailable

28

Crankshaft (MAG side)

420818690

Unavailable

29

Crankshaft Repair Kit (PTO side)

420886955

Unavailable

CRANKSHAFT REPAIR KIT (MAG SIDE) - Call your local BRP dealership

420886956

Unavailable

30

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

31

Sealant Loctite 648

219703000

$45.99

32

Loctite 243, 10 ml

293800060

$21.49

33

Dow Corning 111, 150 g

413707000

$59.99

34

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
