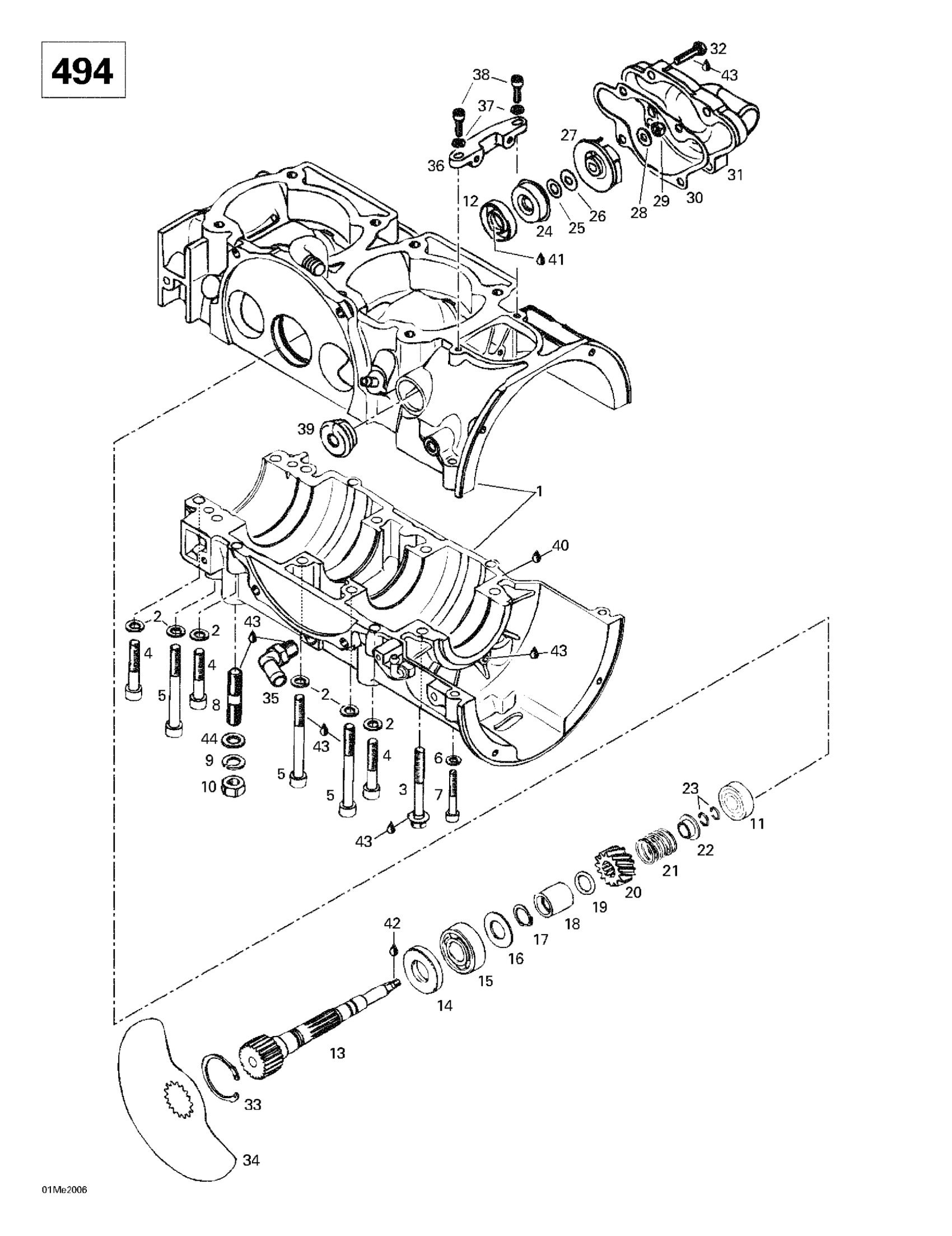

Ski-Doo Touring 500 LC, 2000 Crankcase, Rotary Valve, Water Pump Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 - 7.

420888181

Unavailable

2

Washer-Lock Din.128

420945832

$1.09

3

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.34

4

Socket Head Screw M8 X 45

420841561

Unavailable

5

ALLEN SCREW M8 X 75 - Call your local BRP dealership

420841831

Unavailable

6

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

7

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

420241816

Unavailable

8

Stud M10 X 29/20

420940190

Unavailable

9

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

10

Hex. Nut M10 X 1.5

232006414

$1.11

11

Ball Bearing

420932797

$14.92

12

Oil Seal This part replaces 420850710.

420850711

$17.66

13

Rotary Valve Shaft

420837243

Unavailable

14

OIL SEAL - Call your local BRP dealership

420930580

Unavailable

15

BALL BEARING - Call your local BRP dealership

293350051

Unavailable

16

SHIM - Call your local BRP dealership

420227439

Unavailable

17

SNAP RING - Call your local BRP dealership

420845450

Unavailable

18

SPACER BUSHING - Call your local BRP dealership

420847282

Unavailable

19

O-Ring

293300024

$7.05

20

Sprocket 14Th This part replaces 420935735.

420935736

$72.77

21

SPRING - Call your local BRP dealership

420938810

Unavailable

22

SPRING SEAT - Call your local BRP dealership

420827430

Unavailable

23

CIRCLIP - Call your local BRP dealership

420845160

Unavailable

24

Rotary Seal

420650371

$35.72

25

Thrust Washer

420227945

$3.86

26

Washer

420227155

Unavailable

27

WATER IMPELLER - Call your local BRP dealership

420922036

Unavailable

28

Flat Washer

224061121

$0.44

29

Locking Nut M6

420842042

Unavailable

30

Gasket

420931355

Unavailable

31

Water Pump Housing

420922551

Unavailable

32

Hex. Screw M6 X 25

420240034

$1.56

33

Lock Ring

420945880

$3.61

34

ROTARY VALVE (147 DEG.) - Call your local BRP dealership

420924508

Unavailable

35

Angular Tube

420922242

$12.29

36

Fixation

420851280

Unavailable

37

WASHER - Call your local BRP dealership

420827800

Unavailable

38

Socket Head Screw M5 X 20

420441341

$3.95

39

Cable Grommet

420860965

$13.58

40

Sealing Compound Loctite 5366 310Ml

420297907

$54.57

41

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

42

Sealant Loctite 648

219703000

$35.72

43

Loctite 243, 10 ml

293800060

$20.77

44

Flat Washer 10 mm

234001410

$0.98
