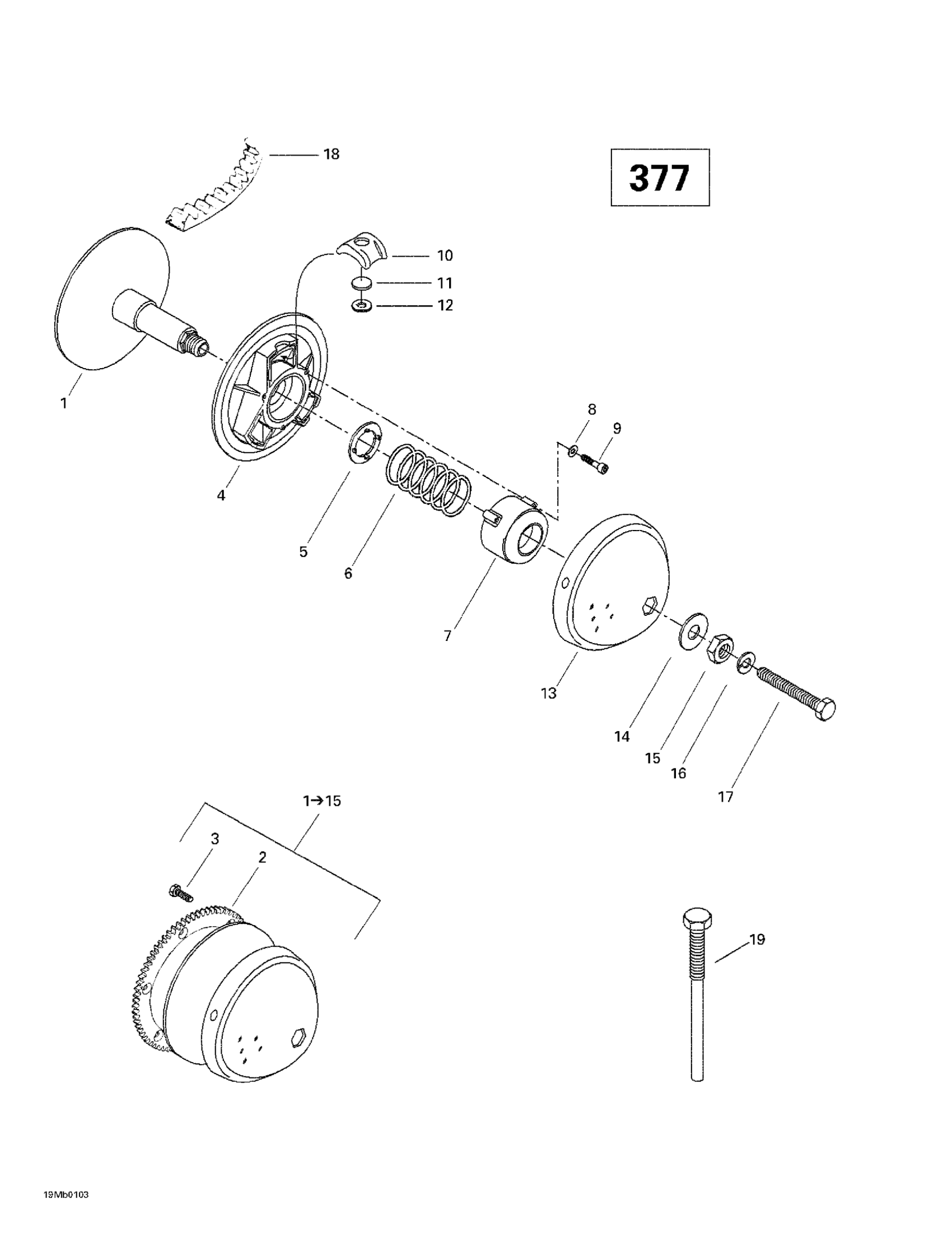

Ski-Doo Touring 380 F/500F, 2001 05- Drive Pulley (377) Diagram
#
Description
Price
1
Drive Pulley Ass'y | Includes 1 - 15. Touring 380 F.
417222389
Unavailable
1
Inner Flange
417121200
Unavailable
2
Ring Gear (86 Theet) | Formula Deluxe 380 F.
414807500
Unavailable
3
SCREW-FORMING HEX.HD.GM6174M - Call your local BRP dealership | Formula Deluxe 380 F.
210361686
Unavailable
4
Outer Flange
417126531
Unavailable
5
Guide Washer | 380 F.
417116200
Unavailable
6
Spring (Green/Green) | Touring 380 F.
417125300
Unavailable
7
Spring Cover
417121400
Unavailable
8
WASHER - Call your local BRP dealership
420245370
Unavailable
9
Socket Screw M6 X 40
205064086
Unavailable
10
CENTRIFUGE BLOCK - Call your local BRP dealership | CDN, USA
417118100
Unavailable
11
ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA
417120400
Unavailable
12
CAPSULE - Call your local BRP dealership | CDN, USA
417114500
Unavailable
13
Cap
417125100
Unavailable
14
Washer
417122400
Unavailable
15
NUT - Call your local BRP dealership
417118300
Unavailable
16
WASHER-LOCK HELICAL SPRING - Call your local BRP dealership
392002800
Unavailable
17
BOLT - Call your local BRP dealership
417113800
Unavailable
