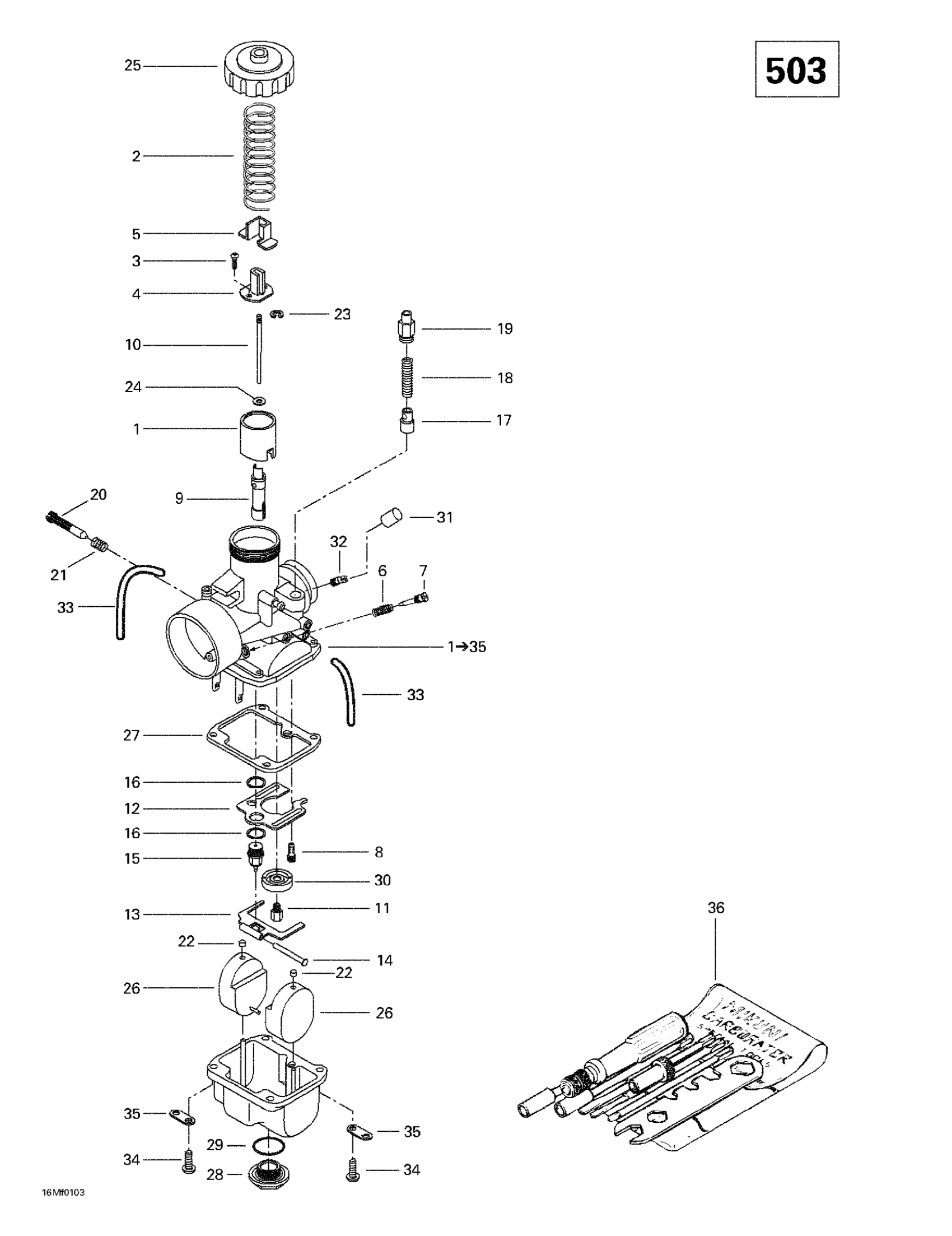

Ski-Doo Touring 380 F/500F, 2001 Carburetors (503) Diagram

#

Description
Price

1

Carburetor VM 34 549 (PTO) | MX Z 500 F. Formula DLX 500 F.

403138603

Unavailable

Carburetor VM 34 550 (MAG) | MX Z 500 F. Formula DLX 500 F.

403138604

Unavailable

1

Piston Valve 2.5

404128400

$124.60

2

Spring

404154800

$24.60

3

Screw With Washer

404121300

$4.24

4

Packing

404161948

Unavailable

5

Cover

404122100

$17.88

6

SPRING - Call your local BRP dealership

404139800

Unavailable

7

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

8

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

9

NEEDLE JET - Call your local BRP dealership

404107000

Unavailable

10

JET NEEDLE J8 6DH2 - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

404110400

Unavailable

11

Main Jet 180

404112200

$5.29

Main Jet MJ 170 (MAG) | MX Z 500 F. Formula DLX 500 F.

404123800

$5.29

12

BAFFLE - Call your local BRP dealership

404109600

Unavailable

13

Float Lever

404107600

$23.85

14

Lever Pin

404103300

$6.36

15

Needle Valve 1.5

404103200

$32.06

16

Seat Washer

404101600

$3.21

17

PLUNGER ASS'Y - Call your local BRP dealership

404161000

Unavailable

18

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

19

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

20

THROTTLE SCREW - Call your local BRP dealership

404125200

Unavailable

21

Spring

404101700

$4.24

22

Cap

404105800

$6.49

23

E-Ring

404152400

$6.36

24

Packing

404117000

$3.31

25

Cover

404103700

$32.06

26

FLOAT - Call your local BRP dealership

404107100

Unavailable

27

Gasket | Includes 1900a to 1900am

404104200

$6.49

28

Drain Plug Screw

404107400

$23.85

29

O-Ring

404107300

$7.90

30

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

31

Cap

404156600

$15.64

32

Nipple

404153400

$11.16

33

HOSE - Call your local BRP dealership

404161880

Unavailable

34

Screw With Lock Washer

404102000

$3.19

35

PLATE - Call your local BRP dealership

404103000

Unavailable

36

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
