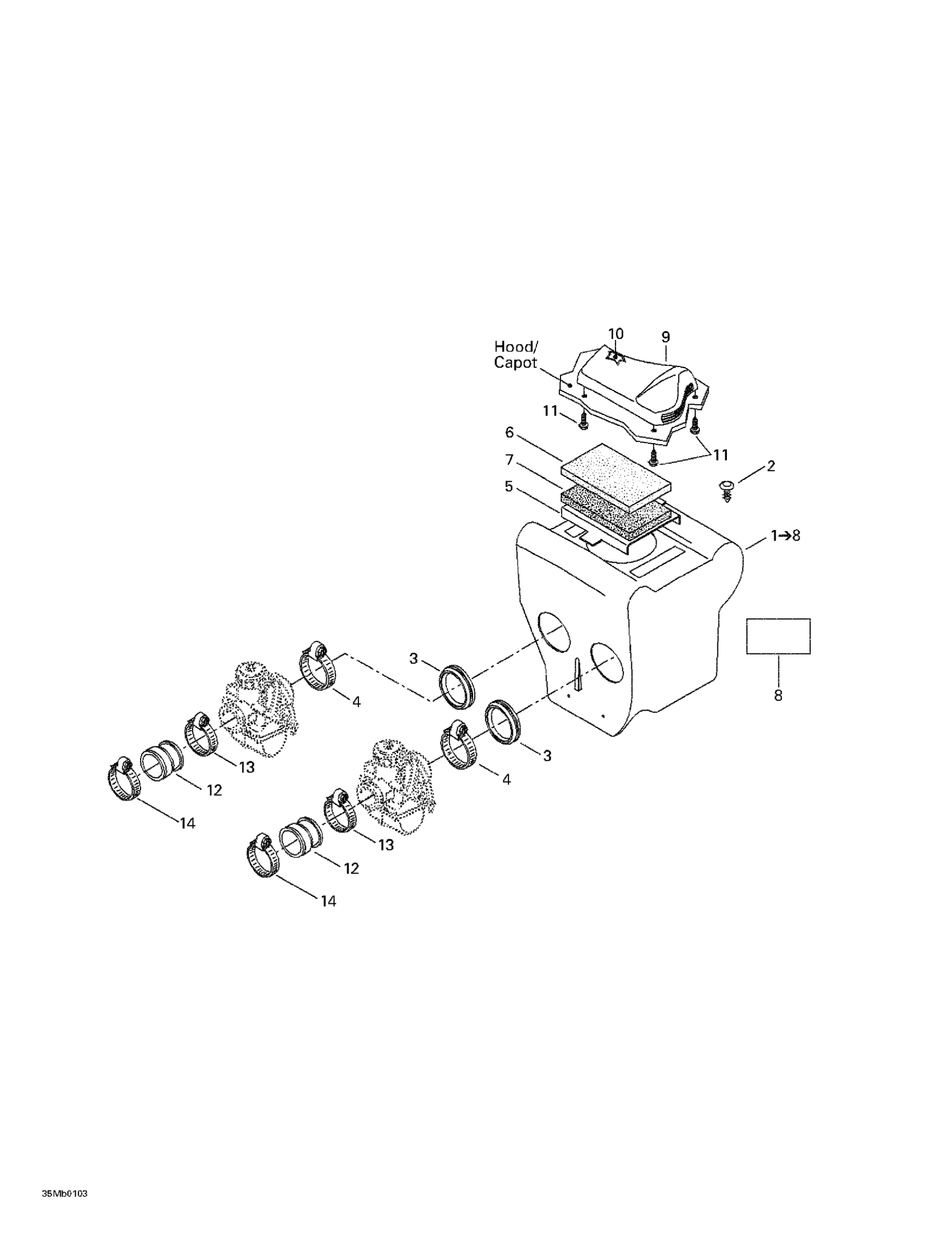

Ski-Doo Touring 380 F/500F, 2001 02- Air Intake System Diagram
#
Description
Price
1
Air Intake Ass'y | Includes 1 - 8.
508000014
Unavailable
Air Intake Ass'y | MX Z 500 F. Formula DLX 500 F.
508000013
Unavailable
3
Adaptor 34 mm
570043600
Unavailable
4
TRIDON GEAR CLAMP - Call your local BRP dealership
408801600
Unavailable
5
Intake Grill
517285900
Unavailable
6
Lower Foam
415106000
Unavailable
7
Air Filter
415037600
Unavailable
8
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.
516002715
Unavailable
9
INTAKE COVER - Call your local BRP dealership
572077900
Unavailable
12
CARBURATOR ADAPTOR - Call your local BRP dealership
570066800
Unavailable
13
Gear Clamp (47 mm)
408803800
Unavailable
14
COLLAR - Call your local BRP dealership
414532700
Unavailable
