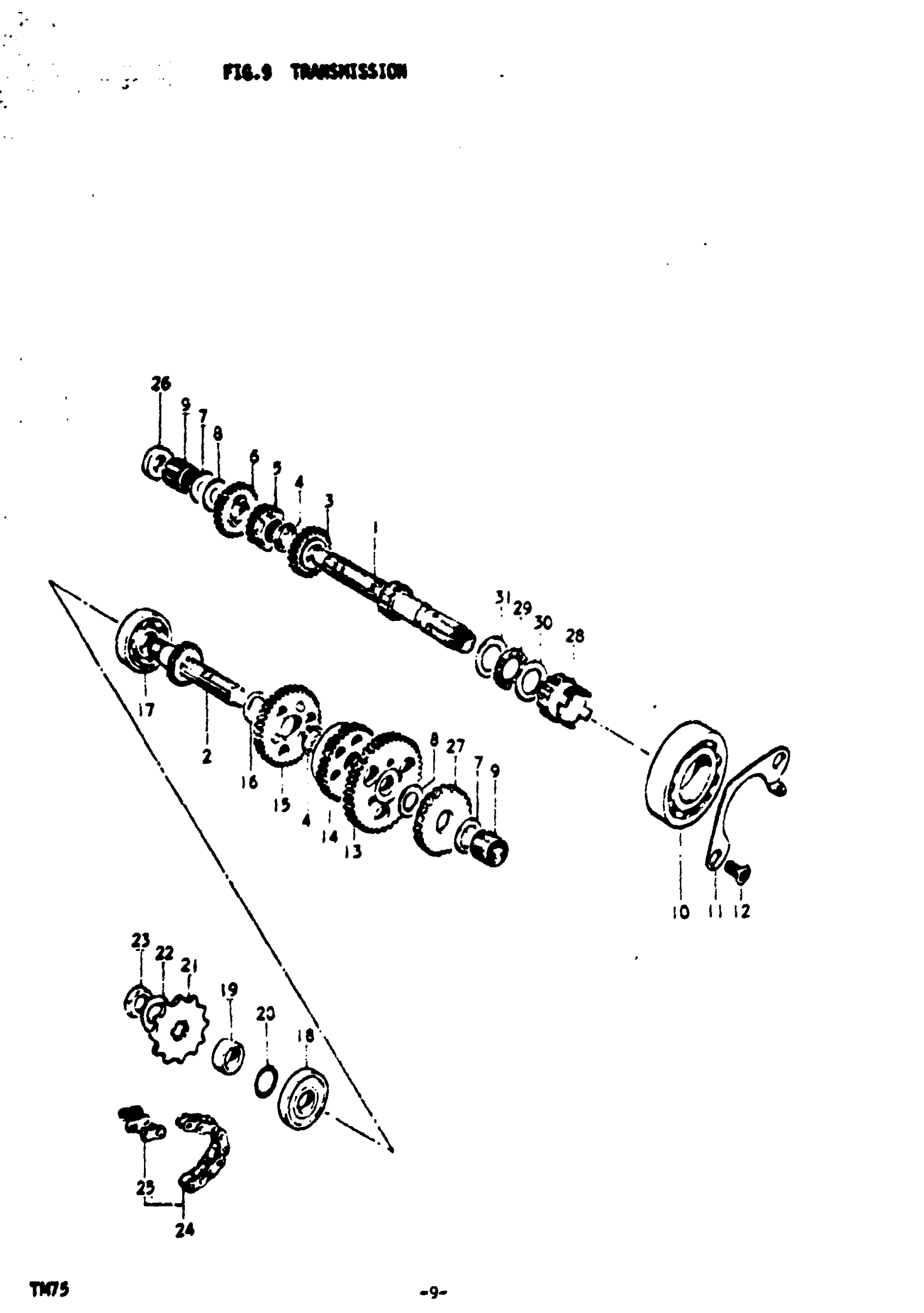

Suzuki TM75 (1976) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,COUNTER | NT:13 This part replaces 24121-03100.

24121-03101

Unavailable

2

DRIVESHAFT | NT:30

24131-03101

Unavailable

3

NO DESCRIPTION AVAILABLE | NT:23 This part replaces 24231-03001.

24231-03002

Unavailable

4

CIRCLIP

09380-17001

$1.98

5

NO DESCRIPTION AVAILABLE | NT:19 This part replaces 24221-03002.

24221-03003

Unavailable

6

GEAR, 4TH DRIVE | L,M; NT:28

24241-03001

Unavailable

6

GEAR, 4TH DRIVE | A

24241-26100

Unavailable

7

WASHER, OUTER | 12x24x2.3

09160-12015

Unavailable

8

THRUST WASHER | 12x26x1

08211-12261

$2.50

9

BEARING | 12x19x12

09263-12001

Unavailable

10

BEARING This part replaces 09262-30002.

09262-30003

Unavailable

11

HOLDER, BEARING

24741-25600

Unavailable

12

SCREW This part replaces 02121-06108.

02122-0610A

$1.68

13

GEAR,1ST DRIVEN | NT:43 This part replaces 24310-03002.

24310-03003

Unavailable

14

GEAR, 3RD DRIVEN | L; SEE NOTEL.(FIG,10) This part replaces 24331-03000.

24331-03001

Unavailable

14

GEAR, 3RD DRIVEN | M,A; NT:34

24331-03001

Unavailable

15

NO DESCRIPTION AVAILABLE | NT:39 This part replaces 24320-03000.

24320-26300

Unavailable

16

WASHER | 17x23x1

08211-17241

$2.54

17

BEARING

08113-63030

$23.65

18

OIL SEAL

09283-21001

$12.70

19

SPACER | 17x21x13

09180-17008

$8.58

20

O RING | 1D:17, D:1

09280-17001

$1.49

21

SPROCKET, ENGINE | NT:15

27511-26000

Unavailable

22

WASHER | 13x33x1

09167-16001

$1.87

23

NUT

09140-16002

$3.16

24

CHAIN ASSY,DRIV | #420-1124; Includes Item(s) 25 This part replaces 27600-05011.

27600-01012-130

Unavailable

25

JOINT (DID) This part replaces 27620-01011.

27620-01012

$6.87

26

SEAL OIL(5.5X16 This part replaces 09285-05004.

09285-05007

$4.47

27

GEAR, NICK STARTER IDLE | NT:26

26260-03002

Unavailable

28

NO DESCRIPTION AVAILABLE | NT:17 This part replaces 26280-03002.

26280-03003

Unavailable

29

BEARING

09263-20002

Unavailable

30

WASHER | 20.1x29.5x0.8

09160-20005

Unavailable

31

WASHER | 20x34.5x0.8

09160-20007

Unavailable
