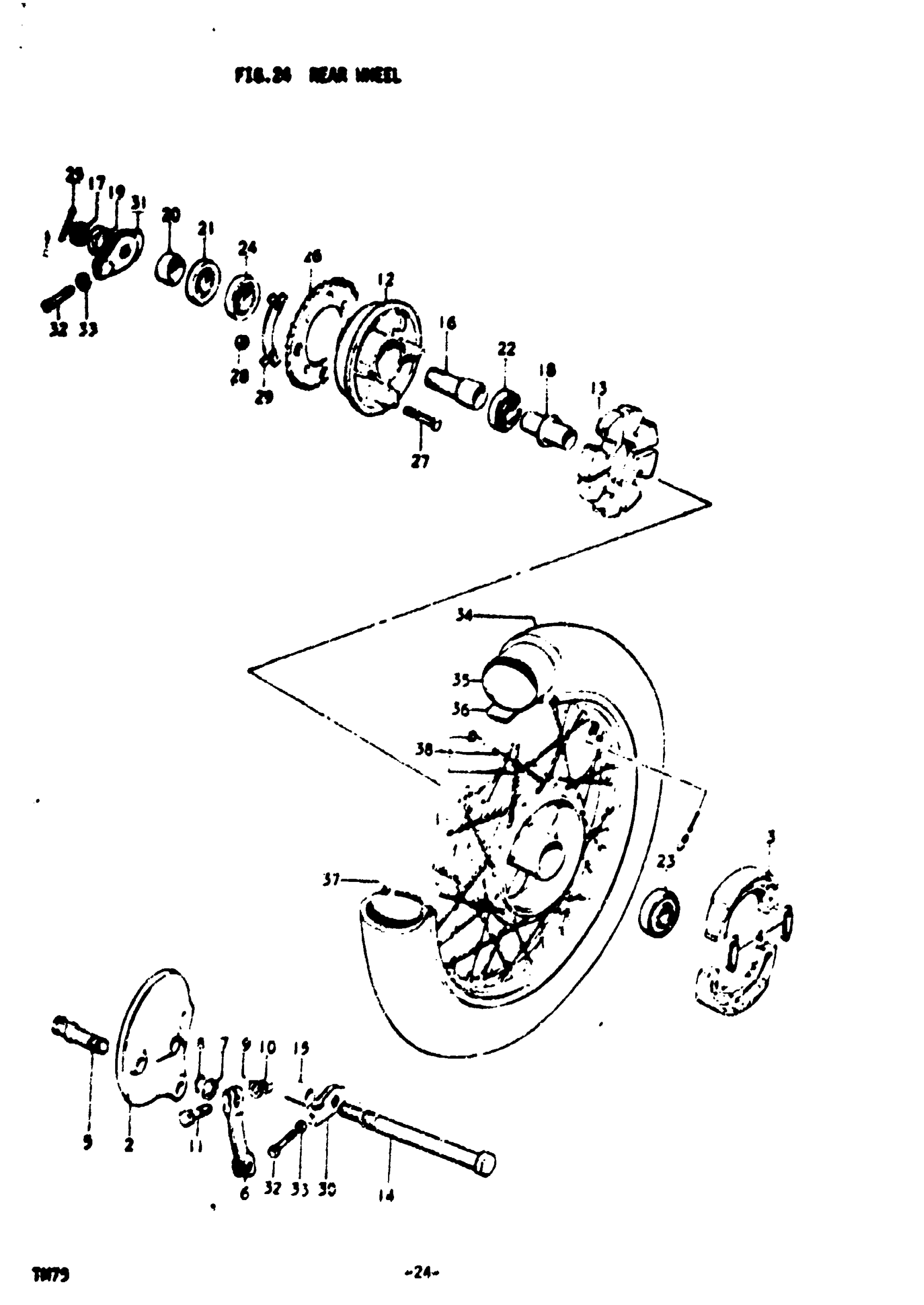

Suzuki TM75 (1976) REAR WHEEL Diagram

#

Description
Price

1

DRUM, REAR HUB

64110-26100

Unavailable

2

PANEL, REAR HUB

64210-26101

Unavailable

3

SHOE/SPRING SET | FROM 54410-01004 This part replaces 54410-01005.

54400-35860

$36.32

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

SHAFT, BRAKE CAM | L; TO 54441-01001

54441-28001

Unavailable

5

SHAFT, BRAKE CAM | M,A

54441-01002

$18.80

6

RR BRAKE LEVER This part replaces 64451-20000.

64451-20001

Unavailable

7

WASHER | 12.5x20x1

09160-12011

$1.54

8

O RING

09280-12001

$2.90

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT This part replaces 08311-11068.

08310-00067

$2.13

11

BOLT, ADJUSTER | 6x31 This part replaces 09100-06050.

09100-06150

$2.30

12

DRUM, ENGINE SPROCKET MOUNTING | L; TO 64611-26101

64611-26100

Unavailable

12

DRUM, SPROCKET MOUNTING | M,A This part replaces 64611-26101.

64611-01001

Unavailable

13

ABSORBER,RR WHL This part replaces 64651-01000.

64651-010B1

$21.50

14

AXLE,REAR This part replaces 64711-01603.

64711-35400

$28.92

15

SPACER | 12.2x22x30.5

09180-12005

Unavailable

16

SHAFT, DRUM

64761-01000

Unavailable

17

NUT This part replaces 08314-11108.

08314-3110A

$1.99

18

SPACER

64730-01000

Unavailable

19

NUT

09140-16005

$3.75

20

SPACER | 17x25x10.5

09180-17004

$6.63

21

SEAL,OIL | 25x10x6 This part replaces 09285-25001.

09285-25007

$7.05

22

BEARING This part replaces 08143-62010.

08143-6201B

$10.80

23

B1 12X37X12 BEA This part replaces 08143-63010.

08143-6301B

$19.20

24

BEARING, DRIVE SHAFT RH This part replaces 08113-62030.

09262-17023

$16.75

25

PIN This part replaces 04111-20308.

04111-2030A

$1.50

26

SPROCKET, REAR | L,M; NT:42

64511-01789

Unavailable

26

SPROCKET,REAR,N | A; NT:39 This part replaces 64511-01759.

64511-09402

$39.62

27

BOLT

09105-08001

$2.06

28

NUT | L,A This part replaces 08312-11088.

08310-00087

$2.13

28

NUT | M

09140-08010

Unavailable

29

WASHER, REAR SPROCKET

09169-08011

$2.16

30

ADJUSTER, CHAIN RH | FROM 61410-27100

61410-26000

$38.85

31

ADJUSTER, CHAIN LH | FROM 61420-27100

61420-26000

Unavailable

32

BOLT

09104-06002

Unavailable

33

.NUT This part replaces 08311-11068.

08310-00067

$2.13

34

TIRE

65100-26110

Unavailable

35

TUBE ASSY, INNER This part replaces 55200-24010.

65200-02B40

Unavailable

36

PROTECTOR,INNER This part replaces 55261-24010.

55261-24020

$3.45

37

RIM, WHEEL

55311-24020

Unavailable

38

SPOKE ASSY, REAR This part replaces 65300-24807.

65320-20300

Unavailable
