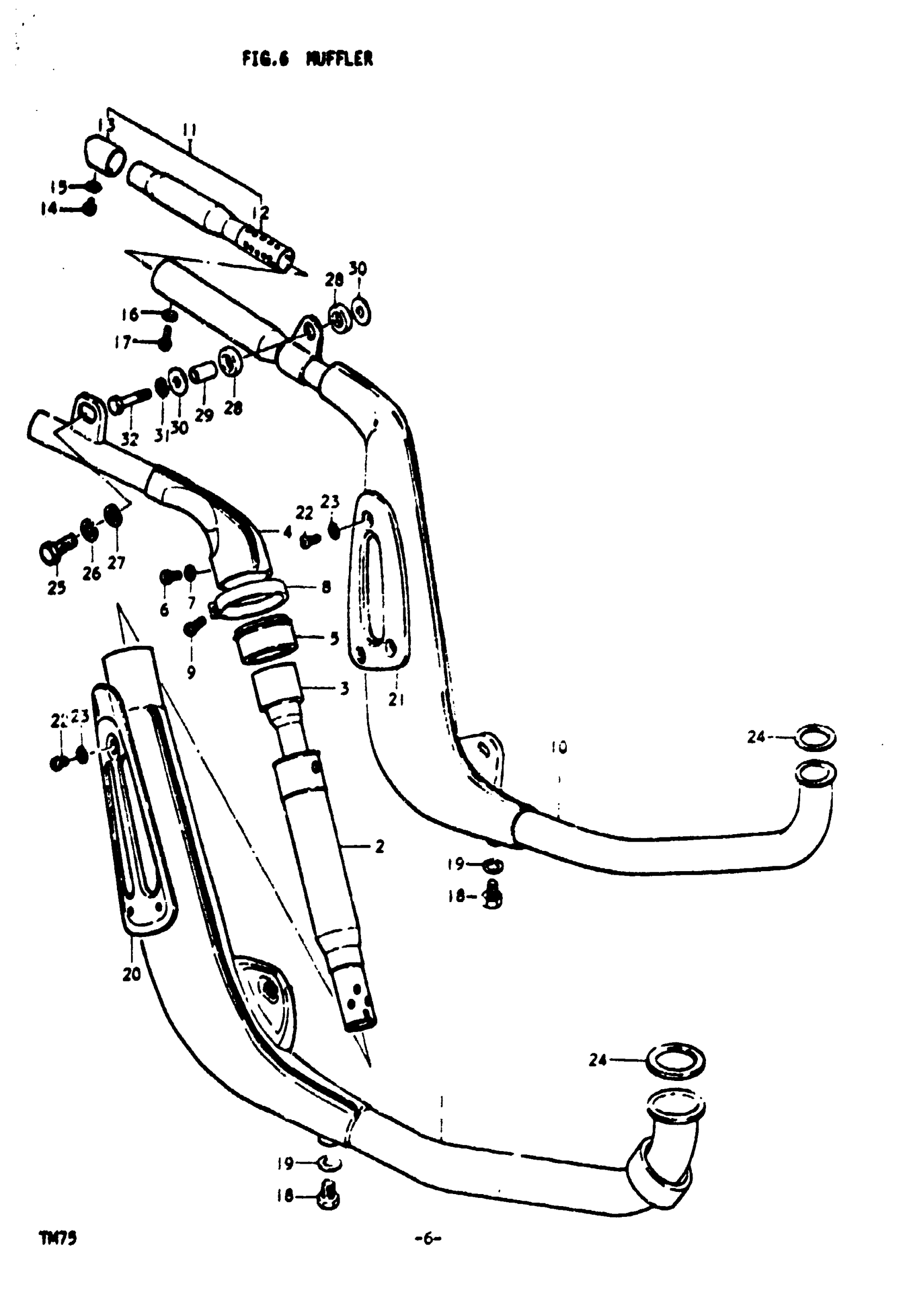

Suzuki TM75 (1976) MUFFLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | L,M; Includes Item(s) 2 - 7 This part replaces 14301-26101.

14301-26101-H01

Unavailable

2

BODY, ARRESTOR | L,M

14810-26101

Unavailable

3

TUBE, CLEAN OUT | L,M

14850-26100

Unavailable

4

PIPE, MUFFLER TAIL | L,M

14630-26100

Unavailable

5

GASKET, MUFFLER TAIL PIPE | L,M

14634-25300

Unavailable

6

FRM CVR,SCREW(6 | L,M This part replaces 09128-06011.

09128-06092

$1.92

7

GASKET, SPARK ARRESTOR | L,M

09168-06006

Unavailable

8

CLAMP, MUFFLER TAIL PIPE | L,M

09402-52601

Unavailable

9

SCREW | L,M This part replaces 02112-06258.

02112-06257

$1.78

10

NO DESCRIPTION AVAILABLE | A; Includes Item(s) 11 - 17 This part replaces 14301-26102.

14301-26103

Unavailable

11

SPARK ARRESTOR ASSY | A

14801-26600

Unavailable

12

TUBE, CLEAN OUT | A

14850-30602

$50.97

13

COTTER, MUFFLER | A

14817-16401

Unavailable

14

SCREW | A This part replaces 02111-06087.

02112-06087

$1.49

15

LOCK WASHER | A This part replaces 08321-21068.

08321-01067

$2.13

16

GASKET,MUFFLER | A; 6.2x12x1.5 This part replaces 09168-06005.

09168-06105

$2.12

17

SCREW | A This part replaces 02112-06168.

02112-06167

$1.49

18

BOLT(10X9) | 10x9 This part replaces 09100-10004.

09128-10002

$1.70

19

GASKET, DRAIN PLUG | 10x14.2x2

09168-10002

$2.13

20

COVER, MUFFLER | L,M

14781-26100

Unavailable

21

NO DESCRIPTION AVAILABLE | A This part replaces 14781-26600.

14781-26620

Unavailable

22

SCREW This part replaces 02111-06087.

02112-06087

$1.49

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

.GASKET,EXHAUST This part replaces 14181-05010.

14181-18C00

$7.22

25

BOLT | L,M This part replaces 01122-10208.

01500-1020B

$3.16

26

LOCK WASHER | L,M This part replaces 08321-21108.

08321-01107

$1.84

27

WASHER | L,M This part replaces 08322-21108.

08322-01107

$2.15

28

CUSHION | A

09320-17002

Unavailable

29

SPACER | A

09180-10047

Unavailable

30

WASHER | A; 10.5x30x1.6

09160-10022

Unavailable

31

LOCK WASHER | A This part replaces 08321-21108.

08321-01107

$1.84

32

BOLT | A This part replaces 01122-10258.

01500-10257

$3.85
