Partiron

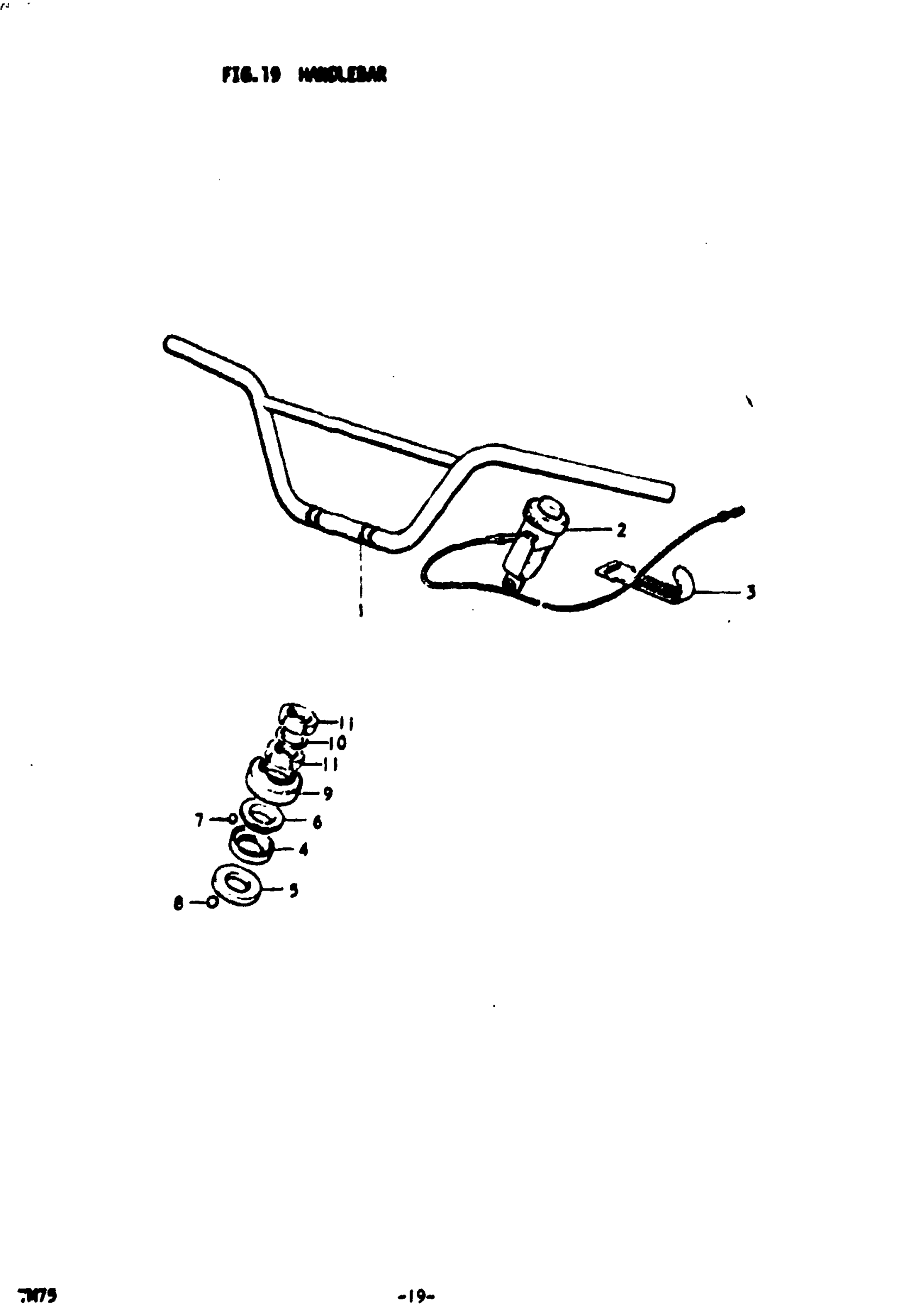

Suzuki TM75 (1976) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR | L,M This part replaces 56110-26100.

56110-26101

Unavailable

1

HANDLEBAR | A

56110-26101

Unavailable

2

SWITCH, ANGINE STOP | M,A; TO 37820-16512

37820-16511

Unavailable

3

CLAMP, LEAD WIRE | L; TO 09407-12401

09407-12401

Unavailable

4

RACE,STEERING INNER UPPER | FROM 51611-33001

51611-20002

$11.95

5

RACE, STEERING INNER LOWER | FROM 51611-33001

51611-33002

$13.81

6

RACE, STEERING OUTER UPPER | L; TO 51621-25000 USED WITH 51643-06001 This part replaces 51621-05000.

51621-25000

$12.40

6

RACE, STEERING OUTER UPPER | M,A

51621-25000

$12.40

7

STEEL BALL

06111-06003

$1.49

8

STEEL BALL | FROM 51643-05000

06111-08003

$1.49

9

DUST SEAL | FROM 51643-05000

51643-06001

Unavailable

10

WASHER | 24.5x34x2.324.5x34x2.3

09166-24001

Unavailable

11

NUT

51631-05000

Unavailable
