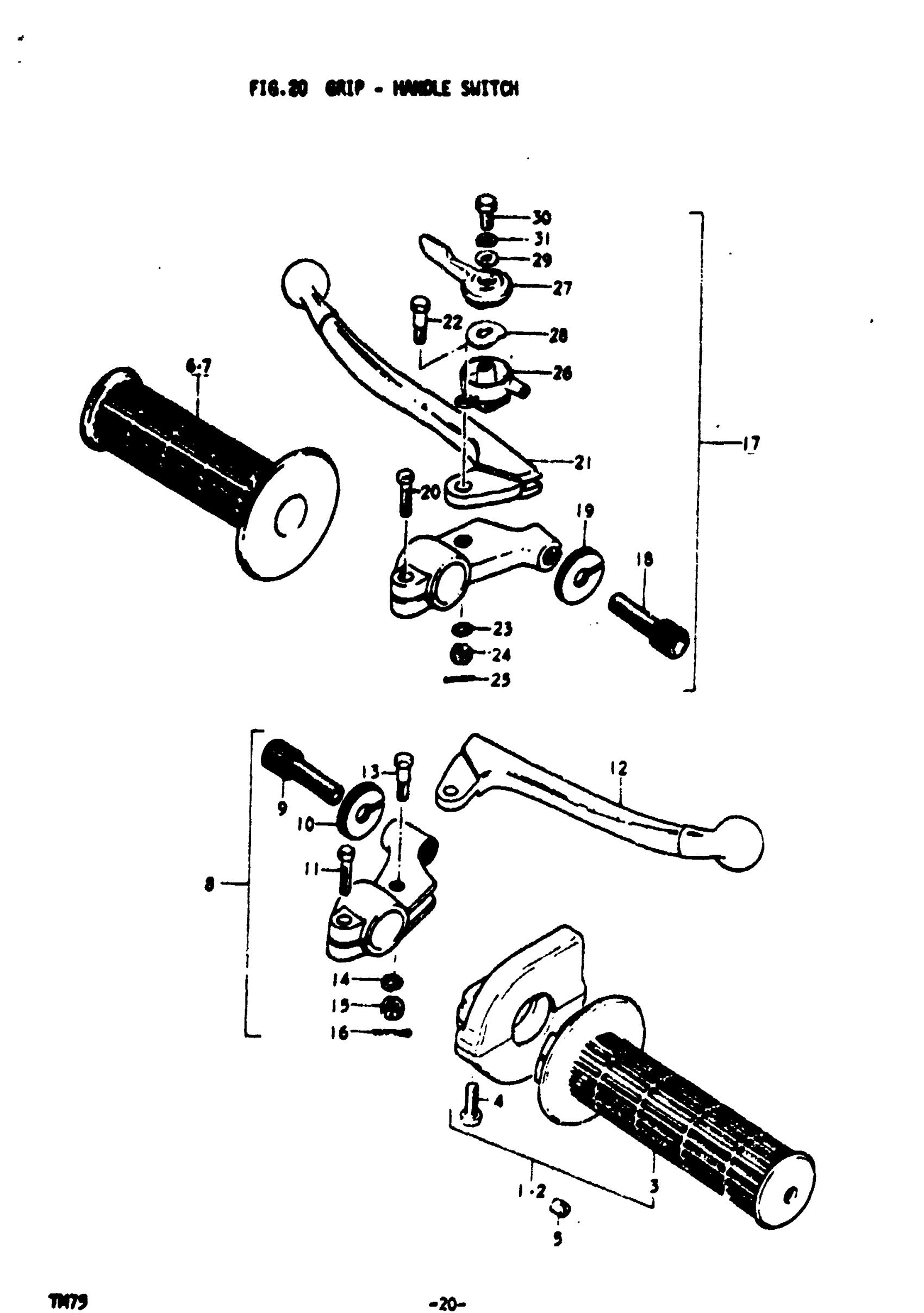

Suzuki TM75 (1976) GRIP - HANDLE SWITCH Diagram

GRIP ASSY, THROTTLE | L,M; TO 57100-26111

57100-26110

Unavailable

NO DESCRIPTION AVAILABLE | A; Includes Item(s) 3 - 4 This part replaces 57100-26111.

57100-26112

Unavailable

GRIP, THROTTLE | L,M; TO 57110-26111

57110-26110

Unavailable

SCREW | M,A This part replaces 02112-05168.

02112-05167

$1.97

PIECE, THROTTLE END

58631-07010

$3.56

GRIP LH | L,M; TO 57211-25701 This part replaces 57211-25701.

57211-27C00

$12.28

GRIP LH | A This part replaces 57211-25701.

57211-27C00

$12.28

LEVER ASSY, BRAKE | TO 57300-11011; Includes Item(s) 9 - 16 This part replaces 57300-28310.

57300-32500

Unavailable

ADJUSTER, BRAKE CABLE

57441-11010

$5.62

NUT

57442-11010

$2.79

BOLT | FROM 57451-11010 This part replaces 01112-06208.

01500-06207

$2.28

LEVER, BRAKE This part replaces 57420-18011.

57420-29400

Unavailable

BOLT This part replaces 57431-11010.

57431-11013

$6.31

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

NUT

57433-11010

$5.64

PIN This part replaces 04111-16158.

04111-1620A

$1.49

NO DESCRIPTION AVAILABLE | Includes Item(s) 18 - 31 This part replaces 57500-26110.

57500-26111

Unavailable

ADJUSTER, CABLE

57441-11010

$5.62

NUT

57442-11010

$2.79

BOLT | FROM 57451-11010 This part replaces 01112-06208.

01500-06207

$2.28

LEVER, CLUTCH | FROM 57260-18011 This part replaces 57620-31010.

57620-45010

Unavailable

BOLT, CLUTCH LEVER PIVOT

57431-31010

$9.32

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

NUT

57433-11010

$5.64

PIN This part replaces 04111-16158.

04111-1620A

$1.49

HOLDER, STARTER LEVER

58710-31600

Unavailable

LEVER, STARTER

58721-03010

Unavailable

WASHER

58722-03010

$3.71

.WASHER (6.5X16X1) This part replaces 58723-03010.

09160-06129

$2.30

BOLT This part replaces 01112-06128.

01500-06127

$1.97

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
