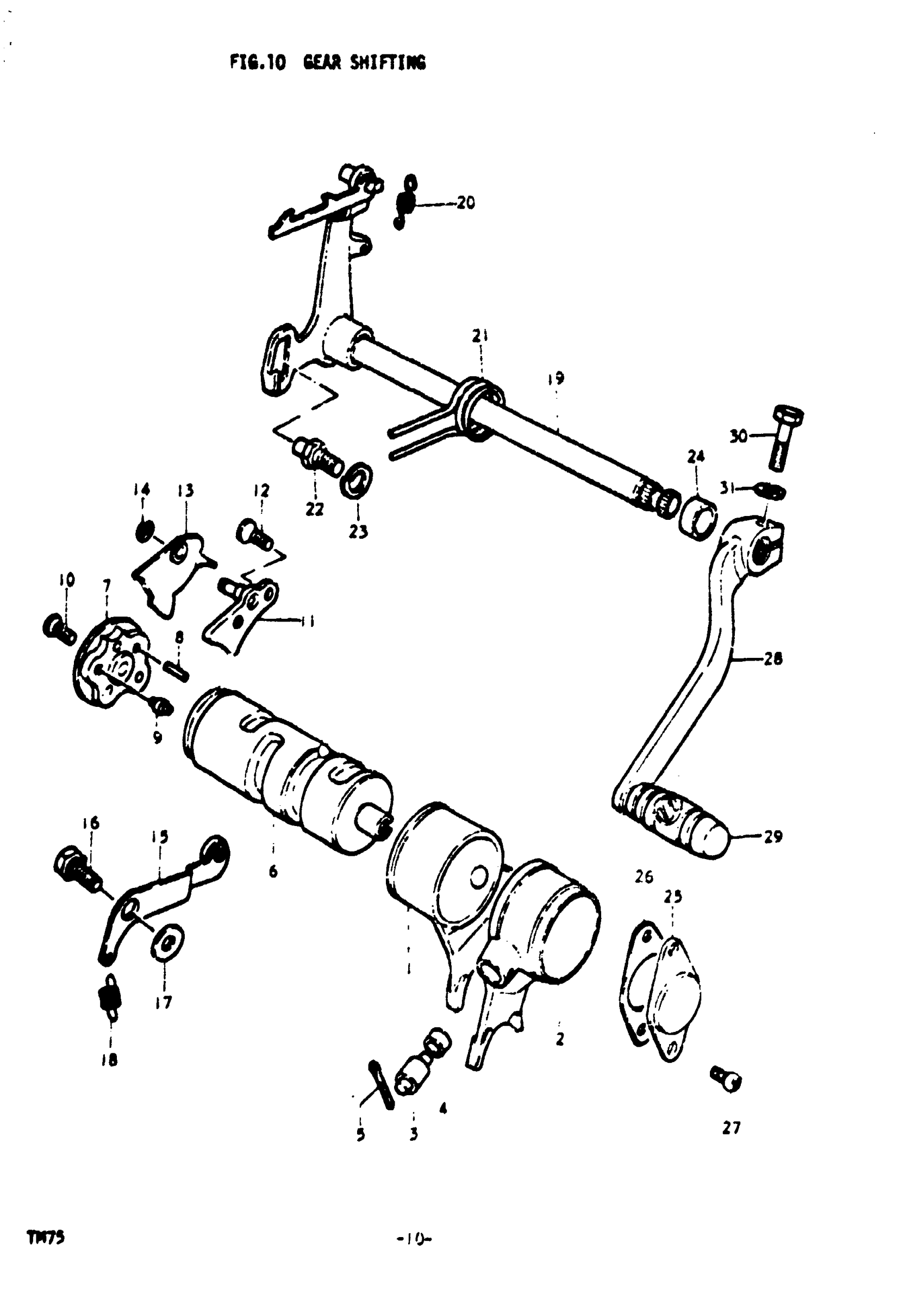

Suzuki TM75 (1976) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING (A) | L; TO 25211-25101 This part replaces 25211-26101.

25211-25101

Unavailable

1

FORK, GEAR SHIFTING (A) | M,A; SEE NOTE 1.

25211-25101

Unavailable

2

FORK, GEAR SHIFTING (B)

25221-12100

Unavailable

3

PIN, FORK GUIDE | FROM 09209-10003

09209-10002

Unavailable

4

ROLLER | 6x14x4 This part replaces 09180-06004.

09180-06086

$2.50

5

CITTER PIN This part replaces 04111-25208.

04111-2520A

$1.49

6

CAM, GEAR SHIFTING

25311-12102

Unavailable

7

PLATE, CAM STOPPER

25380-26100

Unavailable

8

PIN, SHIFTING CAM | 00:4, L:12

09261-04001

$1.72

9

PIN, SHIFTING CAM | FROM 09209-04006

09209-04012

$2.53

10

SCREW This part replaces 02122-06208.

02122-0620A

$1.49

11

GUIDE, SHIFTING CAM

25340-12101

Unavailable

12

SCREW This part replaces 02122-06168.

02122-06167

$1.49

13

PAWL, SHIFTING CAM STOPPER

25370-27100

Unavailable

14

E RING This part replaces 08332-11059.

08332-1105A

$1.78

15

STOPPER, SHIFTING CAM

25350-26100

Unavailable

16

BOLT

09111-06003

Unavailable

17

WASHER | 6.5x16x2.3

09160-06022

Unavailable

18

SPRING

09443-07014

$2.22

19

SHAFT, GEAR SHIFTING

25510-26100

Unavailable

20

SPRING, PAWL RETURN

09443-07013

$2.07

21

SPRING

09444-26008

$5.12

22

STOPPER

25671-19000

Unavailable

23

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

24

OIL SEAL (12X22X9) | 12X22X9 This part replaces 09285-12002.

09285-12006

$6.32

25

CAP, GEAR SHIFT CAM PIVOT

11451-26100

Unavailable

26

GASKET

37712-26000

Unavailable

27

SCREW This part replaces 02111-04107.

02112-04107

$1.55

28

LEVER ASSY, GEAR SHIFTING | FROM 25600-25101; Includes Item(s) 29

25600-05104

Unavailable

29

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

30

BOLT This part replaces 01112-06208.

01500-06207

$2.28

31

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13
