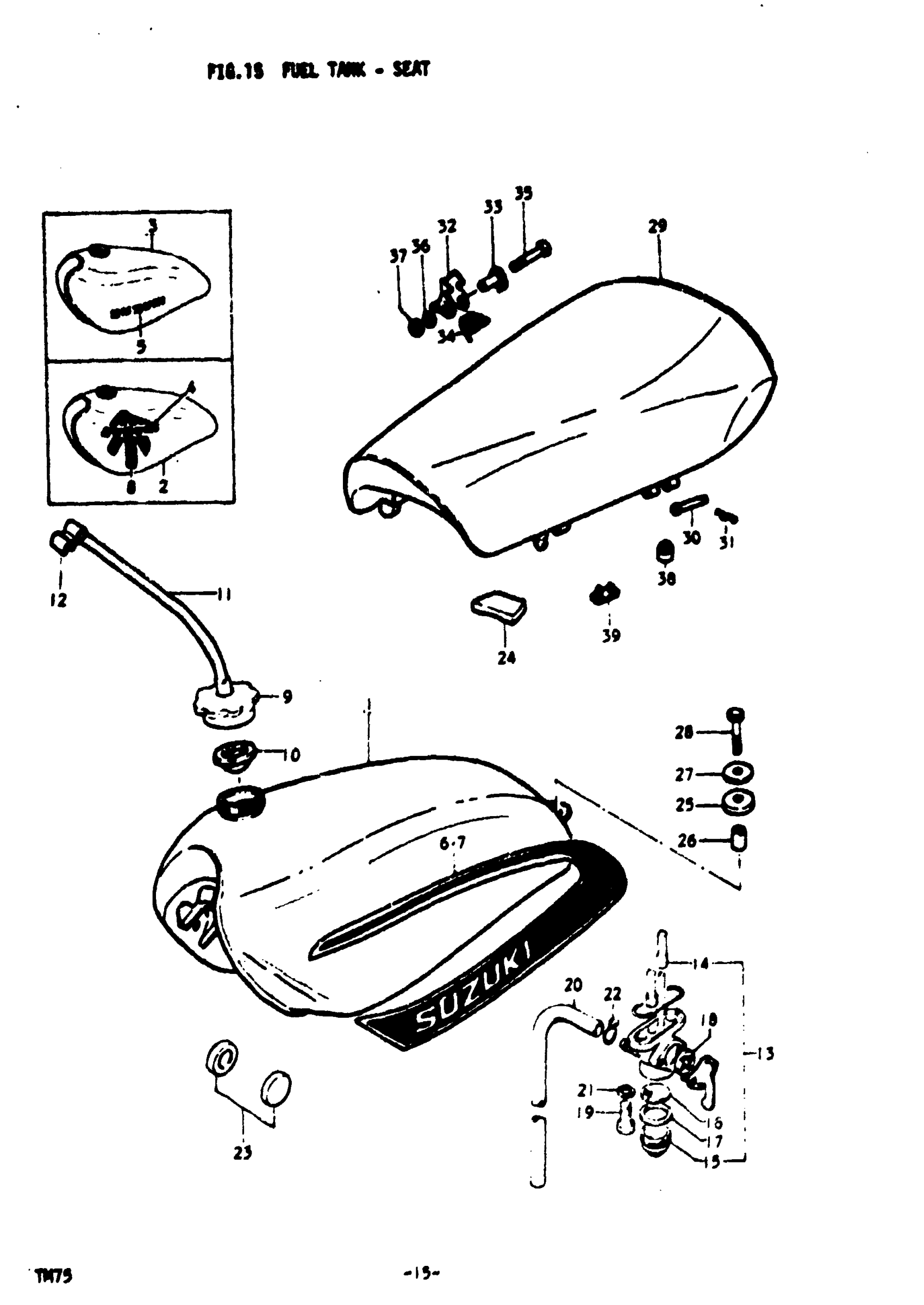

Suzuki TM75 (1976) FUEL TANK - SEAT Diagram

#

Description
Price

1

TANK, FUEL | L; TO 44110-26102-163 This part replaces 44110-26100-163.

44110-26660-163

Unavailable

2

TANK, FUEL | M This part replaces 44110-26620-163.

44110-26660-163

Unavailable

3

TANK, FUEL | A

44110-26660-163

Unavailable

4

NO DESCRIPTION AVAILABLE | M; USED WITH 68115-26620-722 This part replaces 68111-26610-019.

68111-27610-019

Unavailable

5

EMBLEM, FUEL TANK | M; USED WITH 68115-26621-722

68111-30610-019

Unavailable

5

EMBLEM, FUEL TANK | A

68111-26620-019

Unavailable

6

NO DESCRIPTION AVAILABLE | L; TO 68100-26830-722 This part replaces 68115-26100-722.

68100-26830-722

Unavailable

7

NO DESCRIPTION AVAILABLE | L; TO 68100-26830-722 This part replaces 68125-26100-722.

68100-26830-722

Unavailable

8

NO DESCRIPTION AVAILABLE | M; TO 68115-26621-722 This part replaces 68115-26620-722.

68115-26621-722

Unavailable

9

CAP, FUEL TANK | Includes Item(s) 10 - 11

44200-28300

Unavailable

10

GASKET, FUEL TANK CAP

44248-28300

Unavailable

11

HOSE,5X10X600 | 5x8.2x190 This part replaces 09343-05031.

44421-13ER0

$10.06

12

CLAMP This part replaces 44486-32100.

44486-32101

$3.65

13

COCK ASSY FUEL | L This part replaces 44300-28070.

44300-28604

Unavailable

13

COCK ASSY FUEL | M,A; Includes Item(s) 14 - 18 This part replaces 44300-28071.

44300-28604

Unavailable

14

FILTER SET This part replaces 44300-28817.

44300-28818

$10.50

15

CUP This part replaces 44347-28070.

44347-28071

$8.98

16

NET, STRAINER

44344-28070

Unavailable

17

O-RING This part replaces 44346-28070.

44346-28071

$2.40

18

GASKET,LEVER This part replaces 44341-28070.

44341-28071

$2.92

19

SCREW This part replaces 09128-06005.

02162-0616B

$2.03

20

HOSE | 5x8.2x350 This part replaces 09343-05016.

09352-50005-00B

$13.93

21

GASKET (5.8X13X1.2) | 6.2x11x1 This part replaces 09168-06010.

09168-06023

$2.35

22

CLIP, FUEL HOSE

09401-08401

$1.54

23

CUSHION, FRONT

09329-10005

$2.11

24

CUSHION, REAR

09321-05007

Unavailable

25

CUSHION, REAR

09320-12009

$2.93

26

SPACER | 8.8x12x13.5

09180-08058

Unavailable

27

WASHER, EXHAUST SUPPORT | 8.5x29x1.6 This part replaces 09160-08002.

09160-08135

$2.35

28

BOLT This part replaces 01122-08308.

01500-08307

$3.04

29

SEAT ASSY | L

45100-26100-403

Unavailable

29

SEAT ASSY | M,A; TO 45100-26600-403 This part replaces 45100-26101-403.

45100-26600-865

Unavailable

30

PIN, SEAT SUPPORT

09200-06018

$2.06

31

CLIP, SEAT SUPPORT

09385-06001

$3.10

32

CLAMP, SEAT

45211-26001

Unavailable

33

BOSS, SEAT CLAMP

45210-26001

Unavailable

34

SPRING

09448-17007

Unavailable

35

BOLT This part replaces 01122-08408.

01500-0840A

$2.60

36

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

37

NUT This part replaces 08312-11088.

08310-00087

$2.13

38

CUSHION, SEAT (2)

09321-10001

$2.61

39

CUSHION, SEAT (1)

09321-08006

$2.90
