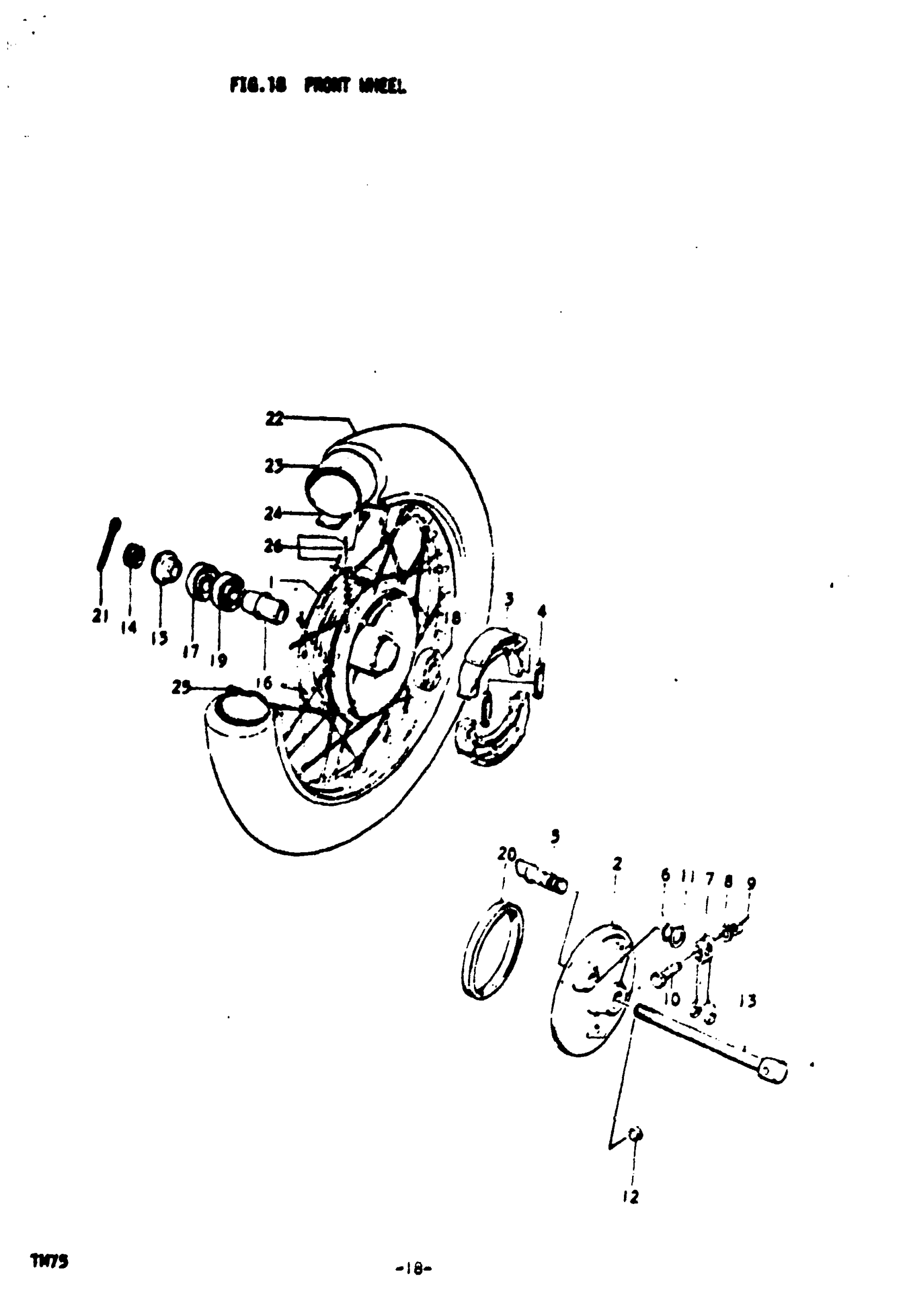

Suzuki TM75 (1976) FRONT WHEEL Diagram

#

Description
Price

1

DRUM, FRONT HUB

54110-26100

Unavailable

2

PANEL, FRONT HUB

54210-26101

Unavailable

3

SHOE/SPRING SET This part replaces 54410-01005.

54400-35860

$36.32

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

SHAFT, BRAKE CAM | L; TO 54441-01002

54441-28001

Unavailable

5

SHAFT, BRAKE CAM | M,A

54441-01002

$18.80

6

O RING

09280-12001

$2.90

7

LEVER, BRAKE CAM

54451-03002

$16.87

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

BOLT, ADJUSTER | 6x30 This part replaces 09100-06050.

09100-06150

$2.30

11

WASHER, DUST SEAL | 12.5x20x1

09160-12011

$1.54

12

PLUG, SPEEDOMETER PINION HOLE

09250-11003

$2.50

13

AXLE, FRONT This part replaces 54711-26100.

54711-04711

$33.12

14

NUT This part replaces 08314-11108.

08314-3110A

$1.99

15

SPACER, FR AXLE RH This part replaces 54740-26100.

54740-26101

$18.87

16

SPACER

54730-01000

Unavailable

17

OIL SEAL (15X31X5) | 15X31X9.5

09284-15001

$4.73

18

BEARING This part replaces 08143-63000.

08143-6300B

$15.33

19

BEARING

08113-62000

$13.63

20

OIL SEAL | L This part replaces 09285-43001.

09283-43004

$14.03

21

PIN This part replaces 04111-20308.

04111-2030A

$1.50

22

TIRE | 2.50-16 KNOBBY

55100-26110

Unavailable

23

TUBE, INNER | 2.50-16 This part replaces 55200-26110.

55200-08011

Unavailable

24

PROTECTOR | 18x16 This part replaces 55261-08010.

65261-37300

Unavailable

25

RIM, WHEEL

55311-26120

Unavailable

26

NO DESCRIPTION AVAILABLE This part replaces 55300-26820.

55320-26120

Unavailable
