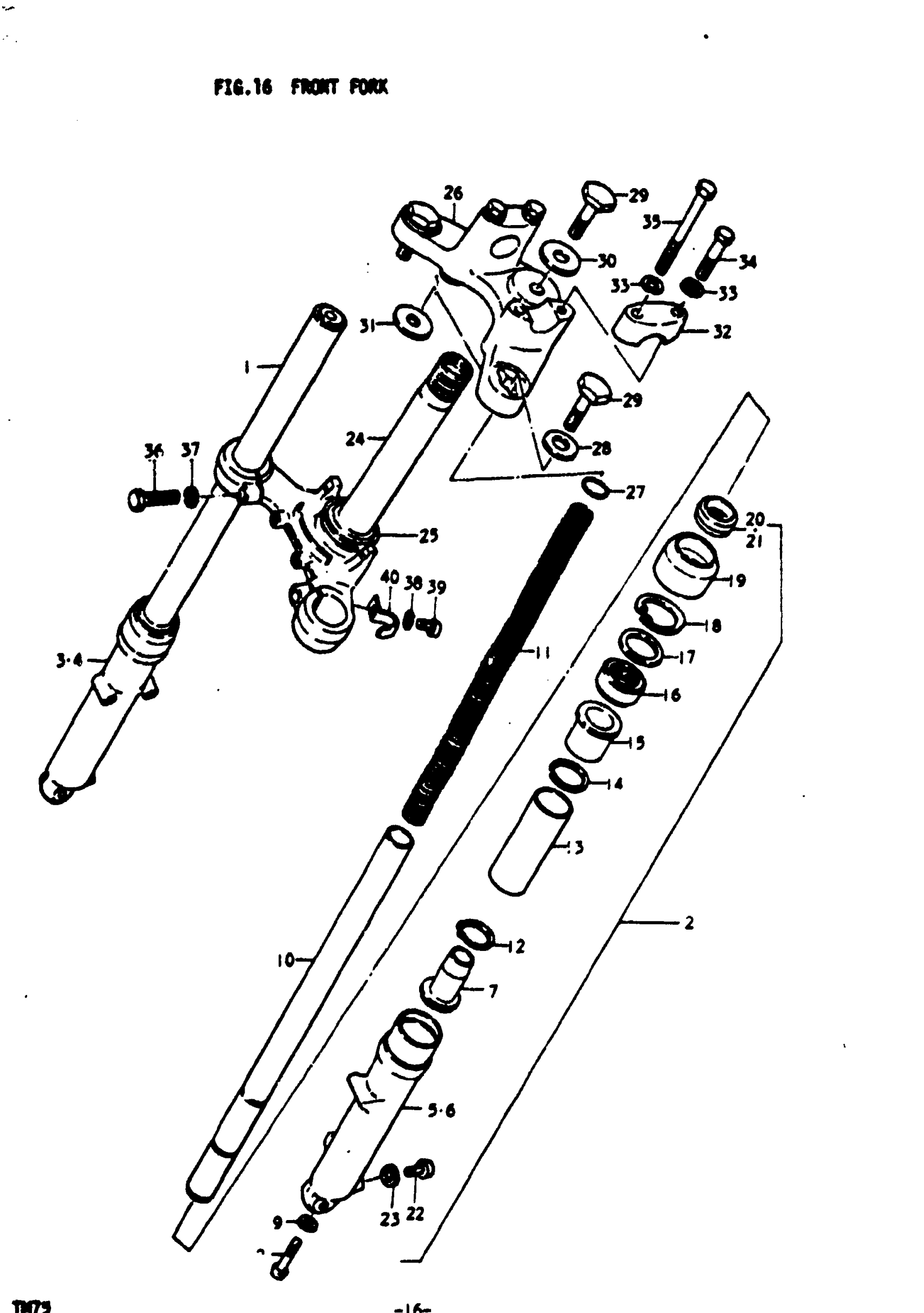

Suzuki TM75 (1976) FRONT FORK Diagram

#

Description
Price

FORK ASSY, FRONT | L,M

51100-26130

Unavailable

FORK ASSY, FRONT | A; FROM 51100-26130-019; Includes Item(s) 1 - 40

51100-26131

Unavailable

1

CUSHION ASSY, FRONT RH | L,M

51103-26130

Unavailable

1

CUSHION ASSY, FRONT RH | A

51103-26131

Unavailable

2

CUSHION ASSY, FRONT LH | L,M

51104-26130

Unavailable

2

CUSHION ASSY, FRONT LH | A

51104-26131

Unavailable

3

TUBE, OUTER RH | L,M

51130-26130

Unavailable

4

TUBE, OUTER RH | A

51130-26131

Unavailable

5

TUBE, OUTER LH | L,M

51140-26130

Unavailable

6

TUBE, OUTER LH | A

51140-26131

Unavailable

7

UNDER SEAT

51190-26130

Unavailable

8

SCREW This part replaces 02112-06258.

02112-06257

$1.78

9

GASKET

51148-26130

Unavailable

10

TUBE, INNER

51116-26130

Unavailable

11

SPRING

51171-26130

Unavailable

12

SNAP RING (B)

51119-26130

Unavailable

13

PISTON

51112-26130

Unavailable

14

SNAP RING (A)

51116-26130

Unavailable

15

GUIDE, INNER TUBE

51152-26130

Unavailable

16

OIL SEAL, FRONT This part replaces 51153-26130.

51153-13200

Unavailable

17

RING

51158-26130

Unavailable

18

CIRCLIP This part replaces 08331-41409.

08331-41406

$2.10

19

COVER, OUTER | L,M

51572-26130

Unavailable

20

DUST SEAL | L,M

51571-26130

Unavailable

21

DUST SEAL | A This part replaces 51571-26131.

51571-13200

Unavailable

22

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

23

GASKET, DRAIN

51183-33030

Unavailable

24

STEM, STEERING | FROM 51410-26030

51410-26130

Unavailable

25

RACE, STEERING OUTER LOWER

51621-33001

$16.25

26

HEAD, STEERING STEM | FROM 51311-26030

51311-26230

Unavailable

27

O RING This part replaces 51181-22010.

51181-22012

$3.73

28

WASHER This part replaces 51356-07030.

51356-46030

Unavailable

29

BOLT This part replaces 51351-20010.

51351-29400

$31.22

30

WASHER, STEM HEAD UPPER | L; 35x10.5x2.3

51356-22030

Unavailable

30

WASHER | M,A; 30x10.5x2.3 This part replaces 51356-27410.

51356-22012

$6.80

31

WASHER, STEM HEAD LOWER | 30x14.5x2.3

51357-22030

Unavailable

32

HOLDER, HANDLE, UPPER | FROM 56211-27230 This part replaces 56211-27200-019.

56211-27200-291

$17.90

33

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

34

BOLT This part replaces 01221-08357.

01204-08357

$2.09

35

BOLT This part replaces 01221-08658.

01204-08657

Unavailable

36

BOLT This part replaces 01122-10308.

01500-1030A

$3.16

37

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

38

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

39

SCREW This part replaces 02111-06087.

02112-06087

$1.49

40

CLIP WIRE

51452-05130

Unavailable
