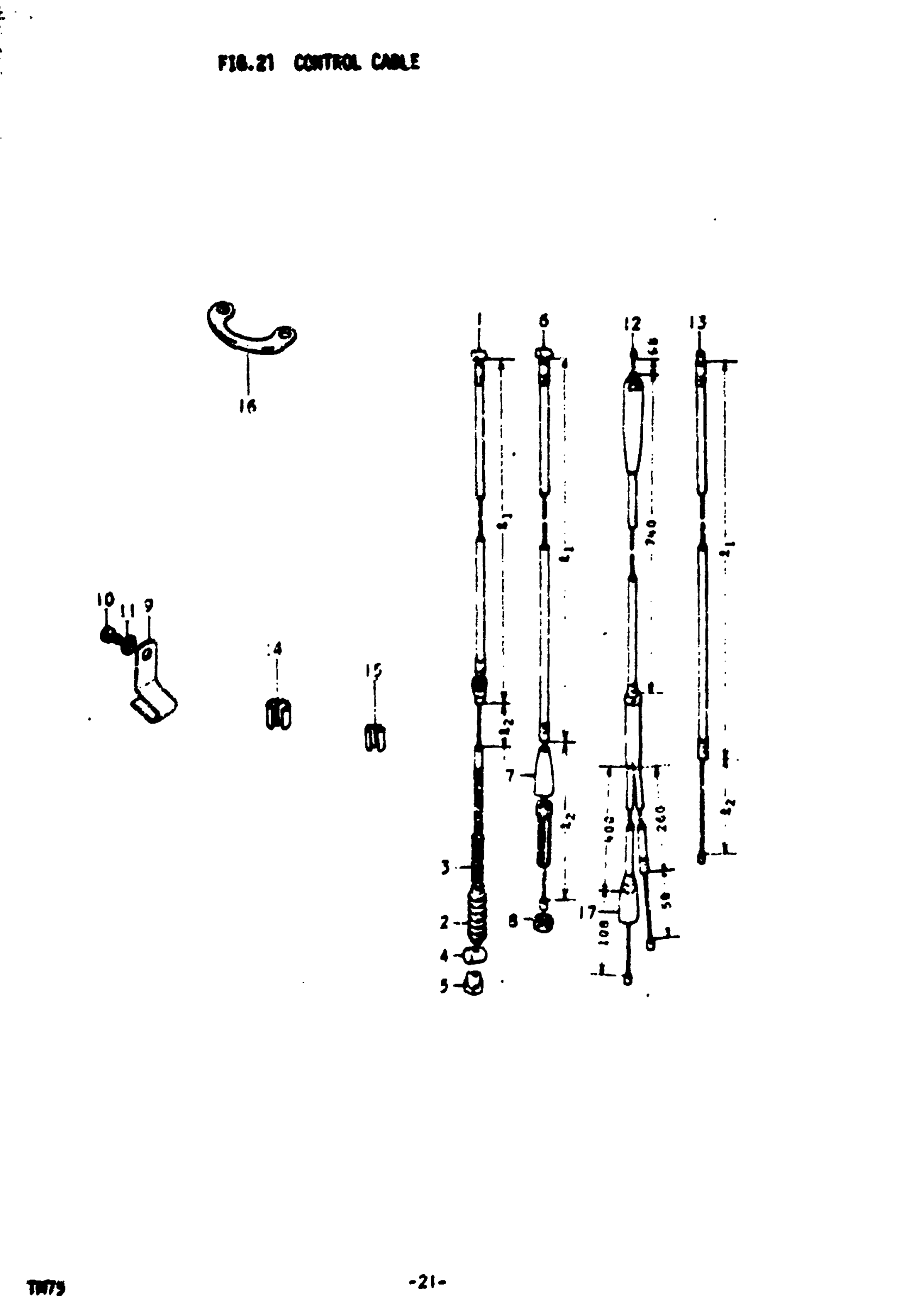

Suzuki TM75 (1976) CONTROL CABLE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | L:1000, L:66; Includes Item(s) 2 - 5 This part replaces 58100-26100.

58100-39331

Unavailable

2

DUST SEAL

09287-07001

$2.00

3

SPRING

09440-06003

$2.44

4

LEVER PIN

09209-10001

$1.49

5

NUT

09150-05101

$3.04

6

CABLE ASSY, CLUTCH | L:1000, L:108; Includes Item(s) 7 - 8

58200-26100

Unavailable

7

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

8

NUT This part replaces 08312-11088.

08310-00087

$2.13

9

CLAMP

09403-13301

Unavailable

10

BOLT This part replaces 01112-06108.

01500-06107

$2.06

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

12

CABLE ASSY, THROTTLE | FROM 58300-26100

58300-26101

Unavailable

13

CABLE,STARTER | L:930, L:66 This part replaces 58410-08710.

58410-07500

$10.75

14

CLIP, CABLE (A) | L; L:25

09408-00001

Unavailable

15

CLIP, CABLE (B)

09408-00003

Unavailable

16

GUIDE, CABLE

58621-26100

Unavailable

17

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30
