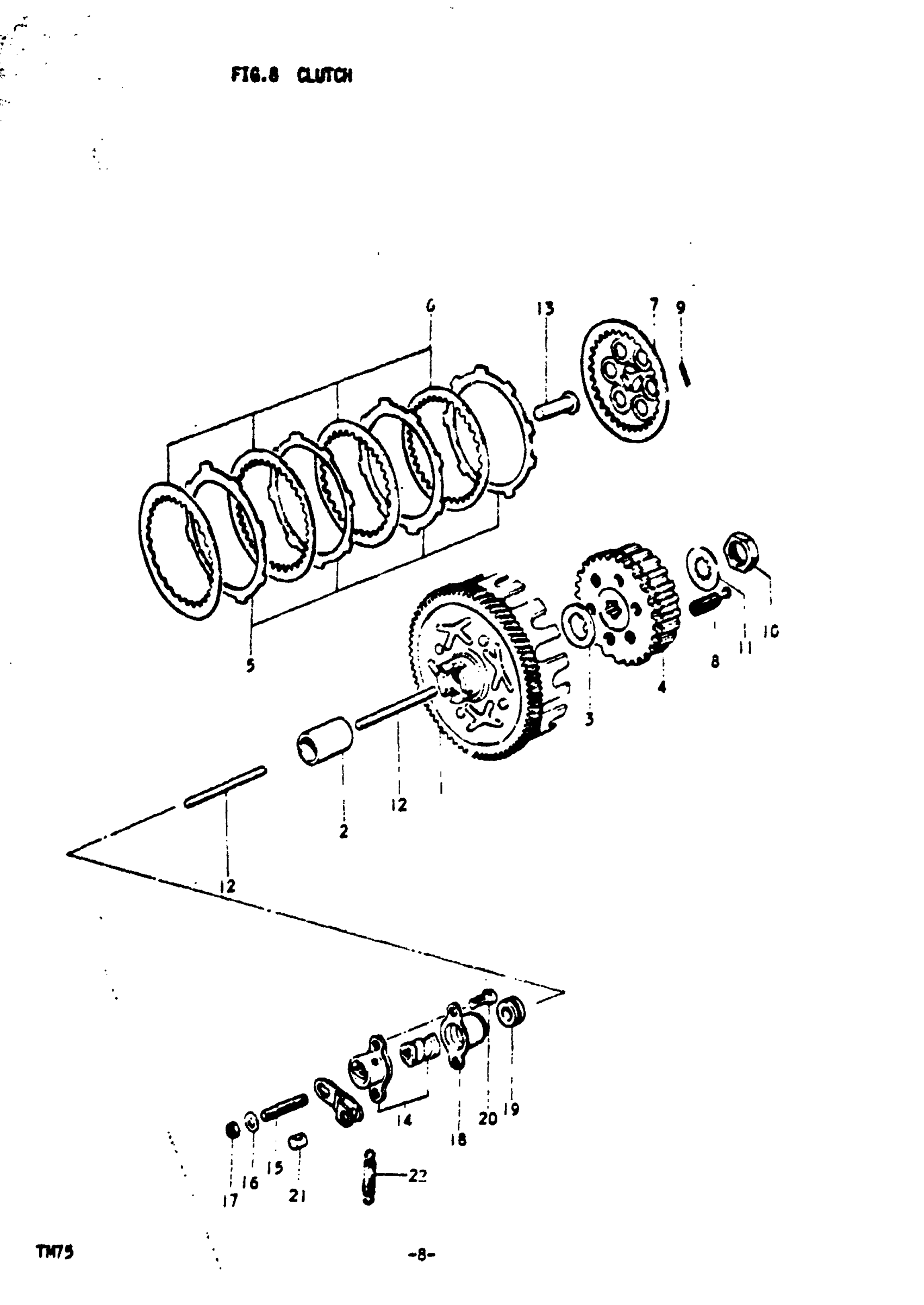

Suzuki TM75 (1976) CLUTCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | L,M This part replaces 21200-03001.

21200-03010

Unavailable

1

NO DESCRIPTION AVAILABLE | A This part replaces 21200-03002.

21200-03010

Unavailable

2

SPACER | 17x21x52

09180-17011

Unavailable

3

THRUST WASHER | 17x29x1.5

08211-17282

$2.70

4

HUB, CLUTCH CLEEVE

21411-22200

Unavailable

5

PLATE, CLUTCH DRIVE | L,M

21441-03000

Unavailable

5

PLATE,CLUTCH DR | A This part replaces 21441-12000.

21441-42G00

$17.17

6

PLATE, CLUTCH DRIVEN

21451-23000

$9.27

7

PLATE, CLUTCH PRESSURE

21460-23000

Unavailable

8

SPRING, CLUTCH

09443-12003

$2.47

9

PIN, CLUTCH SPRING

09261-02001

$1.56

10

NUT This part replaces 09140-16001.

09140-16005

$3.75

11

WASHER, CLUTCH SLEEVE HUB | 14x33x0.8

09167-17002

$1.91

12

ROD, CLUTCH PUSH | OD:5.5, L:90

23111-03001

Unavailable

13

ROD, CLUTCH RELEASE

23121-03010

Unavailable

14

SCREW ASSY, CLUTCH RELEASE | Includes Item(s) 15 - 17

23200-26000

Unavailable

15

SCREW This part replaces 09134-06001.

09134-06010

$3.12

16

WASHER, ADJUSTING SCREW | 6.5x16x1.2

09160-06019

$1.49

17

.NUT This part replaces 08311-31068.

08310-00067

$2.13

18

COVER, RELEASE SCREW

23241-23000

$11.95

19

DUST SEAL

09281-05001

$1.78

20

SCREW This part replaces 02112-05168.

02112-05167

$1.97

21

PIECE, ARM END

23222-07000

$4.52

22

SPRING, RETURN

09443-08001

$2.92
