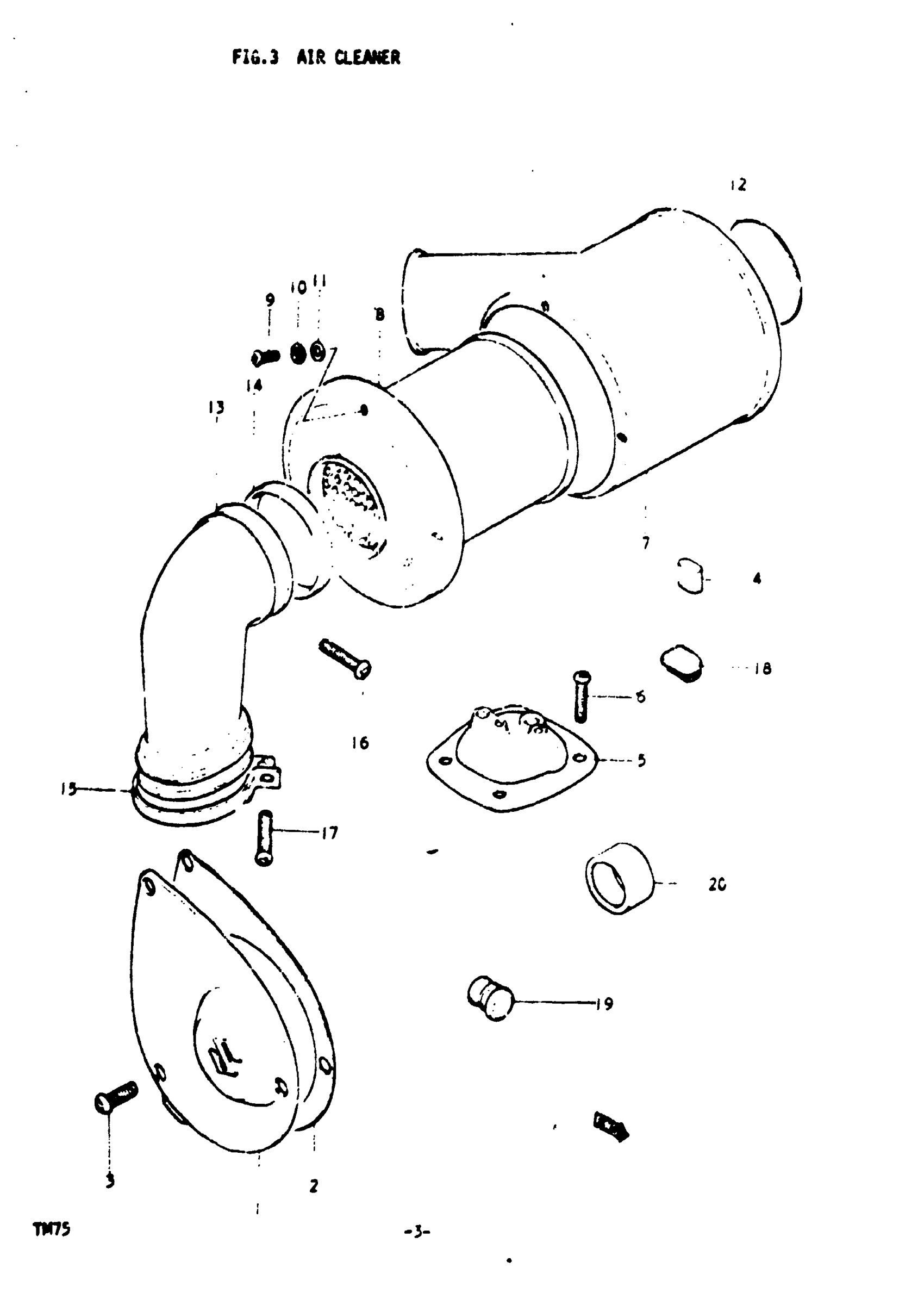

Suzuki TM75 (1976) AIR CLEANER Diagram

#

Description
Price

1

CAP, CARBURETOR INSPECTION

11383-26101

Unavailable

2

GASKET, INSPECTION CAP

11492-26000

Unavailable

3

SCREW This part replaces 02112-05168.

02112-05167

$1.97

4

CUSHION, CARBURETOR

09329-10008

Unavailable

5

COVER,CARBURETO This part replaces 11440-22500.

11440-22501

$30.84

6

SCREW This part replaces 02112-05168.

02112-05167

$1.97

7

CLEANER ASSY, AIR | Includes Item(s) 8 - 12

13700-26110-019

Unavailable

8

FILTER

13780-26610

Unavailable

9

SCREW This part replaces 02111-04087.

02112-04087

$1.49

10

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

11

WASHER This part replaces 08322-21048.

08322-01047

$1.86

12

EMBLEM

68235-26110

Unavailable

13

HOSE, AIR INLET | L,M This part replaces 13881-26000.

13881-26001

Unavailable

13

HOSE, AIR INLET | A

13881-26001

Unavailable

14

CLAMP | L; FROM 09402-00234 This part replaces 09402-54305.

09402-54303

$3.91

14

CLAMP, INLET HOSE (1) | M,A

09402-54304

Unavailable

15

CLAMP (2) This part replaces 09402-00207.

09402-58306

$4.77

16

SCREW | LM,AM,A This part replaces 02111-04208.

02112-0420A

$1.49

17

SCREW | M,A This part replaces 03211-04258.

03211-0425B

$2.70

18

CAP

09250-12002

Unavailable

19

PLUG(OD:19) This part replaces 09250-14002.

09250-14010

$2.25

20

INSULETOR, CARBURETOR

13129-26100

Unavailable
