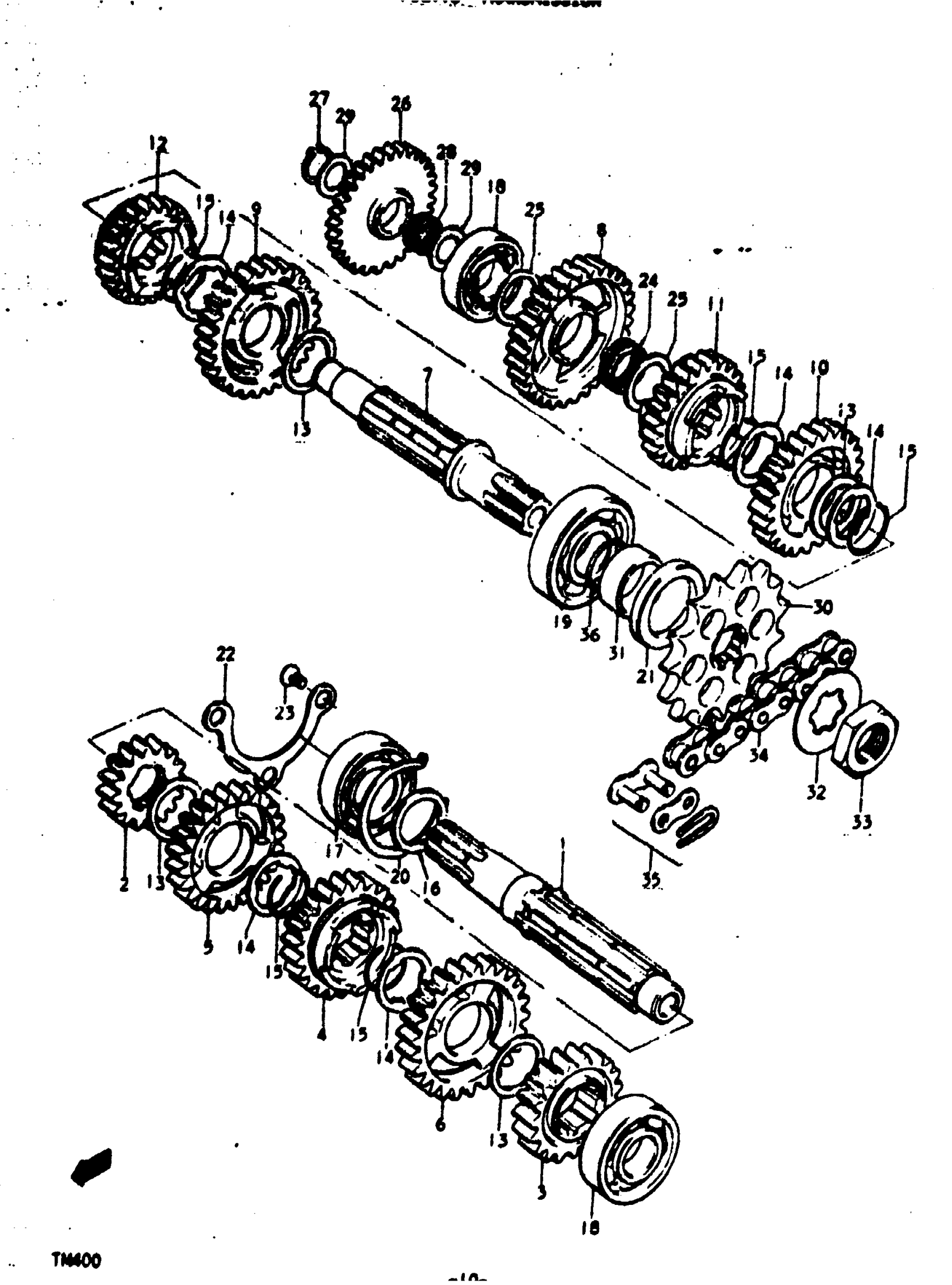

Suzuki TM400 (1975) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT

24121-16501

Unavailable

2

GEAR, 1ST DRIVE | NT:16

24211-16500

Unavailable

3

GEAR, 2ND DRIVE | NT:19

24221-16500

Unavailable

4

GEAR, 3RD DRIVE | NT:19

24231-16500

Unavailable

5

GEAR, 4TH DRIVE | NT:22

24240-16500

Unavailable

6

GEAR, 5TH DRIVE | NT:24

24250-16500

Unavailable

7

DRIVESHAFT

24131-16500

Unavailable

8

GEAR, 1ST DRIVEN | NT:30

24311-16500

Unavailable

9

GEAR, 2ND DRIVEN | NT:27

24320-16500

Unavailable

10

GEAR, 3RD DRIVEN | NT:25

24331-16501

Unavailable

11

GEAR, 4TH DRIVEN | NT:25

24341-16500

Unavailable

12

GEAR, 5TH DRIVEN | NT:21

24351-16500

Unavailable

13

THRUST WASHER | 25x32x1

08211-25321

$3.27

14

WASHER LOCK (25.1X31X1.0) | 22x32x1 This part replaces 09167-25006.

09167-25012

$3.70

15

CIRCLIP

09380-25006

Unavailable

16

WASHER | 25x34x3

09160-25011

Unavailable

17

B1 25X52X15 BEA This part replaces 08142-62050.

08142-62057

$30.82

18

BEARING, DRIVE SHAFT LH This part replaces 08113-62040.

09262-20069

$23.28

19

BEARING, RH (22X56X16) This part replaces 09262-22006.

09262-22025

$57.67

20

RING

09381-52006

Unavailable

21

OIL SEAL, DRIVESHAFT

09283-32003

$7.31

22

HOLDER, COUNTERSHAFT BEARING

24741-16500

Unavailable

23

SCREW This part replaces 02122-06128.

02122-06127

$1.84

24

BEARING, FIRST DRIVEN GEAR

09263-20011

Unavailable

25

WASHER, FIRST DRIVEN GEAR | 20x30.5x1

09160-20004

Unavailable

26

GEAR, KICK STARTER IDLE | NT:27

26261-16500

Unavailable

27

CIRCLIP, IDLE GEAR

09380-17001

$1.98

28

BEARING, IDLE GEAR

09263-17004

$12.03

29

THRUST WASHER | 17x25x1

08211-17251

$2.83

30

SPROCKET, ENGINE | NT:15

27511-18710

Unavailable

30

SPROCKET, ENGINE | NT:13OPT

27511-18700

Unavailable

30

SPROCKET, ENGINE | NT:14OPT

27511-18000

Unavailable

30

SPROCKET, ENGINE | NT:16OPT

27511-18720

Unavailable

30

SPROCKET, ENGINE | NT:17OPT

27511-32000

Unavailable

31

SPACER, SPROCKET | 22x32x13.4

09180-22005

Unavailable

32

WASHER, SPROCKET | 18.9x40x0.8

09167-22005

$2.11

33

NUT, SPROCKET

09140-22003

Unavailable

34

CHAIN ASSY, DRIVE | R,JR,J

27600-16510

Unavailable

34

CHAIN ASSY, DRIVE | K,LK,L This part replaces 27600-32110.

27600-16410

Unavailable

34

CHAIN ASSY, DRIVE | MM; Includes Item(s) 35 - 35 This part replaces 27600-30110.

27600-16410

Unavailable

35

JOINT, CHAIN | R,J This part replaces 27620-16410.

27620-30110

Unavailable

35

JOINT, CHAIN | K,L,M

27620-30110

Unavailable

36

O RING, DRIVESHAFT

09280-22003

$1.72
