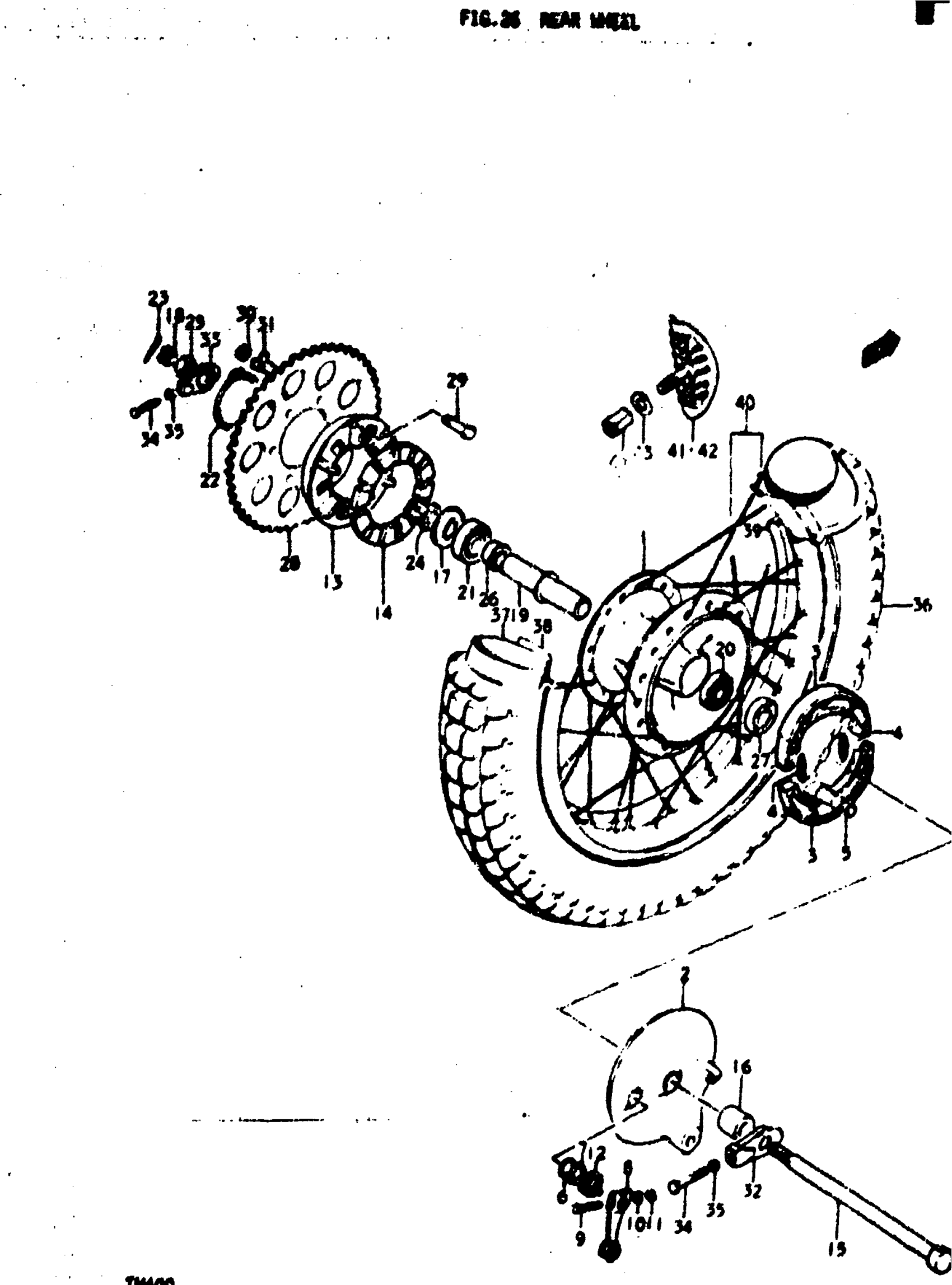

Suzuki TM400 (1975) REAR WHEEL Diagram

#

Description
Price

1

DRUM, REAR HUB

64110-16500

Unavailable

2

PANEL, REAR HUB | R,J,K;TO64210-16501

64210-16500

Unavailable

2

PANEL, REAR HUB | L,M

64210-16501

Unavailable

3

SHOE SET, REAR BRAKE | R,J,K;TO54410-08002 This part replaces 54410-08001.

64400-02830

$55.17

3

SHOE SET, REAR BRAKE | L,M This part replaces 54410-08002.

64400-02830

$55.17

4

SPRING, BRAKE SHOE

55420-30000

$4.48

5

CAM, BRAKE | R,J,K,L;TO54440-08001

54440-30001

Unavailable

5

CAM, REAR BRAKE | M This part replaces 54440-08001.

54440-08004

$27.62

6

O RING

09280-19001

$1.49

7

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

$2.56

8

NO DESCRIPTION AVAILABLE This part replaces 64451-30000.

64451-30001

Unavailable

9

BOLT This part replaces 01112-06408.

01500-0640B

$2.62

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

.NUT This part replaces 08311-11068.

08310-00067

$2.13

12

SPRING This part replaces 09448-30001.

09448-30001-XC0

Unavailable

13

DRUM, SPROCKET, MOUNTING

64610-16500

Unavailable

14

ABSORBER, HUB SHOCK

64650-16520

Unavailable

15

AXLE, REAR | R,J

64711-16500

Unavailable

15

NO DESCRIPTION AVAILABLE | K,L,M This part replaces 64711-32100.

64711-32101

Unavailable

16

SPACER,EXLE RH | R,J;15.2x26x20

09180-15014

Unavailable

16

SPACER, EXLE RH | K,L,M;15.2x26x16

09180-15028

Unavailable

17

SPACER, EXLE LH

64750-30000

Unavailable

18

NUT, AXLE

09141-14001

$4.60

19

SPACER, HUB BEERING

64730-30000

Unavailable

20

BEARING (15X42X13) This part replaces 08113-63020.

09262-15027

$23.39

21

BEARING This part replaces 08123-63040.

08123-6304B

$24.07

22

CIRCLIP This part replaces 08331-11628.

08331-31629

$7.42

23

PIN This part replaces 04111-30408.

04111-3040A

$1.59

24

SPACER, CHAIN ADJUSTER | R,JK,L,M

64791-30000

Unavailable

25

NUT | R,JK,L,M This part replaces 09140-24002.

09140-24010

Unavailable

26

RETAINER, HUB BEARING

64733-30000

Unavailable

27

OIL SEAL

09284-26001

Unavailable

28

SPROCKET, REAR | R,J;NT;39,OPT

64511-30000

Unavailable

28

SPROCKET,RR 40T | NT:40 This part replaces 64511-30700.

64511-30701

Unavailable

28

SPROCKET, REAR | R,J;NT:41,OPT

64511-30710

Unavailable

29

BOLT, SPROCKET

09105-08001

$2.06

30

NUT

09140-08010

Unavailable

31

WASHER This part replaces 09169-08010.

09169-08011

$2.16

32

ADJUSTER, CHAIN | R,J This part replaces 61410-30000.

61410-30003

Unavailable

33

ADJUSTER, CHAIN LH | R,JK,L,M This part replaces 61420-30001.

61420-30002

Unavailable

34

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

35

NUT This part replaces 08312-11088.

08310-00087

$2.13

36

TIRE, REAR | 4.00-18

65100-16570

Unavailable

37

TUBE, INNER | 4.00-18

65200-16570

Unavailable

38

PROTECTOR, INNER TUBE

65261-16571

Unavailable

39

RIM, WHEEL | R,J;1.858x18

65311-16500

Unavailable

39

RIM, WHEEL | K

65311-28322

Unavailable

39

RIM, WHEEL | L;2.158x18

65311-30400

Unavailable

39

RIM, WHEEL | M;2.158x18

65311-30421

Unavailable

40

SPOKE ASSY, REAR This part replaces 65300-16828.

65320-16520

Unavailable

41

STOPPER, BEAD | R,J,K;1.858 This part replaces 65270-30000.

65270-43D00

$58.75

42

STOPPER, BEAD | L,M;2.158

65270-40000

Unavailable

43

WASHER This part replaces 08322-21088.

08322-01087

$2.13

44

NUT, BEAD STOPPER

09159-08016

Unavailable
