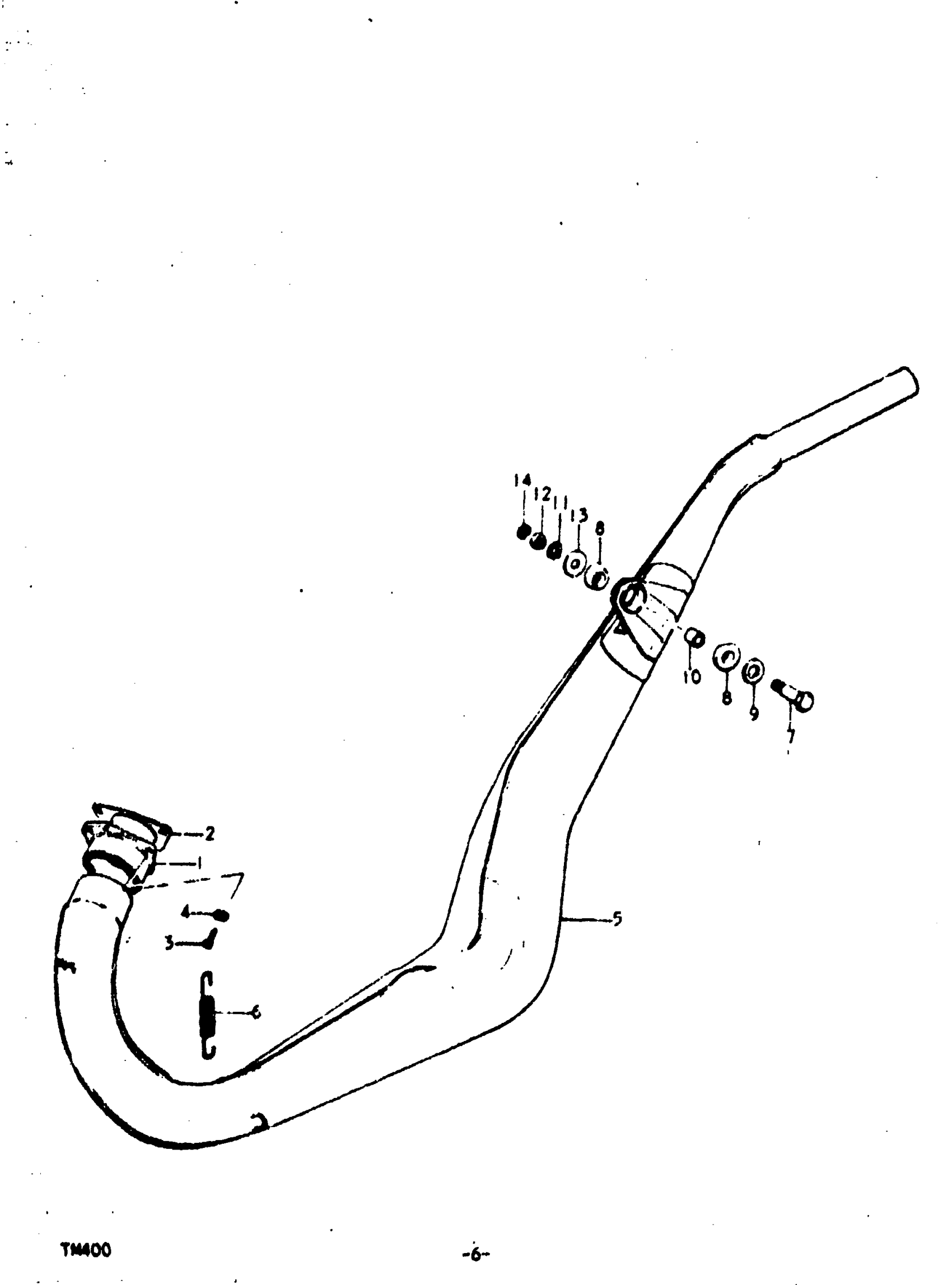

Suzuki TM400 (1975) MUFFLER Diagram

#

Description
Price

1

FLANGE, EXHAUST PIPE | R,J,K

14170-16500

Unavailable

2

NO DESCRIPTION AVAILABLE | R,J,K This part replaces 14181-16500.

14181-16501

Unavailable

3

SCREW | R,J,K This part replaces 02112-06208.

02112-06207

$1.78

4

LOCK WASHER | R,J,K This part replaces 08321-21068.

08321-01067

$2.13

5

NO DESCRIPTION AVAILABLE | R,J This part replaces 14310-16500.

14300-32810

Unavailable

5

MUFFLER | K

14310-16600

Unavailable

6

SPRING, MUFFLER FITTING | R,JK

09443-11002

$3.10

7

BOLT, MUFFLER SUPPORT | R,J

09111-08009

Unavailable

7

BOLT, MUFFLER SUPPORT | K

09111-08011

Unavailable

8

CUSHION, MUFFLER SUPPORT | R,J

09320-12012

Unavailable

8

CUSHION, MUFFLER SUPPORT | K

09320-12018

Unavailable

9

WASHER, MUFFLER SUPPORT | R,J; 6.5x28x3.2

09160-08018

Unavailable

9

WASHER | K; 8.7x22x2 This part replaces 09160-08030.

09160-08128

$2.80

10

SPACER (8.2X12.5X23.5) | K; 8.2x12.5x23.5K; 8.2x12.5x23.5 This part replaces 09180-08057.

09180-08227

$2.06

11

.LOCK WASHER | R,J This part replaces 08321-21088.

08321-01087

$2.13

12

NUT | R,J,K This part replaces 08312-31088.

08310-00087

$2.13

13

WASHER | R,J,K This part replaces 08322-11128.

08322-01127

$1.84

14

CIRCLIP | R,J This part replaces 08332-11068.

08332-1106A

$1.49
