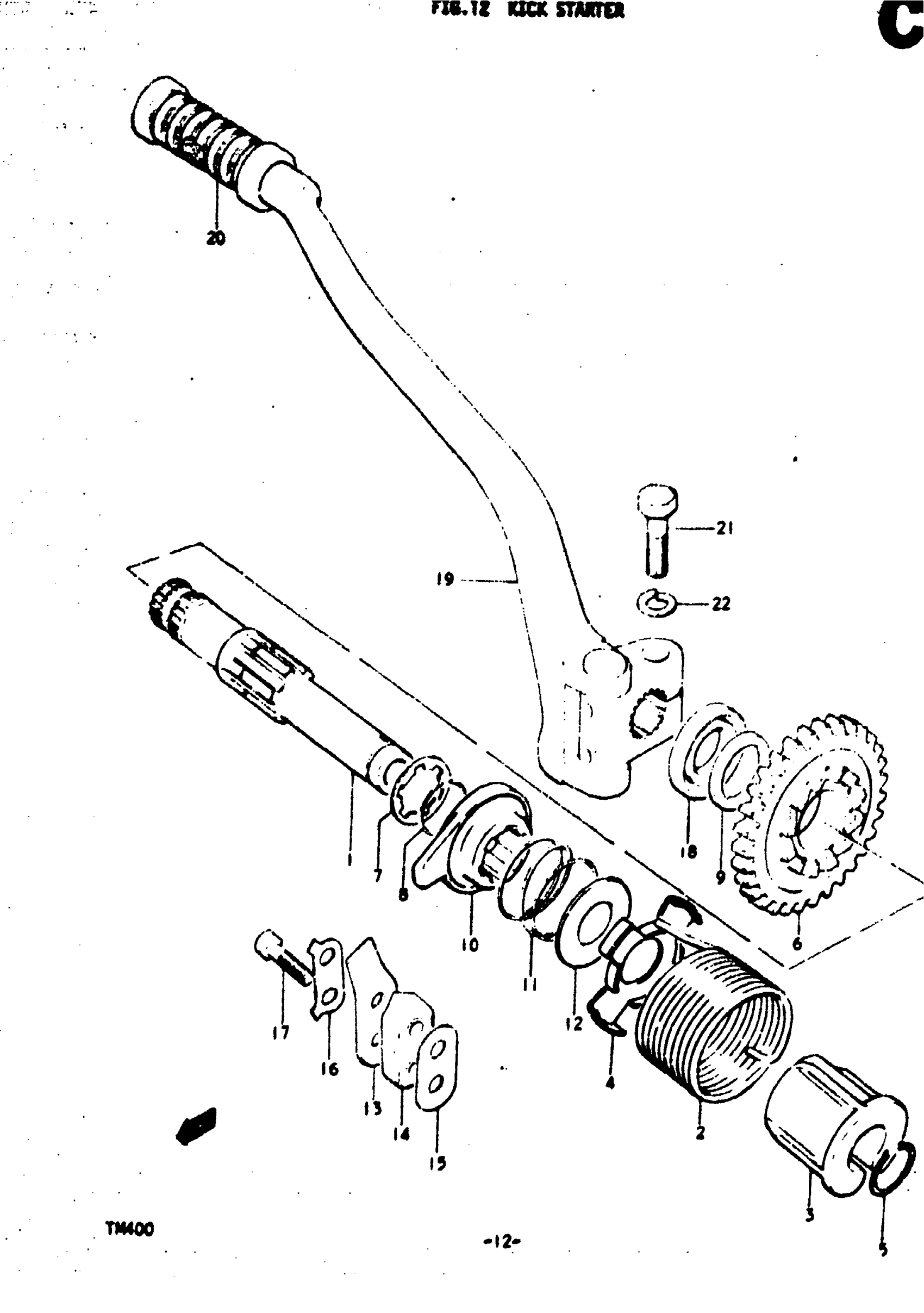

Suzuki TM400 (1975) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER | R;~F.NO.10747

26211-16500

Unavailable

1

SHAFT, KICK STARTER | R,J,K,L;TO26211-16503

26211-16502

Unavailable

1

NO DESCRIPTION AVAILABLE | M This part replaces 26211-16503.

26211-16504

Unavailable

2

SPRING, STARTER SHAFT

09448-45003

$6.53

3

GUIDE, SHAFT SPRING This part replaces 26221-16501.

26221-30531

Unavailable

4

HOLDER, SPRING | F.NO.15384~

26222-16500

Unavailable

5

CIRCLIP, SHAFT

09380-17001

$1.98

6

GEAR, KICK STARTER DRIVE | NT:27

26241-16500

Unavailable

7

WASHER, DRIVE GEAR | 18.5x29x1

09167-22007

Unavailable

8

CIRCLIP, DRIVE GEAR

09380-22003

$1.92

9

THRUST WASHER, DRIVE GEAR | 20x29x3

09160-20008

Unavailable

10

STARTER, KICK This part replaces 26231-30000.

26231-22A10

$63.88

11

SPRING, KICK STARTER

09440-32002

$2.27

12

THRUST WASHER | 17x34x1.5

08211-17342

$2.72

13

GUIDE, KICK STARTER

26232-16500

Unavailable

14

STOPPER, KICK STARTER

26250-16500

Unavailable

15

WASHER, STOPPER

09169-06009

Unavailable

16

WASHER, GUIDE BOLT

09169-06008

Unavailable

17

BOLT This part replaces 01112-06258.

01500-06257

$1.97

18

OIL SEAL (20X37X7) | 18.8x37x7

09283-20025

$5.64

19

LEVER ASSY, KICK STARTER | R,J,K,L;TO26300-16503 This part replaces 26300-16502.

26300-16503

Unavailable

19

LEVER ASSY, KICK STARTER | M; Includes Item(s) 20

26300-16503

Unavailable

20

RUBBER,KICK STA This part replaces 26352-16401.

26352-16402

$3.56

21

BOLT This part replaces 01122-10308.

01500-1030A

$3.16

21

BOLT | R;~F.NO.10747 This part replaces 01122-08308.

01500-08307

$3.04

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

22

.LOCK WASHER | R;~F.NO.10747 This part replaces 08321-21088.

08321-01087

$2.13
