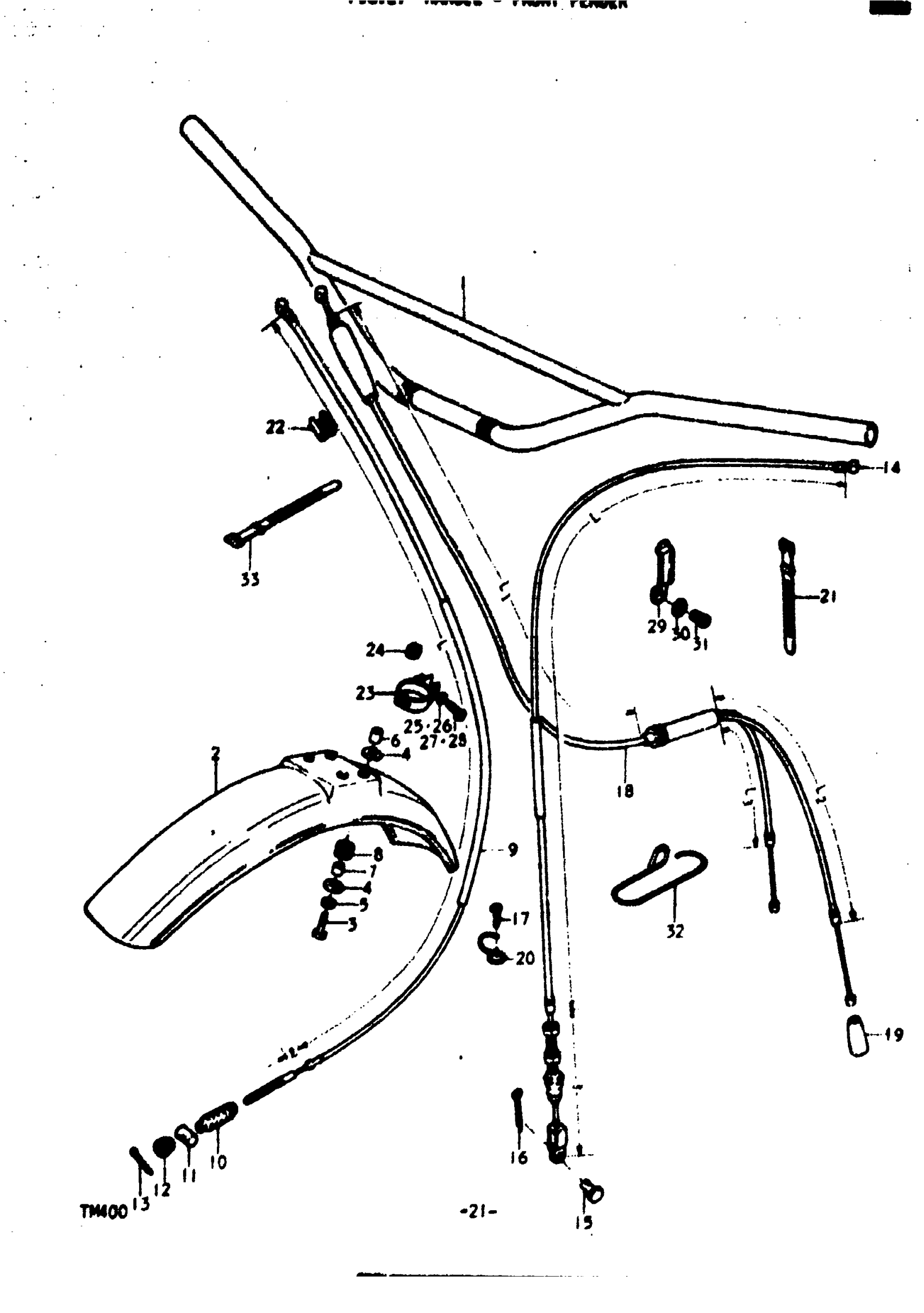

Suzuki TM400 (1975) HANDLEBAR - FRONT FENDER Diagram

#

Description
Price

1

HANDLEBAR | R,J,K,L; TO 56110-28301

56110-30000

Unavailable

1

HANDLEBAR | M

56110-28301

Unavailable

2

FENDER, FRONT | J; TO 53111-28300-163 This part replaces 53111-30600-163.

53111-28300-163

Unavailable

2

FENDER, FRONT | R; TO 53111-28300-184

53111-30600-184

Unavailable

2

FENDER, FRONT | K,L,M

53111-28300-163

Unavailable

2

NO DESCRIPTION AVAILABLE | R This part replaces 53111-28300-184.

53111-28300-13L

Unavailable

3

BOLT | R,J This part replaces 01112-06408.

01500-0640B

$2.62

3

BOLT | K,L,M This part replaces 01112-06258.

01500-06257

$1.97

4

WASHER (6.5X24X1.2) | 6.5x24x1.2 This part replaces 09160-06002.

09160-06114

$2.03

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

SPACER, TENDER UPPER | R; 8.1x12x15

09180-08058

Unavailable

7

SPACER | 6.5x10.3x13.5 This part replaces 09180-06046.

09180-06292

$2.47

8

CUSHION, TENDER

09320-10003

$2.38

9

CABLE ASSY, BRAKE | L:1100, :45; Includes Item(s) 10 - 12

58100-16500

Unavailable

10

BOOT, CABLE

09287-05001

Unavailable

11

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

12

.NUT This part replaces 09150-06001.

09150-06010

$3.10

13

COTTER PIN | R,J This part replaces 04111-20208.

04111-2020A

$1.49

13

.COTTER PIN | K,L,M This part replaces 04111-20158.

04111-2015A

$1.49

14

CABLE,CLUTCH | R,J; L:940, L:136.5 TO 58200-32100 This part replaces 58200-16501.

58200-32103

Unavailable

14

CABLE,CLUTCH | K,L,M; L:980, L:136.5 This part replaces 58200-32100.

58200-32103

Unavailable

15

PIN, CLUTCH CABLE

09200-06011

Unavailable

16

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

17

SCREW | R,J,K,L This part replaces 02112-06168.

02112-06167

$1.49

18

NO DESCRIPTION AVAILABLE | K,L,M; L1:850, L2:355 L3:200 This part replaces 58300-32100.

58300-32101

Unavailable

18

CABLE,THROTTLE | J; L1:710, L2:360, L3:198 This part replaces 58300-32000.

58300-32004

Unavailable

18

CABLE ASSY, THROTTLE | R

58300-16500

Unavailable

19

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

20

CLIP, CLUTCH CABLE | R,J,K,L; TO 51455-31000

36619-28000

Unavailable

20

CLIP | M This part replaces 51455-31000.

51455-31010

Unavailable

21

CLAMP, BRAKE CABLE | R,J

09410-00032

Unavailable

22

CLIP, CABLE | R,J

09408-00001

Unavailable

23

GUIDE, FRONT BRAKE CABLE | K,L,M

58620-32100

Unavailable

24

CUSHION (8X22X7) | K,L,M This part replaces 09320-08013.

09320-08509

$1.93

25

LOCK WASHER | K This part replaces 08321-21048.

08321-0104A

$1.84

26

WASHER | M This part replaces 08322-21068.

08322-01067

$2.13

27

SCREW | K,L This part replaces 02111-04207.

02112-0420A

$1.49

28

SCREW | M This part replaces 02111-04168.

02112-0416A

$1.49

29

CLAMP, CLUTCH CABLE UPPER | K,L,M

09403-10302

Unavailable

30

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

31

SCREW | K,L,M This part replaces 02112-06108.

02112-06107

$1.49

32

GUIDE, FRONT BRAKE CABLE | M

58621-32100

Unavailable

33

BAND, CABLE HARNESS | M

09407-14401

$3.77
