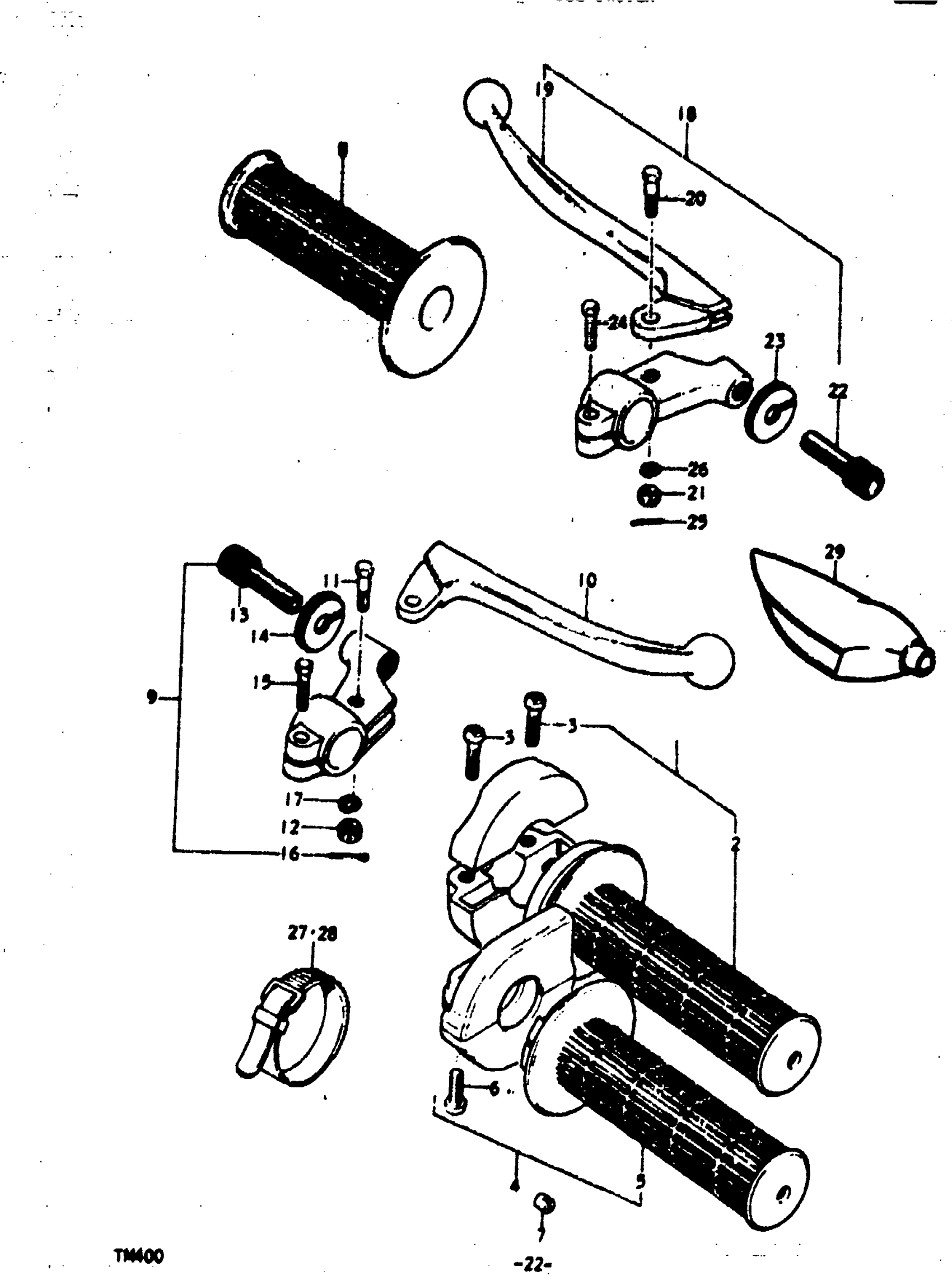

Suzuki TM400 (1975) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | R,J; Includes Item(s) 2 - 3

57100-16510

Unavailable

2

GRIP, THROTTLE | R,J

57110-16510

Unavailable

3

SCREW | R,J This part replaces 02111-05207.

02112-05207

$1.97

4

GRIP ASSY, THROTTLE | K,L,M; Includes Item(s) 5 - 6

57100-30110

Unavailable

5

NO DESCRIPTION AVAILABLE | K,L,M This part replaces 57110-30110.

57110-30111

Unavailable

6

SCREW | K,L,M This part replaces 02112-05168.

02112-05167

$1.97

7

PIECE, THROTTLE GRIP | K,L,M

58631-07010

$3.56

8

GRIP, LH | K,L,M

57211-25700

Unavailable

9

LEVER ASSY, BRAKE | R,J; FROM 57300-18010 This part replaces 57300-33010.

57300-30501

Unavailable

9

LEVER ASSY, BRAKE | K This part replaces 57300-30701.

57300-30501

Unavailable

9

LEVER ASSY, BRAKE | L,M; Includes Item(s) 10 - 17 This part replaces 57300-11011.

57300-32500

Unavailable

10

LEVER, BRAKE | R,J; FROM 57420-18600K This part replaces 57420-33010.

57420-18602

Unavailable

11

BOLT This part replaces 57431-11010.

57431-11013

$6.31

10

LEVER, BRAKE | L,M This part replaces 57420-18011.

57420-29400

Unavailable

12

NUT, LEVER PIVOT

57433-11010

$5.64

13

ADJUSTER, CABLE

57441-11010

$5.62

14

NUT, CABLE ADJUSTER

57442-11010

$2.79

15

BOLT This part replaces 01112-06208.

01500-06207

$2.28

16

PIN This part replaces 04111-16158.

04111-1620A

$1.49

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

LEVER ASSY, CLUTCH | R,J; FROM 57500-15910

57500-18610

Unavailable

18

LEVER ASSY, CLUTCH | K This part replaces 57500-18012.

57500-30501

Unavailable

18

NO DESCRIPTION AVAILABLE | L,M; Includes Item(s) 19 - 26 This part replaces 57500-11011.

57500-11012

Unavailable

19

LEVER, CLUTCH | R,J; FROM 57620-15900 This part replaces 57620-31010.

57620-45010

Unavailable

19

LEVER, CLUTCH | L; TO 57620-31010

57620-18011

Unavailable

20

BOLT This part replaces 57451-11010.

01500-06207

$2.28

21

NUT, LEVER PIVOT

57433-11010

$5.64

22

ADJUSTER, CABLE

57441-11010

$5.62

23

NUT, CABLE ADJUSTER

57442-11010

$2.79

24

BOLT This part replaces 01112-06208.

01500-06207

$2.28

25

PIN This part replaces 04111-16158.

04111-1620A

$1.49

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

27

BAND | R,J,K

09407-12402

$3.04

28

CLAMP | K,L This part replaces 09407-14301.

09407-18302

$2.28

29

COVER, CLUTCH LEVER | M This part replaces 57341-40000.

57341-40003

$5.56
