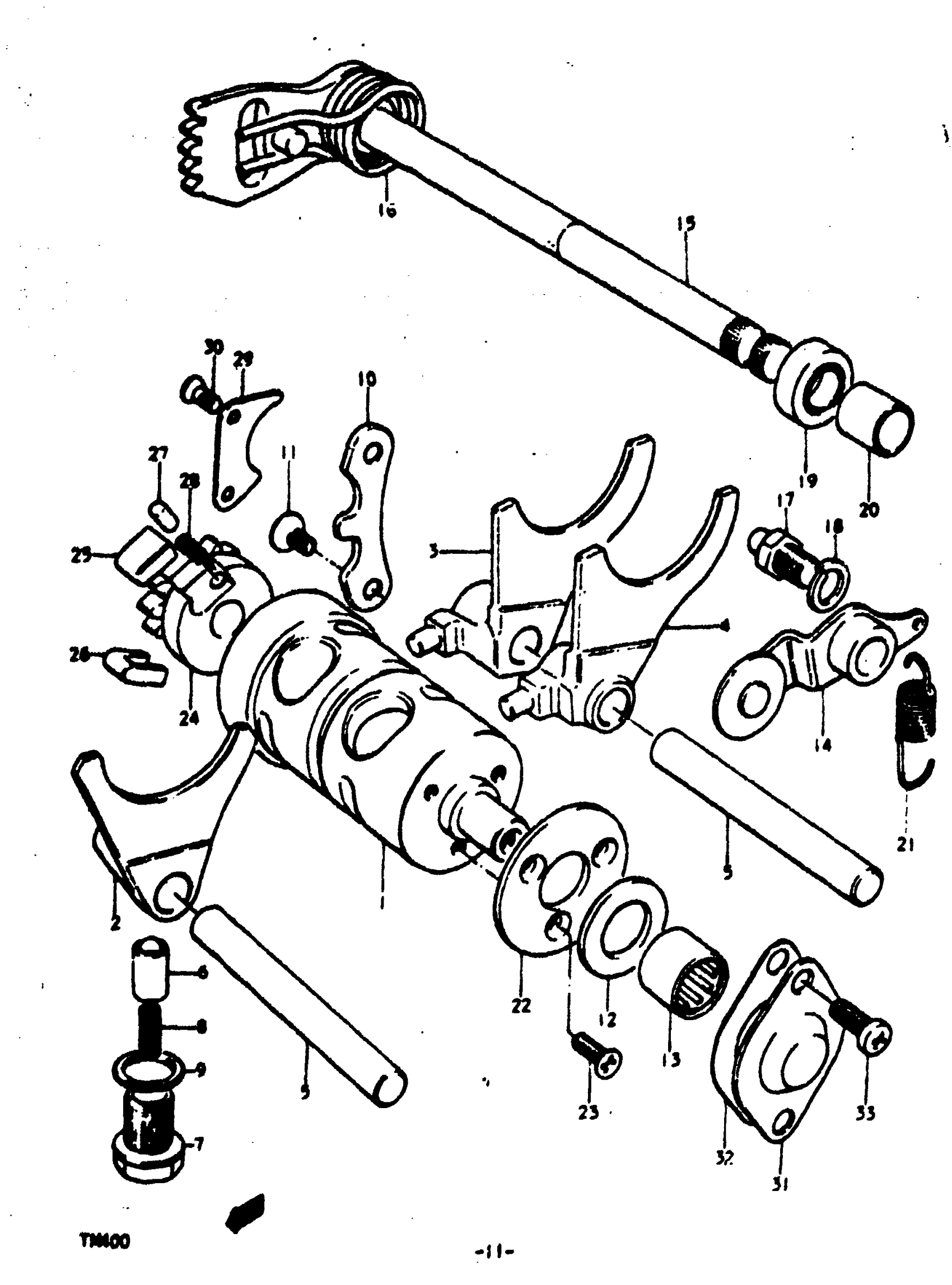

Suzuki TM400 (1975) GEAR SHIFTING Diagram

#

Description
Price

1

CAM, GEAR SHIFTING

25310-16500

Unavailable

2

FORK, 3RD DRIVE GEAR SHIFTING

25211-16500

Unavailable

3

FORK, 4TH DRIVEN GEAR SHIFTING | R,J,K,L; TO 25221-16501

25221-16500

Unavailable

3

FORK, 4TH DRIVEN GEAR SHIFTING | M

25221-16501

Unavailable

4

FORK, 5TH DRIVEN GEAR SHIFTING

25231-16500

Unavailable

5

SHAFT, GEAR SHI This part replaces 25411-16400.

25411-48001

Unavailable

6

STOPPER, SELECT CAM This part replaces 25351-18000.

25351-39300

$10.23

7

HOLDER, STOPPER This part replaces 25352-11000.

25352-11010

$7.22

8

SPRING This part replaces 09440-05010.

09440-05018

$1.84

9

GASKET, STOPPER

09168-14004

$1.83

10

GUIDE, CAM

25341-11000

Unavailable

11

SCREW This part replaces 02122-06128.

02122-06127

$1.84

12

THRUST WASHER | 12x25x2

08211-12253

Unavailable

13

BEARING, GEAR SHIFTING CAM

09263-12009

Unavailable

14

STOPPER, GEAR SHIFTING CAM

25350-16400

Unavailable

15

SHAFT, GEAR SHIFTING | R,J,K,L; TO 25510-16501

25510-16500

Unavailable

15

SHAFT, GEAR SHIFTING | M; E/NO-40962

25510-16501

Unavailable

15

NO DESCRIPTION AVAILABLE | M; E/NO-40963 This part replaces 25510-16502.

25510-16X00

Unavailable

16

SPRING, SHAFT RETURN

09444-26001

$5.88

17

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

20

CUSHION, SHIFTING SHAFT CHAIN | NYLON

09320-13001

Unavailable

21

SPRING, STOPPER ARM

09443-09004

Unavailable

22

PLATE, CAM STOPPER This part replaces 25381-20000.

25381-20001

Unavailable

23

.SCREW This part replaces 02121-04127.

02122-0412A

$1.93

24

GEAR | M; E/NO-40962

25322-20001

Unavailable

24

GEAR, GEAR SHIFT CAM DRIVEN | M; E/NO-40963 This part replaces 25322-11000.

25322-31310

$26.93

24

GEAR, SHIFTING CAM DRIVEN | E/NO.-40962

25322-20001

Unavailable

24

GEAR, GEAR SHIFT CAM DRIVEN | M; E/NO. 40963 This part replaces 25322-11000.

25322-31310

$26.93

25

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

26

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

27

PIN, PAWL

09261-05003

$1.54

28

SPRING, PAWL RETURN

09440-04003

$1.54

29

LIFTER, PAWL

25331-16500

Unavailable

30

SCREW This part replaces 02122-06128.

02122-06127

$1.84

31

CAP, PIVOT

11451-16500

Unavailable

32

GASKET, PIVOT CAP

11452-16500

Unavailable

33

SCREW This part replaces 02111-05127.

02112-05127

$1.97
