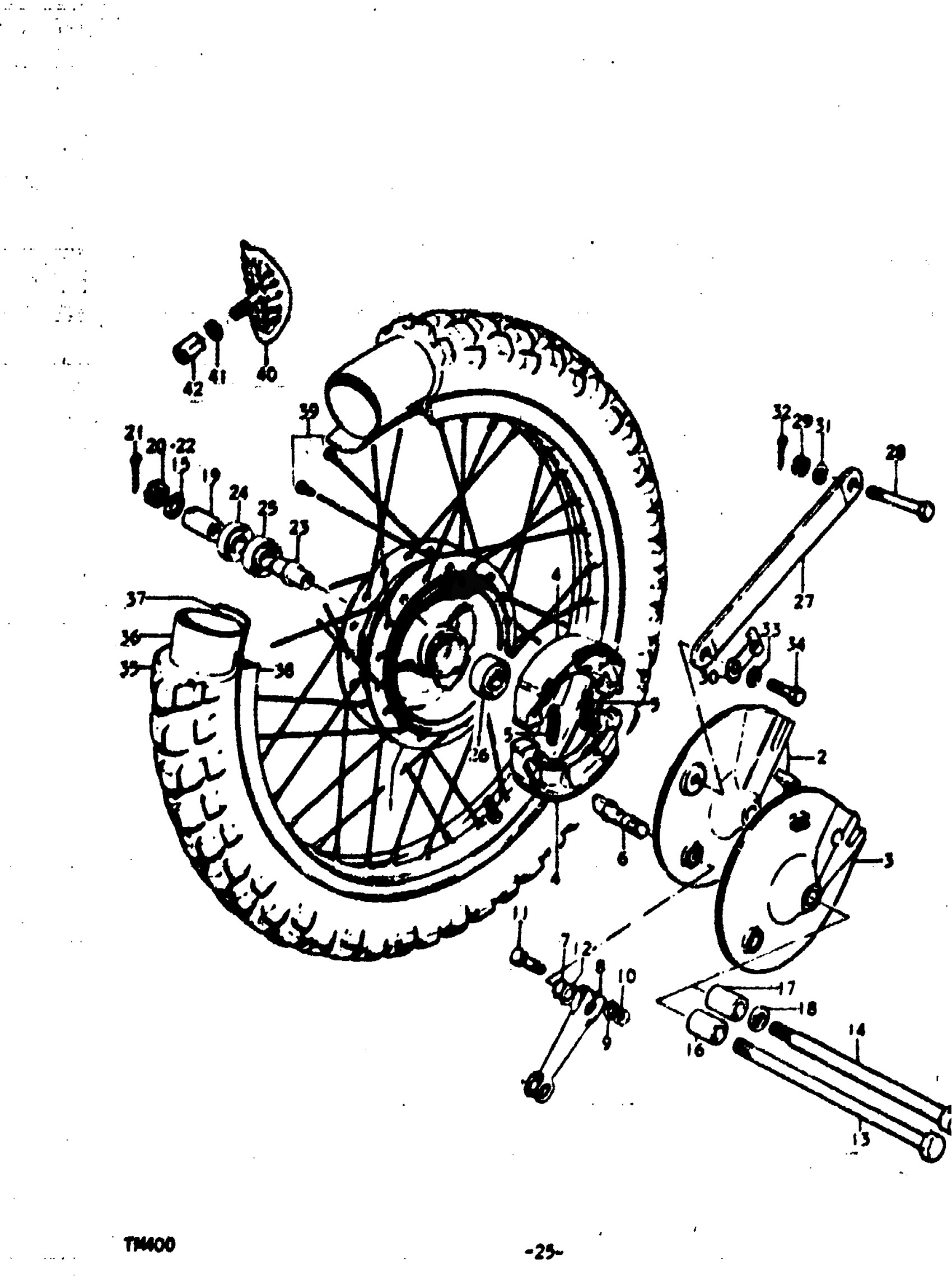

Suzuki TM400 (1975) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 54110-16501.

54110-16502

Unavailable

2

PANEL, FRONT HUB | R,J

54210-16500

Unavailable

3

PANEL, FRONT HUB | K; TO 54210-32101

54210-32100

Unavailable

3

PANEL, FRONT HUB | L,M

54210-32101

Unavailable

4

SHOE SET, BRAKE | R,J,K; TO 54410-07002 This part replaces 54410-07001.

54401-07810

Unavailable

4

SHOE SET, BRAKE | L,M This part replaces 54410-07002.

54401-07810

Unavailable

5

SPRING This part replaces 09443-07001.

09443-07025

$2.08

6

CAM, BRAKE | R; TO 54441-07001

54441-20000

Unavailable

6

CAM, BRAKE | J; TO 54441-01002

54441-07001

Unavailable

6

CAM, BRAKE | K; TO 54441-32101

54441-32100

Unavailable

6

CAM, BRAKE | L; TO 54441-01002

54441-32101

Unavailable

6

CAM, BRAKE | M

54441-01002

$18.80

7

O RING

09280-12001

$2.90

8

LEVER, BRAKE CAM

54451-16500

Unavailable

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT This part replaces 08311-11068.

08310-00067

$2.13

11

BOLT, ADJUSTER | 6x31 This part replaces 09100-06050.

09100-06150

$2.30

12

WASHER, CAM DUST SEEL | 12.5x20x1

09160-12011

$1.54

13

AXLE, FRONT | R,J,K,L This part replaces 54711-16501.

54711-16504

Unavailable

14

AXLE, FRONT | M This part replaces 54711-16502.

54711-16504

Unavailable

15

WASHER | M This part replaces 08322-21128.

08322-01127

$1.84

16

SPACER, LH | R,J,K,L

54721-16501

Unavailable

17

SPACER | M

09180-12063

$7.30

18

WASHER | M

09180-12058

Unavailable

19

SPACER, RH

54740-16501

Unavailable

20

NUT, AXLE | R,J,K,L; F. NO.12486~

09141-12002

Unavailable

21

PIN | F.NO.12486~ This part replaces 04111-30308.

04111-3030A

$1.49

22

NUT | M This part replaces 08314-31128.

08314-3112A

$2.41

23

SPACER, HUB BEARING

54730-07000

Unavailable

24

SEAL,OIL(17X38X This part replaces 09284-18001.

09284-18006

$5.10

25

BEARING

08113-63010

$19.57

26

B1 12X37X12 BEA This part replaces 08143-63010.

08143-6301B

$19.20

27

LINK, FRONT TORQUE | R,J

54311-16500

Unavailable

28

BOLT, TORQUE LINK | R,J

09101-08008

Unavailable

29

NUT | R,J This part replaces 08314-41088.

08314-4008B

$3.03

30

WASHER, TORQUE LINK | R,J

53312-16501

Unavailable

31

WASHER | R; F.NO. 11857~J; F.NO.11857~ This part replaces 08322-11088.

08322-01087

$2.13

32

CLIP, TORQUE LINK UPPER | R,J; F. NO. 11857~

09385-08001

Unavailable

33

.LOCK WASHER | R This part replaces 08321-21088.

08321-01087

$2.13

34

BOLT, REAR | R This part replaces 01122-08208.

01500-08207

$2.53

35

TIRE, FRONT | 3.00-21

55100-16570

Unavailable

36

TUBE | R,J,K,L; 3.00-21 This part replaces 55200-15010.

55200-44611

$33.73

36

TIRE, FRONT | M This part replaces 55200-16510.

55200-16511

$36.73

37

PROTECTOR, INNER TUBE

55261-16571

Unavailable

38

RIM, WHEEL | R,J,K,L; TO 55311-28322

55311-16501

Unavailable

38

RIM, WHEEL | M

55311-28322

Unavailable

39

NO DESCRIPTION AVAILABLE This part replaces 55301-16823.

55300-41811

Unavailable

40

STOPPER, BEAD This part replaces 65270-30000.

65270-43D00

$58.75

41

WASHER This part replaces 08322-21088.

08322-01087

$2.13

42

NUT, BEED STOPPER

09159-08016

Unavailable
