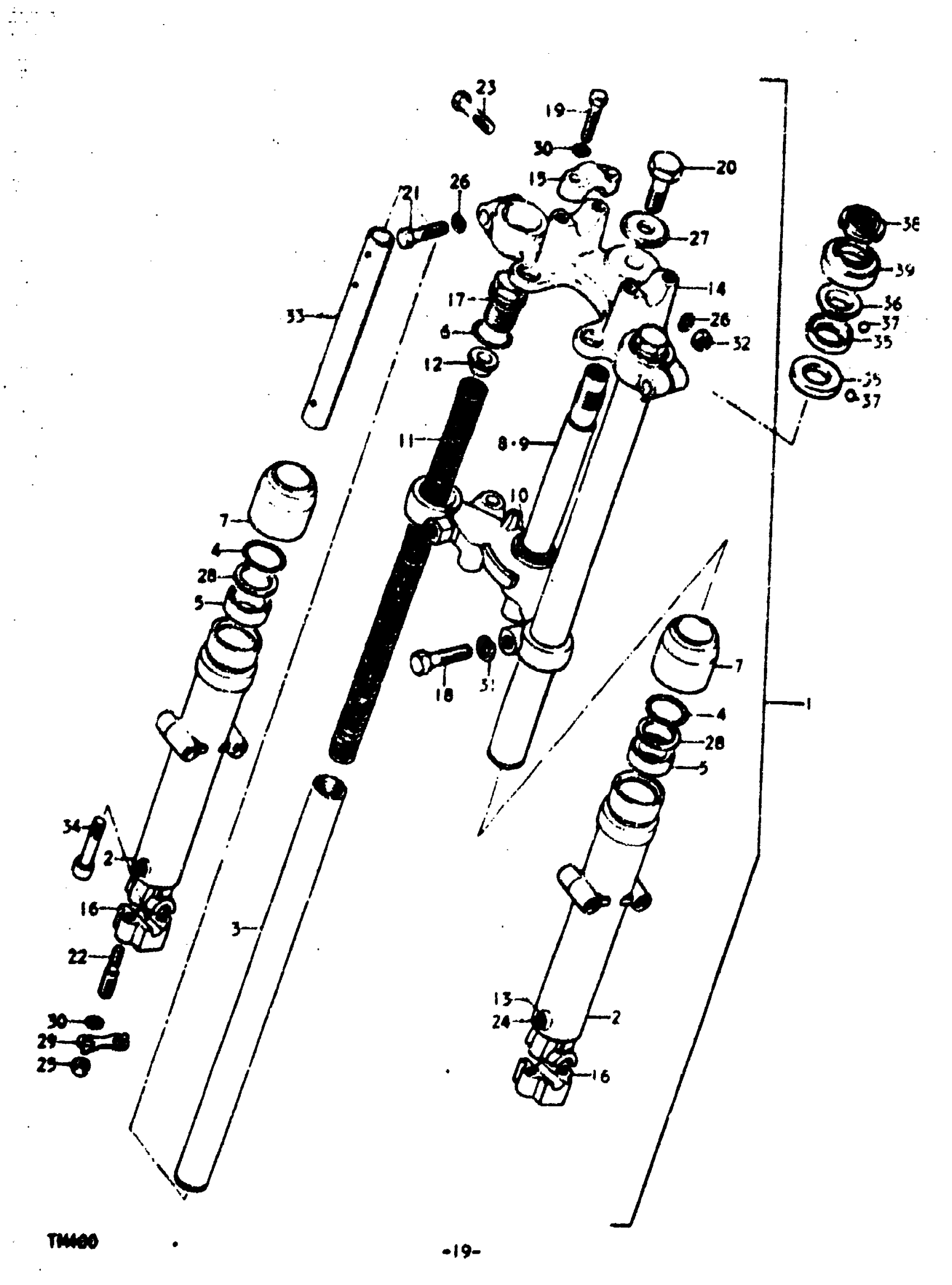

Suzuki TM400 (1975) FRONT FORK Diagram

#

Description
Price

1

FORK ASSY, FRONT | R; TO 51100-16511

51100-16510

Unavailable

1

FORK ASSY, FRONT | J; Includes Item(s) 2 - 34

51100-16511

Unavailable

2

TUBE, OUTER | R,J

51131-16510

Unavailable

3

TUBE, INNER | R,J

51111-16510

Unavailable

4

CIRCLIP | R,J

51156-16510

Unavailable

5

OIL SEAL | R; TO 51153-16511 This part replaces 51153-16510.

51153-16511

Unavailable

5

OIL SEAL | J

51153-16511

Unavailable

6

O RING, INNER TUBE CAP | R,J

51117-16310

Unavailable

7

DUST SEAL | R,J

51173-18510

Unavailable

8

STEERING STEM | R; TO 51410-30601 This part replaces 51410-30010.

51410-30601

Unavailable

9

STEERING STEM | J

51410-30601

Unavailable

10

RACE, STEERING STEM | R,J

51621-33001

$16.25

11

SPRING, FORK | R,J

51171-16510

Unavailable

12

GUIDE, SPRING | R,J

51172-16510

Unavailable

13

GASKET, DRAIN | R,J

51183-03010

$2.07

14

STEERING STEM HEAD | R; TO 51311-30011-019

51311-30011

Unavailable

14

STEERING STEM HEAD | J

51311-30011-019

Unavailable

15

HOLDER, HANDLE | R,J

56211-22011

Unavailable

16

HOLDER, AXLE | R,J

51132-16510

Unavailable

17

CAP | R,J This part replaces 51351-30010.

51351-40210

Unavailable

18

BOLT, INNER TUBE LOWER | R

51451-28011

Unavailable

18

BOLT, INNER TUBE LOWER | J

51451-28012

Unavailable

19

BOLT | R,J This part replaces 01221-08307.

01204-08307

$1.99

20

BOLT | R,J This part replaces 51351-20010.

51351-29400

$31.22

21

BOLT, INNER TUBE UPPER | R

51451-15110

Unavailable

21

BOLT | J This part replaces 51451-15113.

01104-10388

$2.72

22

STUD BOLT (L:30) | R,J This part replaces 01421-08308.

09108-08142

$3.18

23

BOLT | R,J This part replaces 01122-10458.

01500-1045A

$3.04

24

SCREW | R,J This part replaces 02111-04087.

02112-04087

$1.49

25

NUT | R,J This part replaces 08311-11088.

08310-00087

$2.13

26

LOCK WASHER | R,J This part replaces 08321-21108.

08321-01107

$1.84

27

WASHER, STEERING STEM HEAD | R,J

51356-22011

Unavailable

28

WASHER, OIL SEAL | R,J

51115-16510

Unavailable

29

WASHER, AXLE HOLDER | R,J

51139-16511

Unavailable

30

LOCK WASHER | R,J This part replaces 08321-21068.

08321-01067

$2.13

31

LOCK WASHER | R,J This part replaces 08321-21128.

08321-01127

$2.06

32

NUT | R,J This part replaces 08312-11108.

08310-00107

$2.19

33

CYLINDER | R,J

51146-16510

Unavailable

34

BOLT, CYLINDER | R,J

51147-16510

$4.34

35

RACE, INNER, LOWER | R,J This part replaces 51611-33001.

51611-33002

$13.81

36

RACE, STEERING OUTER UPPER | R,J

51621-30001

Unavailable

37

STEEL BALL | R,J

06111-08003

$1.49

38

NUT, STEERING STEM | R,J

51631-28000

$17.37

39

DUST SEAL | R,J

51643-30000

Unavailable
