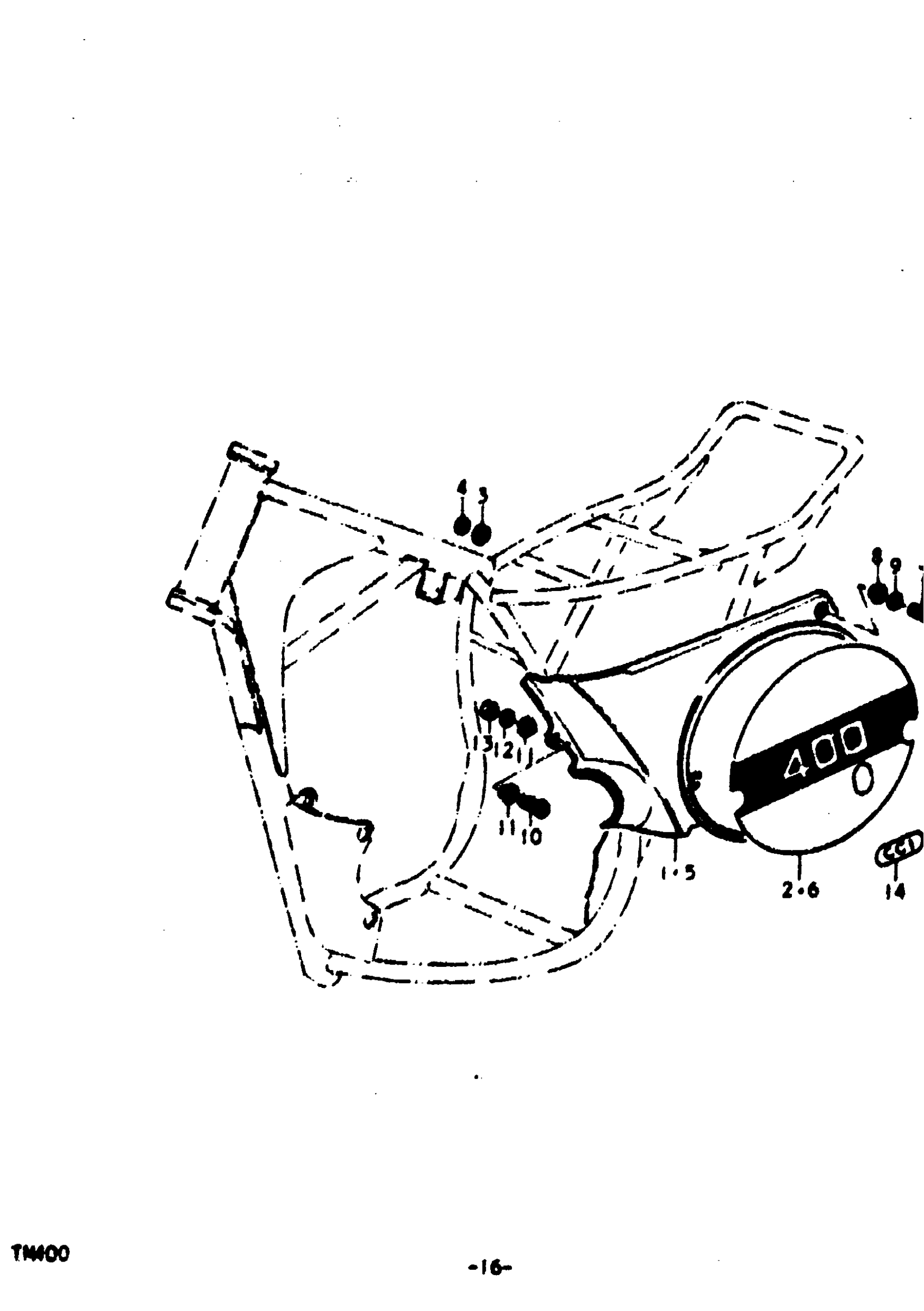

Suzuki TM400 (1975) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH | K,L,M

47110-32100

Unavailable

2

EMBLEM, FRAME COVER RH | K,L This part replaces 68131-32100.

68131-32101

Unavailable

2

EMBLEM, FRAME COVER RH | M

68131-32101

Unavailable

3

SPACER, FRAME COVER RH | KL,M

09169-05010

$2.38

4

LOCK WASHER | KL,M This part replaces 08321-21068.

08321-01067

$2.13

5

COVER, FRAME LH | K,L,M

47210-32100

Unavailable

6

EMBLEM, FRAME COVER LH | K,L This part replaces 68141-32100.

68141-32101

Unavailable

6

EMBLEM, FRAME COVER LH | M

68141-32101

Unavailable

7

SCREW | K,L,M This part replaces 02141-06167.

02142-06167

$1.49

8

SPACER, FRAME COVER LH | K,L,M

09169-06010

$2.60

9

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

10

SCREW | K,L,M This part replaces 02141-06167.

02142-06167

$1.49

11

SPACER, FRAME COVER FRONT | K,L,M

09169-06010

$2.60

12

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

13

.NUT | K,L,M This part replaces 08311-11068.

08310-00067

$2.13

14

EMBLEM, CCI | K,L

68171-26000

$3.59
