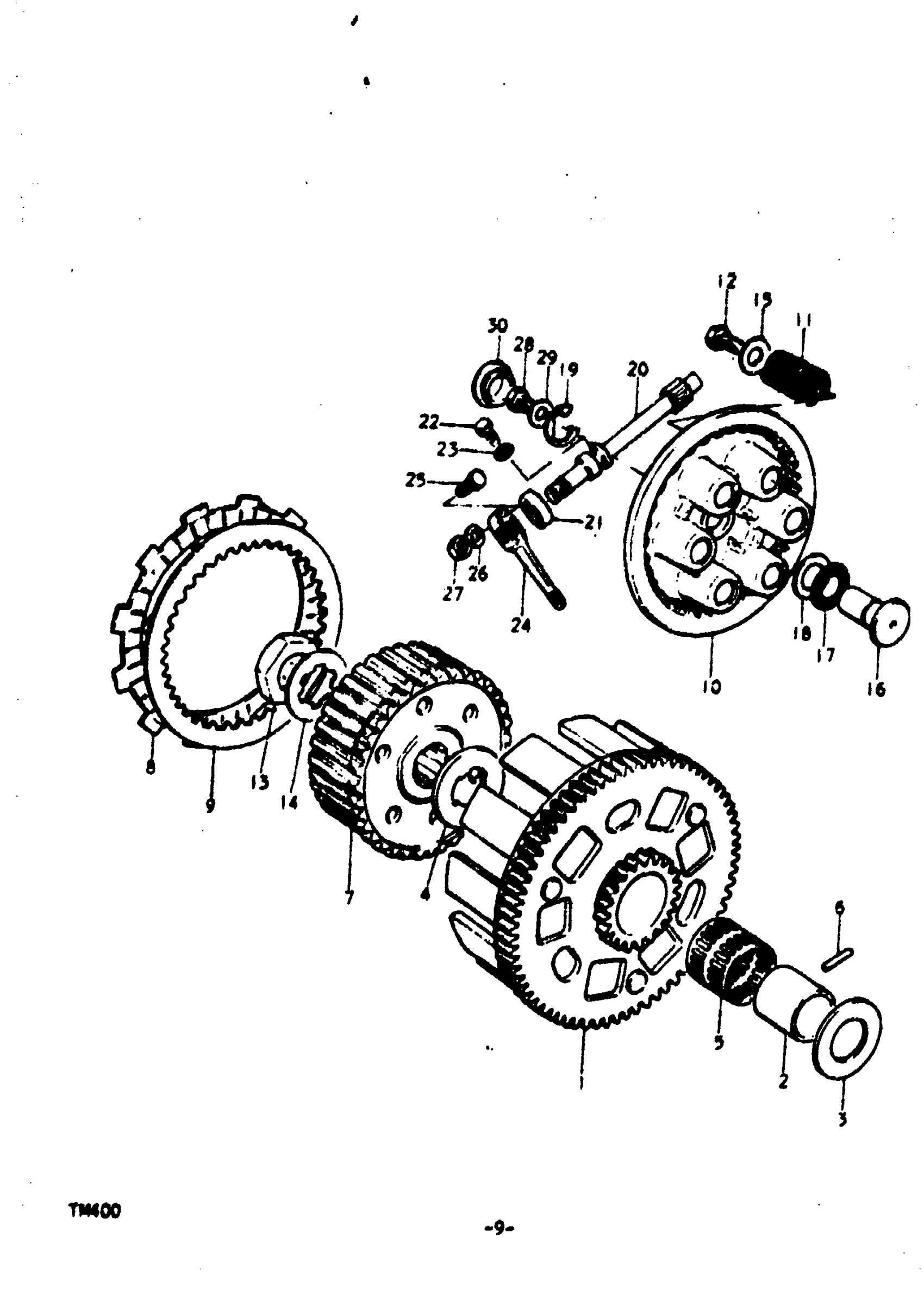

Suzuki TM400 (1975) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN | R,J;TO21200-32000 This part replaces 21200-16500.

21200-32000

Unavailable

1

GEAR, PRIMARY DRIVEN | K,L,M;NT:68/19

21200-32000

Unavailable

2

SPACER, GEAR | 23x30x32

09180-23001

Unavailable

3

WASHER, DRIVEN GEAR | 23x42x3

09160-23005

Unavailable

4

WASHER, SLEEVE HUB | R,J;18x44x3TO09167-22008K,L,M;18x44x4.5

09167-22006

Unavailable

5

BEARING, DRIVEN GEAR

09263-30003

Unavailable

6

PIN, GEAR SPACER

09202-03015

Unavailable

7

HUB, SLEEVE

21411-16500

Unavailable

8

PLATE, CLUTCH DRIVE NO.2 This part replaces 21441-16500.

21442-37401

$18.67

9

PLATE, CLUTCH DRIVEN

21451-31000

$10.40

10

PLATE, PRESSURE This part replaces 21462-16500.

21462-14301

$59.33

11

SPRING, CLUTCH

09440-19007

$2.52

12

BOLT, CANISTER This part replaces 01112-06168.

01500-06167

$1.97

13

NUT, SLEEVE HUB

09140-22003

Unavailable

14

WASHER, HUB NUT | 18.5x40x0.8

09167-22005

$2.11

15

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

16

NO DESCRIPTION AVAILABLE This part replaces 23165-16500.

23165-16502

Unavailable

17

BEARING

09263-15003

$8.29

18

WASHER, CLUTCH PUSH | 15x28x1 This part replaces 09160-15015.

09160-15045

$3.89

19

E-RING This part replaces 08332-11128.

08332-1112A

$2.15

20

PINION, RELEASE This part replaces 23261-16500.

23261-16501

Unavailable

21

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

22

BOLT, PINION STOPPER

09135-06009

$2.23

23

WASHER This part replaces 08322-21068.

08322-01067

$2.13

24

ARM, RELEASE This part replaces 23271-16500.

23271-45400

Unavailable

25

BOLT This part replaces 01112-06258.

01500-06257

$1.97

26

WASHER This part replaces 08322-21068.

08322-01067

$2.13

27

.NUT This part replaces 08311-11068.

08310-00067

$2.13

28

PLUG, CLUTCH COVER | R,J;8x7.5

09100-08056

Unavailable

29

GASKET (8.2X14X1) | R,J;8x14x1 This part replaces 09168-08003.

09168-08016

$1.65

30

CAP, PLUG | R,J

09250-24003

Unavailable
