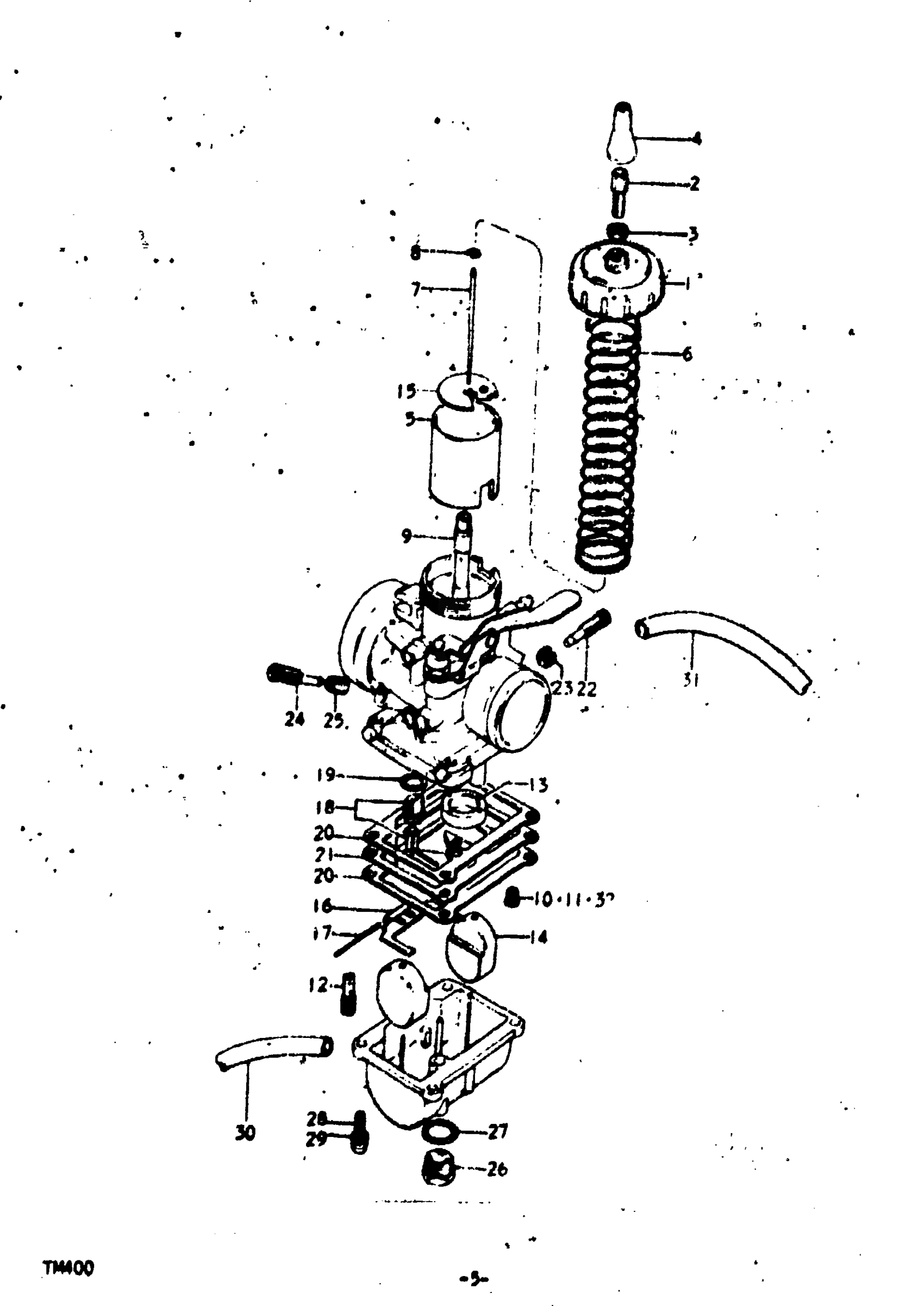

Suzuki TM400 (1975) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | R,J,K

13200-16611

Unavailable

0

CARBURETOR ASSY | L; TO 13200-32603

13200-32601

Unavailable

0

CARBURETOR ASSY | M; Includes Item(s) 1 - 31

13200-32603

Unavailable

1

CHAMBER TOP, MIXING

13265-16600

Unavailable

2

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

3

NUT, CABLE ADJUSTER

13661-16600

$4.64

4

BOOT, CABLE ADJUSTER | R,J,K,M

13681-16601

$8.26

5

THROTTLE VALVE | CA:2.5

13551-16611

Unavailable

6

SPRING This part replaces 13573-16600.

13573-16601

Unavailable

7

NEEDLE, JET | 6DH3-3

13383-16611

Unavailable

8

CLIP, NEEDLE

13394-10010

$5.45

9

JET, NEEDLE | R,J,K,M; P-3

09494-00111

Unavailable

9

JET, NEEDLE | L; P-3

09494-00138

Unavailable

10

JET. MAIN (240) | L,M; #240 This part replaces 09491-48001.

09491-48003

Unavailable

11

JET, MAIN (250) | R,J,K; #250 This part replaces 09491-50003.

09491-50008

Unavailable

12

JET, PILOT | R,J,K; #35

09492-35004

Unavailable

12

JET, PILOT | L,M; #40

09492-40004

$10.05

13

RING

13331-16510

Unavailable

14

FLOAT

13252-16600

$27.77

15

SEAT, THROTTLE VALVE SPRING | M

13581-16600

Unavailable

16

ARM, FLOAT

13253-16510

Unavailable

17

PIN, FLOAT

13254-11010

Unavailable

18

VALVE ASSY, NEEDLE

13370-16600

Unavailable

19

GASKET, VALVE SEAT

13392-16600

$1.94

20

GASKET, FLOAT CHAMBER | R,J,K,L

13251-16510

Unavailable

20

GASKET, FLOAT CHAMBER | M

13251-30110

Unavailable

21

PLATE, FLOAT CHAMBER | R,J,K,L

13259-16510

Unavailable

21

PLATE, FLOAT CHAMBER | M

13259-30110

Unavailable

22

SCREW, THROTTLE STOP | R,J,K,L

13267-16510

Unavailable

22

SCREW, THROTTLE STOP | M

13267-16400

Unavailable

23

NUT, STOP SCREW

13662-16510

Unavailable

24

SCREW, PILOT AIR

13269-15010

Unavailable

25

SPRING, AIR SCREW

13268-01010

$5.28

26

DRAIN PLUG

13247-16600

Unavailable

27

GASKET, DRAIN PLUG

13249-16600

Unavailable

28

SCREW | R,J,K,L

02111-05187

Unavailable

28

SCREW | M This part replaces 02112-05168.

02112-05167

$1.97

29

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

30

HOSE (3.5X6.5X600) | M This part replaces 13684-16600.

09351-35653-600

$4.64

31

HOSE (3.5X6.5X600) | M This part replaces 13686-16600.

09351-35653-600

$4.64

32

JET, MAIN (290) | OPT #290 This part replaces 09491-58001.

09491-58002

Unavailable

32

JET, MAIN (300) | OPT #300 This part replaces 09491-60003.

09491-60007

$13.05

32

JET, MAIN (320) | OPT #320 This part replaces 09491-64001.

09491-64002

$11.83

32

JET, MAIN | OPT #260 This part replaces 09491-52001.

09491-52006

$10.38

32

JET, MAIN (270) | OPT #270 This part replaces 09491-54001.

09491-54002

Unavailable

32

JET, MAIN (310) | OPT #310 This part replaces 09491-62001.

09491-62005

$11.83

32

JET, MAIN (280) | OPT #280 This part replaces 09491-56001.

09491-56003

Unavailable

32

JET, MAIN (#360) | OPT #360 This part replaces 09491-72001.

09491-72011

$11.83

32

JET, MAIN (340) | OPT #340 This part replaces 09491-68001.

09491-68002

$11.38
