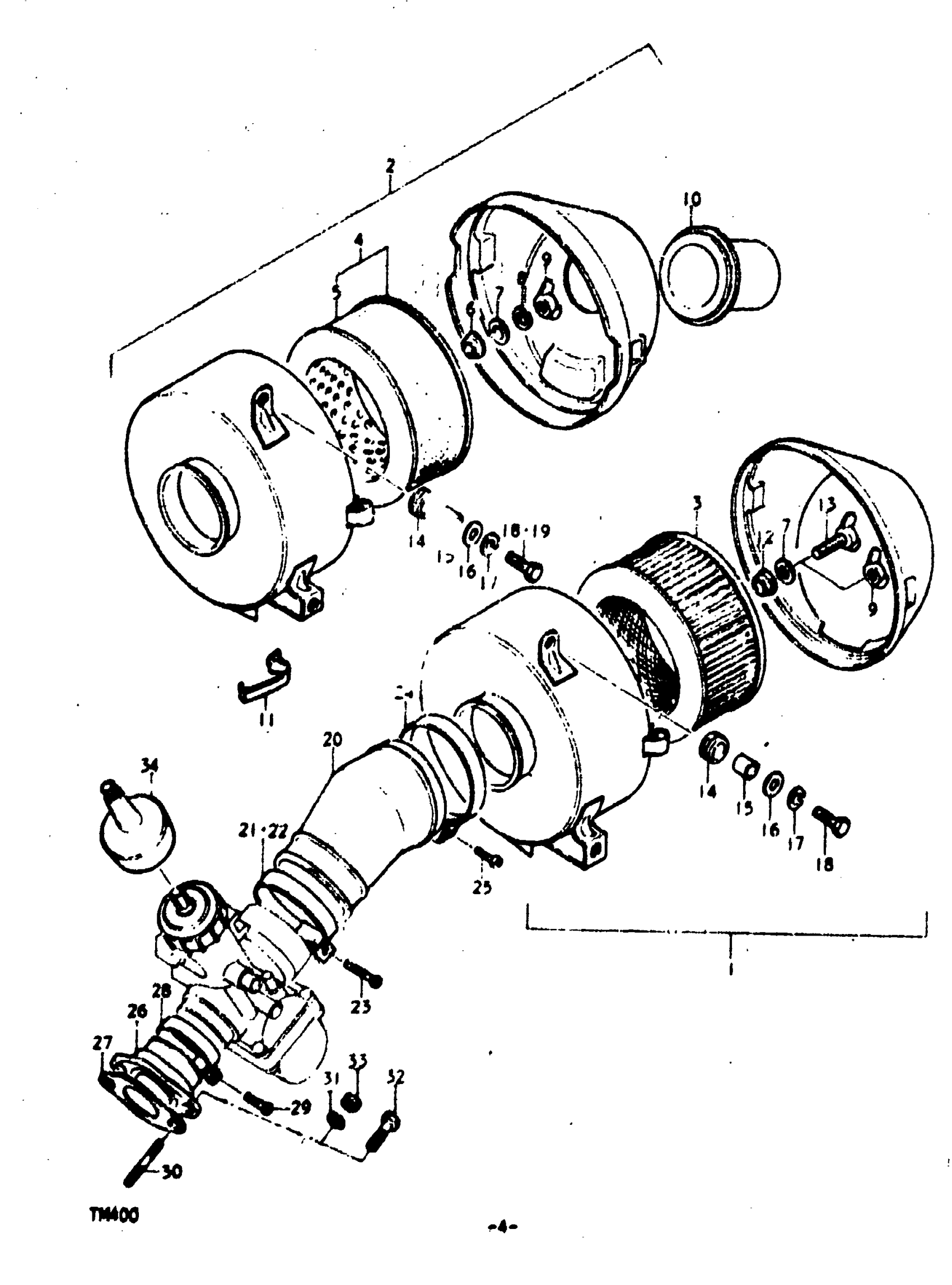

Suzuki TM400 (1975) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | R,J; TO 13700-16610

13700-16511

Unavailable

2

CLEANER ASSY, AIR | K; TO 13700-32310

13700-16610

Unavailable

2

CLEANER ASSY, AIR | L,M; Includes Item(s) 3 - 13

13700-32310

Unavailable

3

FILTER | J

13780-16511

Unavailable

3

FILTER | R,J; ~F.NO. 17982

13780-16510

Unavailable

4

FILTER | K

13780-30710

Unavailable

4

FILTER | L,M

13780-30410

Unavailable

5

FILTER | K,L; TO 13781-30711 This part replaces 13781-30710.

13780-30710

Unavailable

5

FILTER | M This part replaces 13781-30711.

13780-30710

Unavailable

6

RUBBER, SEAL | K,L,M

13742-29010

Unavailable

7

WASHER | R,J; PC:~F.NO. 17982K,L,M; PC:~F.NO. 17982 This part replaces 08322-21068.

08322-01067

$2.13

8

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13

9

NUT | J; TO 09144-06002

08317-11068

Unavailable

9

NUT | K,L,M

09144-06002

Unavailable

10

PIPE, INLET | L,M

13722-32310

Unavailable

11

SPRING | M

13731-16512

Unavailable

12

GASKET | R,J; ~F.NO. 17982

13742-05010

Unavailable

13

BOLT | R,J; ~F.NO. 17982

13751-16510

Unavailable

14

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

15

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

16

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

17

LOCK WASHER | 6.5x20x1.2 This part replaces 08321-21068.

08321-01067

$2.13

18

BOLT | R,J,KL This part replaces 01112-06258.

01500-06257

$1.97

19

BOLT | LM This part replaces 01112-06208.

01500-06207

$2.28

20

HOSE, AIR INLET | R,J

13881-16500

Unavailable

20

HOSE, AIR INLET | K,L; TO 13881-32101

13881-32100

Unavailable

20

HOSE, AIR INLET | M

13881-32101

Unavailable

21

CLAMP | R,J,K; TO 09402-66306 This part replaces 09402-00092.

09402-66306

$6.42

21

CLAMP, INLET FRONT | L

09402-66306

$6.42

22

CLAMP, INLET FRONT | M

09402-66304

Unavailable

23

SCREW | R,J,K,L This part replaces 02111-05257.

02112-05257

$1.49

24

CLAMP, INLET REAR | R,J,K,L; TO 09402-80306 This part replaces 09402-00213.

09402-80306

Unavailable

24

CLAMP, INLET REAR | M

09402-80306

Unavailable

25

SCREW This part replaces 02111-05207.

02112-05207

$1.97

26

PIPE, INTAKE

13110-16500

Unavailable

27

GASKET, INTAKE PIPE

13125-15000

Unavailable

28

CLAMP This part replaces 09402-00246.

09402-52306

$4.91

29

SCREW This part replaces 02111-05207.

02112-05207

$1.97

30

STUD BOLT | R,J,K,L This part replaces 01421-08168.

01421-0816A

$1.78

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

BOLT, REAR | M This part replaces 01122-08208.

01500-08207

$2.53

33

NUT | R,J,K,L This part replaces 08312-11088.

08310-00087

$2.13

34

BOOT, CABLE ADJUSTER | K,L,M This part replaces 13681-30100.

13681-16601

$8.26

34

CAP, CARBURETOR WIRE ADJUSTING | R,J,K,L

13681-16601

$8.26
