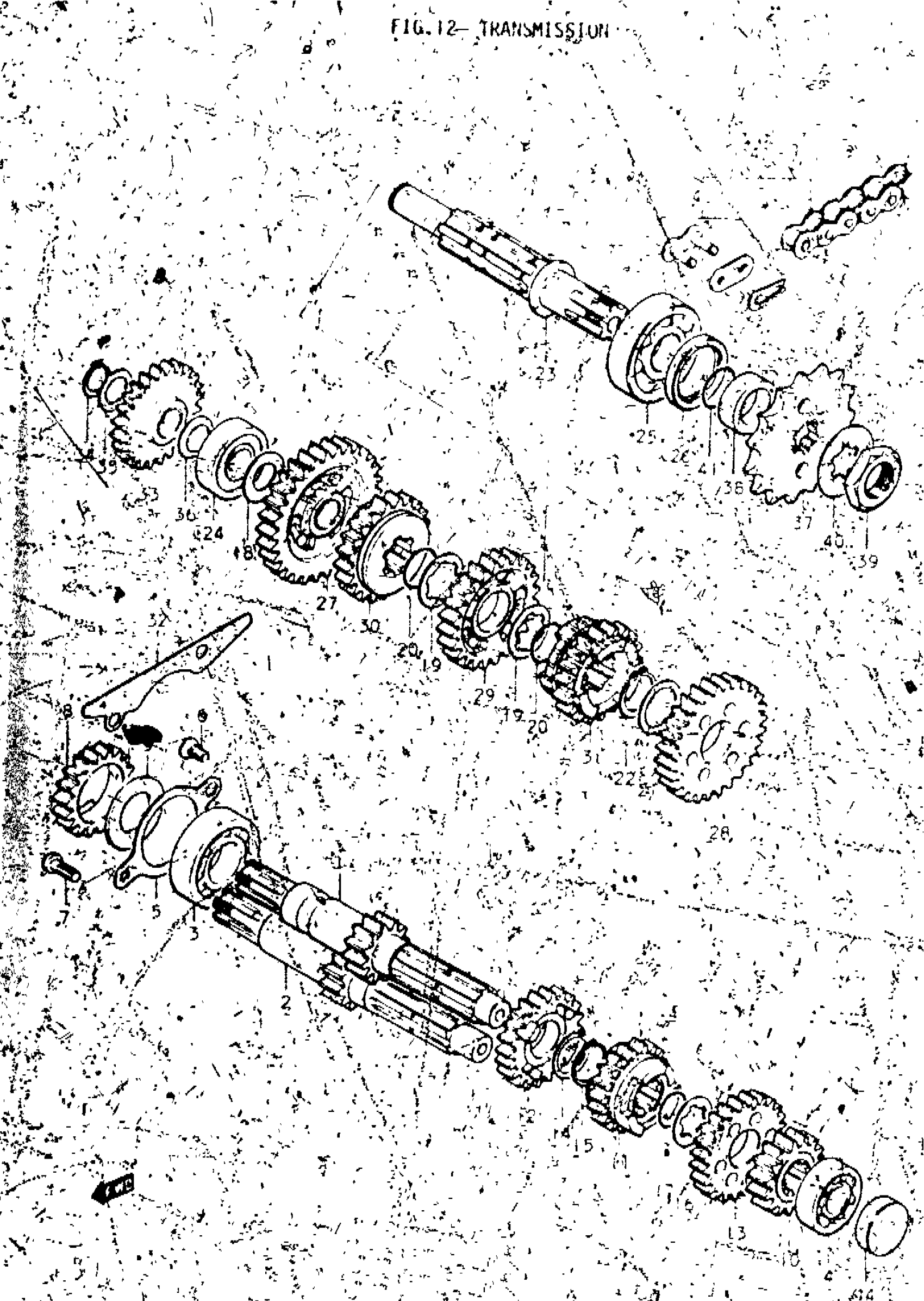

Suzuki TM250 (1975) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER | J; NT:12

24121-30000

Unavailable

2

SHAFT, COUNTER | K,L

24121-30100

Unavailable

2

SHAFT, COUNTER | M

24121-30200

Unavailable

3

BEARING (25X52X15) | J,K,L,M This part replaces 08143-62050.

08143-62057

$24.40

4

BEARING, DRIVE SHAFT RH | J,K,L,M This part replaces 08113-62030.

09262-17023

$16.75

5

HOLDER, BEARING | J,K,L,M

24741-30100

Unavailable

6

SCREW | J,K,L,M This part replaces 02122-06128.

02122-06127

$1.84

7

SCREW | J,K,L,M This part replaces 02112-06108.

02112-06107

$1.49

8

GEAR, KICK STARTER DRIVEN | L; NT:18 TO 26281-30001 This part replaces 26281-30700.

26281-30001

Unavailable

8

GEAR, KICK STARTER DRIVEN | J

26281-30001

Unavailable

9

WASHER | 25x41x3

09160-25009

$5.36

10

GEAR, 2ND DRIVE | J,K,L; NT:15

24221-30000

Unavailable

10

GEAR, 2ND DRIVE | M; NT:16

24221-30200

Unavailable

11

GEAR, 3RD DRIVE | J; NT:18 FROM 24231-30000K,L,M; NT:18 SEE NOTE

24231-30100

Unavailable

12

GEAR, 4TH DRIVE | J,K,L; NT:21

24241-30000

Unavailable

12

GEAR, 4TH DRIVE | M; NT:20

24241-30400

Unavailable

13

GEAR, 5TH DRIVE | J; NT:23 FROM 24251-30000K,L; NT:23 SEE NOTE

24251-30100

Unavailable

13

GEAR, 5TH DRIVE | M; NT:22

24251-30400

Unavailable

14

WASHER (22X28X1.0) | J,K,L,M This part replaces 08211-22281.

09181-22139

$3.48

15

CIRCLIP | J,K,L This part replaces 09380-22001.

08331-31229

$2.48

15

CIRCLIP | M This part replaces 08331-11229.

08331-31229

$2.48

16

WASHER

09167-22007

Unavailable

17

CIRCLIP

09380-22003

$1.92

18

WASHER, 2ND DRIVE GEAR | J,K; 17x29x1 This part replaces 08211-17301.

09181-17223

$2.96

19

WASHER

09167-25004

Unavailable

20

CIRCLIP

09380-25006

Unavailable

21

THRUST WASHER | J,K,M

08211-25321

$3.27

21

THRUST WASHER | L

09160-25013

Unavailable

22

SNAP RING

09380-25003

$3.04

23

DRIVESHAFT This part replaces 24131-30000.

24131-30001

Unavailable

24

BEARING, FRONT HUB RH This part replaces 08143-62030.

08143-62037

$18.47

25

BEARING, RH (22X56X16) This part replaces 09262-22006.

09262-22025

$57.67

26

OIL SEAL

09283-32003

$7.31

27

GEAR, 1ST DRIVEN | J,K,L; NT:29

24310-30001

Unavailable

27

GEAR, 1ST DRIVEN | M; NT:27

24310-30200

Unavailable

28

GEAR, 2ND DRIVEN | J,K,L; NT:27

24321-30000

Unavailable

28

GEAR, 2ND DRIVEN | M; NT:25

24321-30200

Unavailable

29

GEAR, 3RD DRIVEN | J; FROM 24331-30000K,L,M

24331-30100

Unavailable

30

GEAR, 4TH DRIVEN | J,K; NT:21 TO 24341-30000

24341-30000

Unavailable

30

GEAR, 4TH DRIVEN | L,M

24341-30001

Unavailable

31

GEAR, 5TH DRIVEN | J; FROM 24351-30000 TO 24351-30101K; SEE NOTE This part replaces 24351-30100.

24351-30101

Unavailable

31

GEAR, 5TH DRIVEN | L,M

24351-30101

Unavailable

32

PLATE OIL RESERVIOR | J,K,L,M

24871-30000

Unavailable

33

GEAR, KICK STARTER IDLE | J,K,L,M This part replaces 26260-30001.

26260-30002

Unavailable

34

CIRCLIP | J,K,L,M

09380-17001

$1.98

35

THRUST WASHER | J,K,L,M

08211-17251

$2.83

36

WASHER | J,K,L,M

09164-17002

Unavailable

37

SPROCKET, ENGINE | J; NT:15 TO 27511-18710

27511-30000

Unavailable

37

SPROCKET, ENGINE | NT:15

27511-18710

Unavailable

37

SPROCKET, ENGINE | NT:13; OPT

27511-18700

Unavailable

37

SPROCKET, ENGINE | J,K,L; NT:14; OPT

27511-18000

Unavailable

38

SPACER

09180-22007

Unavailable

39

NUT | J,K,L,M

09140-22003

Unavailable

40

WASHER | J,K,L,M

09167-22005

$2.11

41

O RING | J,K,L,M

09280-22003

$1.72

42

CHAIN ASSY, DRIVE | #525TM 100L This part replaces 27600-30110.

27600-16410

Unavailable

43

JOINT, CHAIN

27620-30110

Unavailable

44

PLUG | K,L,M This part replaces 09241-30001.

09241-30003

$5.97
