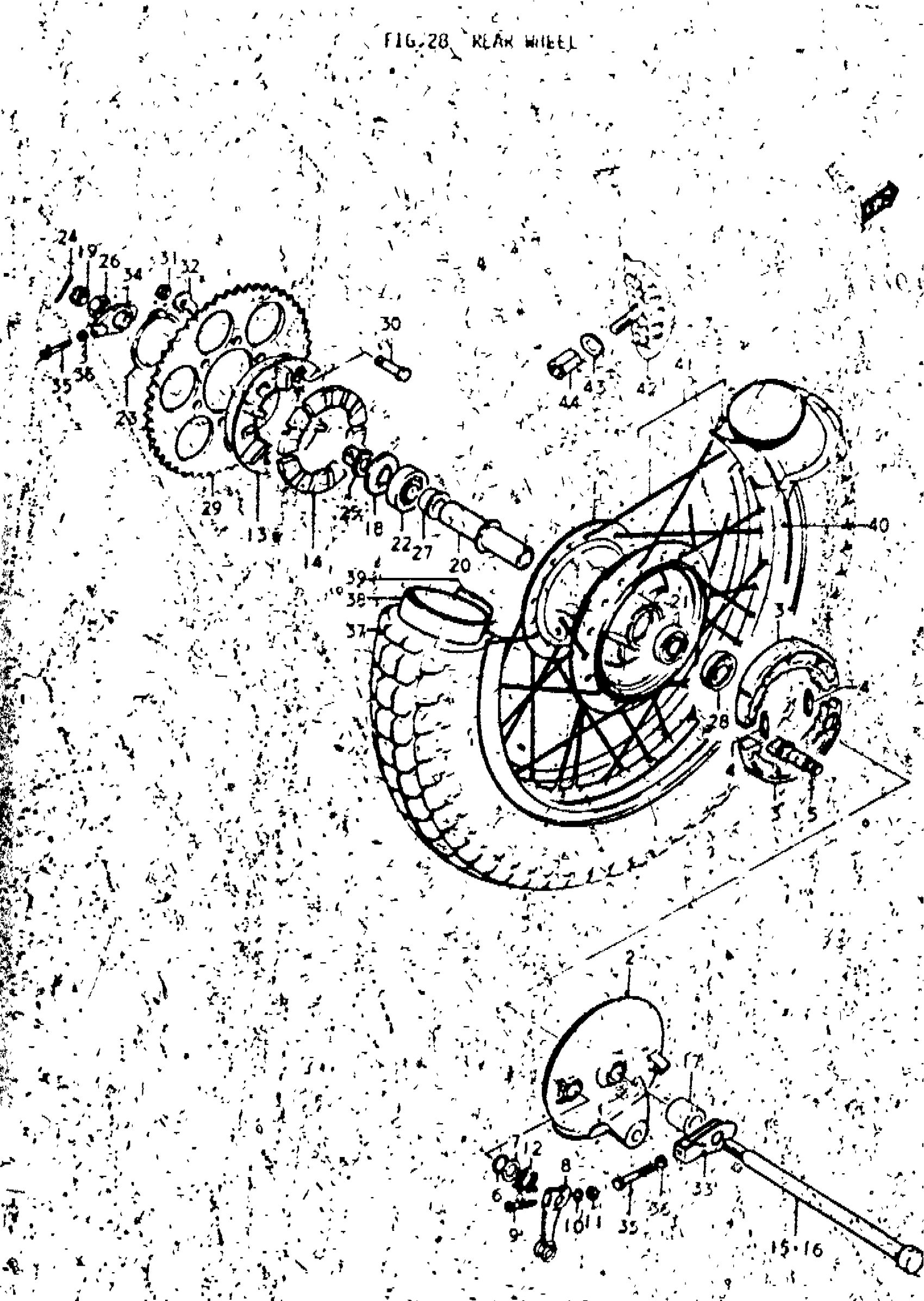

Suzuki TM250 (1975) REAR WHEEL Diagram

#

Description
Price

0

WHEEL SET, REAR | TO 64100-16860

60001-16827

Unavailable

0

| INCLUDES REF. NOS. 1,20~22,40,AND 41

60001-16821

Unavailable

0

WHEEL SET, REAR | TO 64100-16861INCLUDES REF. NOS. 1,20~22,40,AND 41

64100-16860

Unavailable

0

WHEEL SET, REAR | INCLUDES REF. NOS. 1,20~22,40,AND 41

64100-16861

Unavailable

0

WHEEL SET, REAR | TO 64100-16841INCLUDES REF. NOS. 1,20~22,40,AND 41

64100-16840

Unavailable

0

WHEEL SET, REAR | INCLUDES REF. NOS. 1,20~22,40,AND 41

64100-16841

Unavailable

1

DRUM, REAR HUB

64110-16500

Unavailable

2

PANEL, REAR HUB | J,K; TO 64210-16501

64210-16500

Unavailable

2

PANEL, REAR HUB | L,M

64210-16501

Unavailable

3

SHOE SET, REAR BRAKE | J,K,L; TO 54410-08002 This part replaces 54410-08001.

64400-02830

$55.17

3

SHOE, BRAKE | M

54410-0800

Unavailable

4

SPRING, BRAKE SHOE

55420-30000

$4.48

5

CAM, BRAKE | J,K; TO 54440-30001

54440-30000

Unavailable

5

CAM, BRAKE | L; TO 54440-08001

54440-30001

Unavailable

5

CAM, REAR BRAKE | M This part replaces 54440-08001.

54440-08004

$27.62

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

$1.76

7

WASHER This part replaces 09160-15001.

09160-15048

$2.56

8

NO DESCRIPTION AVAILABLE This part replaces 64451-30000.

64451-30001

Unavailable

9

BOLT This part replaces 01112-06408.

01500-0640B

$2.62

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

.NUT This part replaces 08311-11068.

08310-00067

$2.13

12

SPRING This part replaces 09448-30001.

09448-30001-XC0

Unavailable

13

DRUM, SPROCKET MOUNTING

64610-16500

Unavailable

14

CUSHION, TEAR HUB

64650-16520

Unavailable

15

AXLE, REAR | J,K,L

64711-16500

Unavailable

16

NO DESCRIPTION AVAILABLE | M This part replaces 64711-32100.

64711-32101

Unavailable

17

SPACER, RH | J,K,L; 15.2x26x20

09180-15014

Unavailable

17

SPACER, RH | M; 15.2x26x16

09180-15028

Unavailable

18

SPACER, LH

64750-30000

Unavailable

19

NUT

09141-14001

$4.60

20

SPACER, HUB BEARING

64730-30000

Unavailable

21

BEARING (15X42X13) This part replaces 08113-63020.

09262-15027

$23.39

22

BEARING This part replaces 08123-63040.

08123-6304B

$24.07

23

CIRCLIP This part replaces 08331-11628.

08331-31629

$7.42

24

PIN This part replaces 04111-30408.

04111-3040A

$1.59

25

SPACER, CHAIN ADJUSTER LH

64791-30000

Unavailable

26

NUT This part replaces 09140-24002.

09140-24010

Unavailable

27

HOLDER, HUB BEARING

64733-30000

Unavailable

28

OIL SEAL

09284-26001

Unavailable

29

SPROCKET, REAR | NT:45

64511-30720

Unavailable

29

SPROCKET, REAR | J,K,L; NT:48 OPT

64511-30730

Unavailable

29

SPROCKET, REAR | J,K,L; NT:51 OPT

64511-30740

Unavailable

30

BOLT

09105-08001

$2.06

31

NUT | J,K,L This part replaces 08312-31088.

08310-00087

$2.13

31

NUT | M

09140-08010

Unavailable

32

WASHER This part replaces 09169-08010.

09169-08011

$2.16

33

ADJUSTER, CHAIN | J,K,L; TO 61410-30001 This part replaces 61410-30000.

61410-30003

Unavailable

34

ADJUSTER, CHAIN LH | J,K,LM This part replaces 61420-30001.

61420-30002

Unavailable

35

BOLT

09104-08000

Unavailable

36

NUT This part replaces 08312-11088.

08310-00087

$2.13

37

TUBE, REAR | 4.00-18

65100-16510

Unavailable

38

TUBE, INNER | 4.00-18

65200-16510

Unavailable

39

PROTECTOR, INNER TUBE This part replaces 65261-16510.

65261-33030

$5.50

40

R1M, WHEEL | J,K; H TYPE (AKRONT)TO 65311-16520USED WITH 65300-16828

65311-16500

Unavailable

40

RIM, WHEEL | J,K; H TYPE (TAKASAGO)TO 65311-28322USED WITH 65300-28860 This part replaces 65311-16520.

65311-28322

Unavailable

40

RIM, WHEEL | J,K; E TYPE (TAKASAGO)

65311-28322

Unavailable

40

RIM, WHEEL | L; E TYPE (AKRONT)TO 65311-30420USED WITH 65300-28860

65311-30400

Unavailable

40

RIM, WHEEL | L; E TYPE (TAKASAGO)

65311-30420

Unavailable

40

RIM, WHEEL | M; E TYPE (TAKASAGO)

65311-30421

Unavailable

41

SPOKE, SET | J,K; USED TO 65311-28322

65300-28860

Unavailable

41

SPOKE ASSY, REAR | TAKASAGO This part replaces 65300-16828.

65320-16520

Unavailable

41

SPOKE, SET | AKRONT NOT AVAILABLE

65300-30830

Unavailable

42

STOPPER, BEAD | J,K This part replaces 65270-30000.

65270-43D00

$58.75

42

STOPPER, BEAD | L,M This part replaces 65270-32100.

65270-28E00

$58.75

43

WASHER This part replaces 08322-21088.

08322-01087

$2.13

44

NUT

09159-08016

Unavailable
