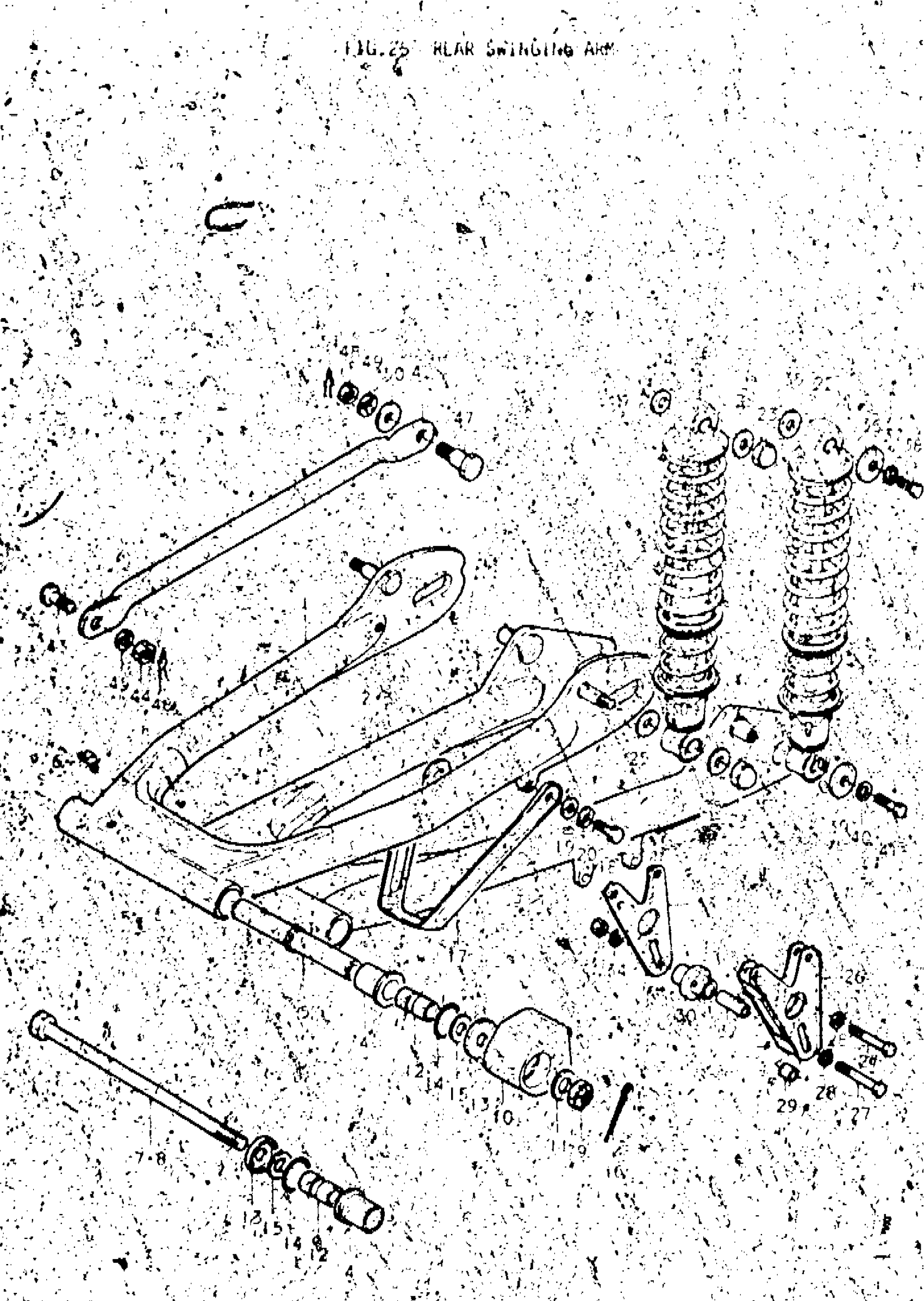

Suzuki TM250 (1975) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM, REAR | J,K

61100-30840-019

Unavailable

2

SWINGING ARM, REAR | L

61100-30830-019

Unavailable

3

SWINGING ARM, REAR | M; Includes Item(s) 4 - 6

61100-32830-019

Unavailable

4

BUSHING | J,K,LM This part replaces 09307-18001.

09307-18002

$10.21

5

SPACER | J,K,L

61280-30000

Unavailable

5

SPACER | M

61280-32000

Unavailable

6

NIPPLE, GREASE | J,K This part replaces 08351-31008.

08351-3100A

$4.45

7

SHAFT, REAR SWINGING ARM | J,K,L

61211-16500

Unavailable

8

SHAFT, REAR SWINGING ARM | M

61211-32101

Unavailable

9

NUT | J,K,L

09159-12102

$3.23

9

NUT | M

09141-14004

$3.91

10

BUFFER, CHAIN DEFENSE | J,K,LM

61273-32100

Unavailable

11

WASHER | J,K,L This part replaces 08322-11128.

08322-01127

$1.84

11

WASHER | M This part replaces 08322-11148.

08322-01147

$1.91

12

SPACER, REAR SWINGING ARM | J,K,L

61251-28000

$13.36

12

SPACER | M This part replaces 61251-15000.

61251-15001

Unavailable

13

COVER, DUST SEAL | J,K,L

61262-09200

$3.59

13

COVER, DUST SEAL | M

61262-15000

$93.03

14

.O-RING (D:3,ID:24.5) | J,K,L This part replaces 09280-24001.

09280-24003

$1.55

14

.O RING (D:3,ID:29.5) | M

09280-30001

$1.72

15

THRUST WASHER | J,K,L; 12.5X24X2.3

09160-12005

$2.38

15

THRUST WASHER | M; 14.5X29X2.3

09160-14009

$2.82

16

PIN | M This part replaces 04111-20308.

04111-2030A

$1.50

17

GUIDE, CHAIN | J,K

61341-16500

Unavailable

18

BOLT, CANISTER | J,K This part replaces 01112-06168.

01500-06167

$1.97

19

.WASHER | J,K This part replaces 08322-11068.

08322-0106B

$2.26

20

LOCK WASHER | J,K This part replaces 08321-21068.

08321-01067

$2.13

21

SHOCK ABSORBER ASSY, REAR | J,K

62100-30701

Unavailable

22

SHOCK ABSORBER ASSY, REAR | L

62100-32600

Unavailable

22

SHOCK ABSORBER ASSY, REAR | M

62100-32610

Unavailable

23

NUT | J,K This part replaces 08313-11107.

08313-10107

$2.50

24

WASHER | J,K This part replaces 08322-11128.

08322-01127

$1.84

25

WASHER, LOWER (10.5X24X2.3) | J,K; 10.5X24X2.3 This part replaces 09160-10001.

09160-10093

$2.35

26

GUIDE, CHAIN (1) | L; TO 61340-32102

61340-32101

Unavailable

26

GUIDE, CHAIN (1) | L,M

61340-32102

Unavailable

27

BOLT | L,M This part replaces 01112-06558.

01500-0655B

$2.92

28

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

29

SPACER, CHAIN GUIDE | L,M; 6.5X12X6.9

09180-06010

Unavailable

30

RUBBER, CHAIN GUIDE | L,M

61345-32100

Unavailable

31

NUT, CHAIN GUIDE | L,M

09159-06018

Unavailable

32

SPACER, CHAIN GUIDE | L,M

09180-06056

Unavailable

33

GUIDE, CHAIN (2) | L; TO 61350-32101

61350-32100

Unavailable

33

GUIDE, CHAIN (2) | L,M

61350-32101

Unavailable

34

WASHER | L,M This part replaces 08322-21068.

08322-01067

$2.13

35

WASHER, SHOCK ABSORBER UPPER | L

09160-12070

Unavailable

35

WASHER | M This part replaces 08322-11128.

08322-01127

$1.84

36

WASHER, FRONT | L This part replaces 09160-06004.

09160-06134

$1.91

37

LOCK WASHER | L This part replaces 08321-21068.

08321-01067

$2.13

38

BOLT | L This part replaces 01112-06128.

01500-06127

$1.97

38

BOLT, STOCK ABSORBER | M

09100-12102

Unavailable

39

WASHER, FRONT | L This part replaces 09160-06004.

09160-06134

$1.91

39

WASHER | M This part replaces 08322-11128.

08322-01127

$1.84

40

LOCK WASHER | L This part replaces 08321-21068.

08321-01067

$2.13

41

BOLT | L This part replaces 01112-06128.

01500-06127

$1.97

41

BOLT, SHOCK ABSORBER LOWER | M

09100-12111

$4.77

42

LINK, REAR TORQUE | J,K,L

64311-16500

Unavailable

42

NO DESCRIPTION AVAILABLE | M This part replaces 64311-32100.

64311-32101-019

Unavailable

43

BOLT, REAR TORQUE TANK | J; TO 09111-08012 USED WITH09385-10001

09119-08012

Unavailable

43

BOLT, REAR TORQUE TANK | K,L,M

09111-08012

$3.78

44

NUT

09140-08008

$1.49

45

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

46

CLIP | USED TO 09119-08012

09384-06001

$1.49

46

CLIP | K,L,M This part replaces 09385-10001.

09385-10005

$1.56

47

BOLT | TO 09111-10009 USED WITH09385-10001

09119-10001

Unavailable

47

BOLT | K,L,M

09111-10009

Unavailable

48

NUT This part replaces 08311-31108.

08310-00107

$2.19

49

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

50

WASHER This part replaces 09160-12004.

09160-12088

$2.00

51

CLIP | USED TO 09119-10001

09384-08001

Unavailable

51

CLIP | K,L,M This part replaces 09385-10001.

09385-10005

$1.56
