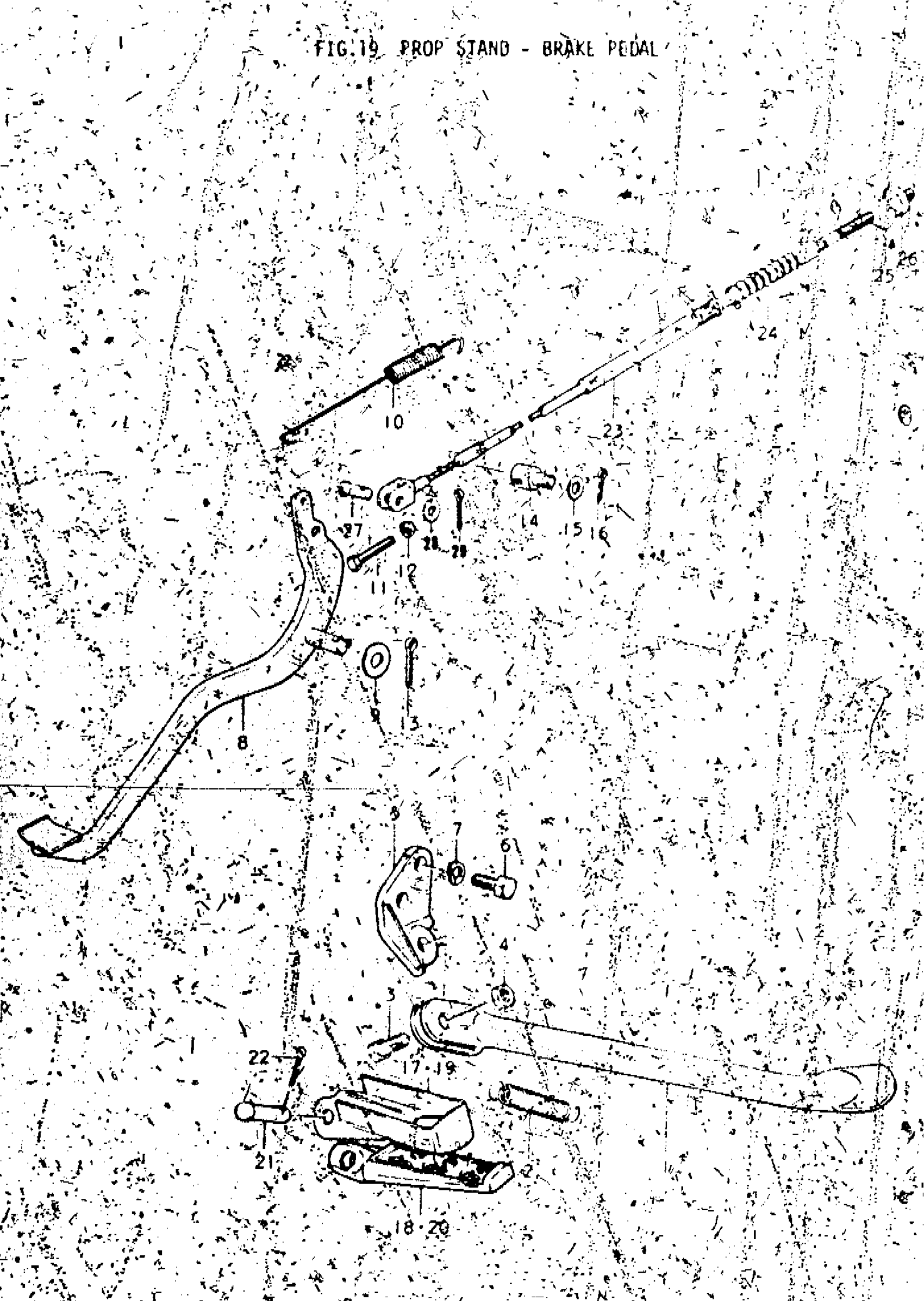

Suzuki TM250 (1975) PROP STAND - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, PROP This part replaces 42310-30000.

42310-30001

Unavailable

2

SPRING This part replaces 09443-14005.

09443-14017

$3.04

3

BOLT

09100-10067

$2.61

4

NUT This part replaces 08312-31108.

08310-00107

$2.19

5

BRACKET

42330-30000

Unavailable

6

BOLT This part replaces 01111-10258.

01500-10257

$3.85

7

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

8

PEDAL, BRAKE | J,K; TO 43110-30102

43110-30100

Unavailable

8

PEDAL, BRAKE | L; TO 43110-30102

43110-30101

Unavailable

8

PEDAL, BRAKE | M

43110-30102

Unavailable

9

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

10

SPRING

09443-14008

Unavailable

11

BOLT

09100-06003

Unavailable

12

.NUT This part replaces 08311-11068.

08310-00067

$2.13

13

PIN This part replaces 04111-30208.

04111-3020A

$1.50

14

HOLDER, BRAKE WIRE END | J,K,L

43221-16501

Unavailable

15

WASHER | J,K,L

09160-08020

Unavailable

16

CITTER PIN | J,K,L This part replaces 04111-25208.

04111-2520A

$1.49

17

FOOTREST, RH | J

43550-16500

Unavailable

18

FOOTREST, RH | K,L,M

43511-30100

Unavailable

19

FOOTREST, LH | J

43560-16500

Unavailable

20

FOOTREST, LH | K,L,M

43521-30100

Unavailable

21

PIN | J

09200-08024

Unavailable

21

PIN | K,L,M

04322-08308

Unavailable

22

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

23

BRAKE CABLE

58510-16501

Unavailable

24

BOOT

09287-05001

Unavailable

25

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

26

.NUT This part replaces 09150-06001.

09150-06010

$3.10

27

PIN

09200-06013

$2.00

28

WASHER This part replaces 08322-21068.

08322-01067

$2.13

29

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
