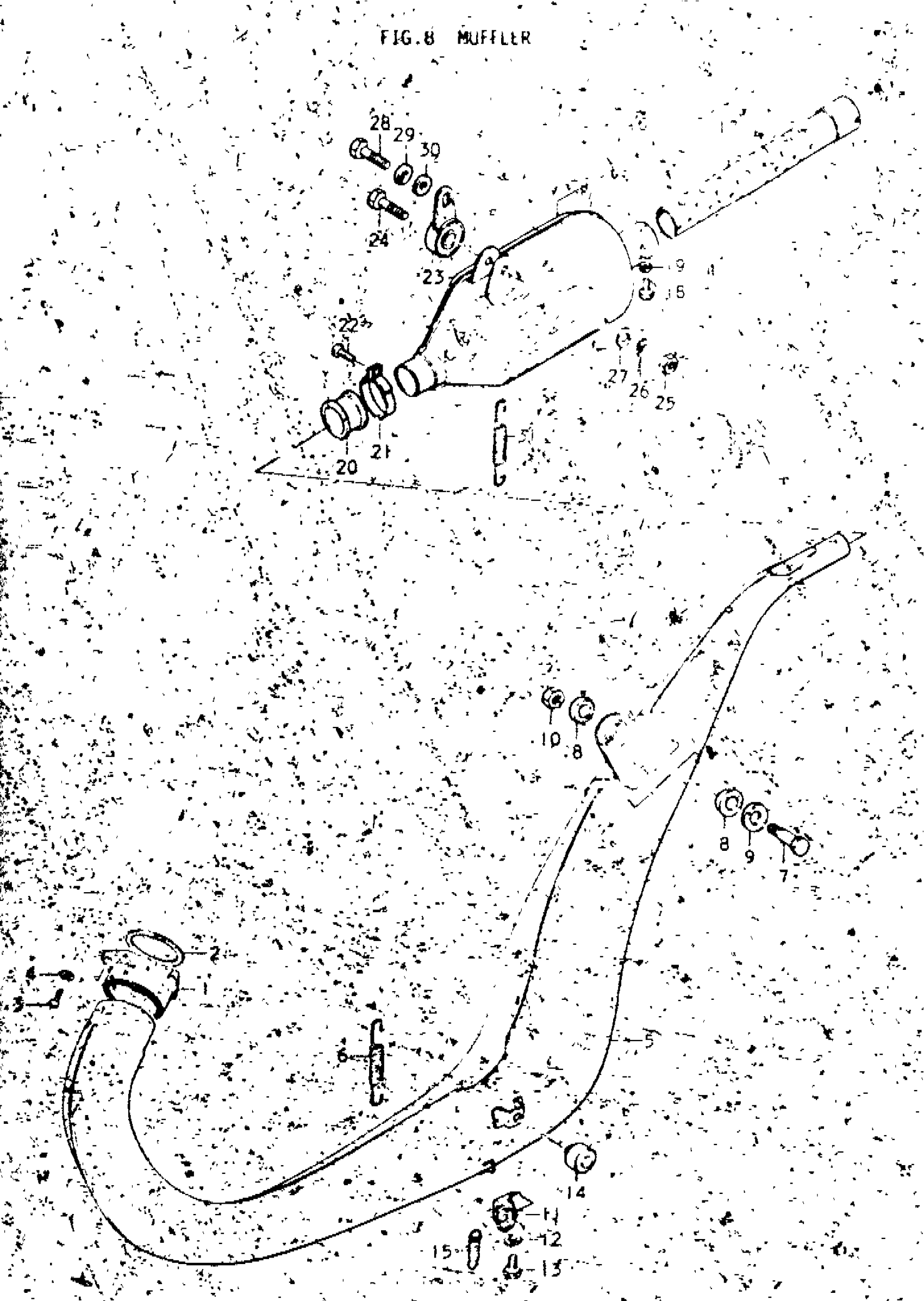

Suzuki TM250 (1975) MUFFLER Diagram

#

Description
Price

1

FLANGE, EXHAUST PIPE | L,M

14170-16500

Unavailable

2

GASKET,EXHAUST | L,M This part replaces 14181-15010.

14181-15020

Unavailable

3

SCREW | L,M This part replaces 02112-06208.

02112-06207

$1.78

4

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

5

MUFFLER, 1ST | L; TO 14310-30621

14310-30620

Unavailable

5

NO DESCRIPTION AVAILABLE | M This part replaces 14310-30621.

14310-30621-H01

Unavailable

6

SPRING | L,M

09443-11002

$3.10

7

BOLT, MUFFLER SUPPORT FRONT | L,M

09111-08009

Unavailable

8

CUSHION, MUFFLER SUPPORT | L,M

09320-12012

Unavailable

9

WASHER | L,M; FROM 09160-08018 This part replaces 09160-08030.

09160-08128

$2.80

10

NUT | L,M This part replaces 08312-31088.

08310-00087

$2.13

11

BRACKET, MUFFLER STOPPER | L,M

14476-28000

Unavailable

12

LOCK WASHER | L,M This part replaces 08321-21068.

08321-01067

$2.13

13

BOLT | L,M This part replaces 01112-06108.

01500-06107

$2.06

14

CUSHION, MUFFLER SUPPORT | L,M

09321-10002

$2.22

15

SPRING, MUFFLER SUPPORT | L,M

09443-14002

$2.12

16

MUFFLER, 2ND | L,M

14303-30620

Unavailable

17

PIPE BAFFLE | L,M

14510-30620

Unavailable

18

SCREW | L,M

09128-06013

$1.49

19

LOCK WASHER | M This part replaces 08321-21068.

08321-01067

$2.13

20

CONNECTOR MUFFLER | L,M

14771-30400

Unavailable

21

CLAMP | L; TO 09402-33601

09402-34601

Unavailable

21

CLAMP | M

09402-33601

Unavailable

22

SCREW | L,M This part replaces 02112-06208.

02112-06207

$1.78

23

CUSHION, MUFFLER | L,M This part replaces 14770-25740.

14770-16441

Unavailable

24

BOLT | L,M This part replaces 01122-08308.

01500-08307

$3.04

25

NUT | L,M This part replaces 08312-11088.

08310-00087

$2.13

26

.LOCK WASHER | L,M This part replaces 08321-21088.

08321-01087

$2.13

27

WASHER | L,M This part replaces 08322-11088.

08322-01087

$2.13

28

PLUG, DRAIN | L,M This part replaces 01122-08168.

01500-0816B

$2.50

29

.LOCK WASHER | L,M This part replaces 08321-21088.

08321-01087

$2.13

30

WASHER | L,M This part replaces 08322-21088.

08322-01087

$2.13

31

SPRING | L,M

09443-11002

$3.10
