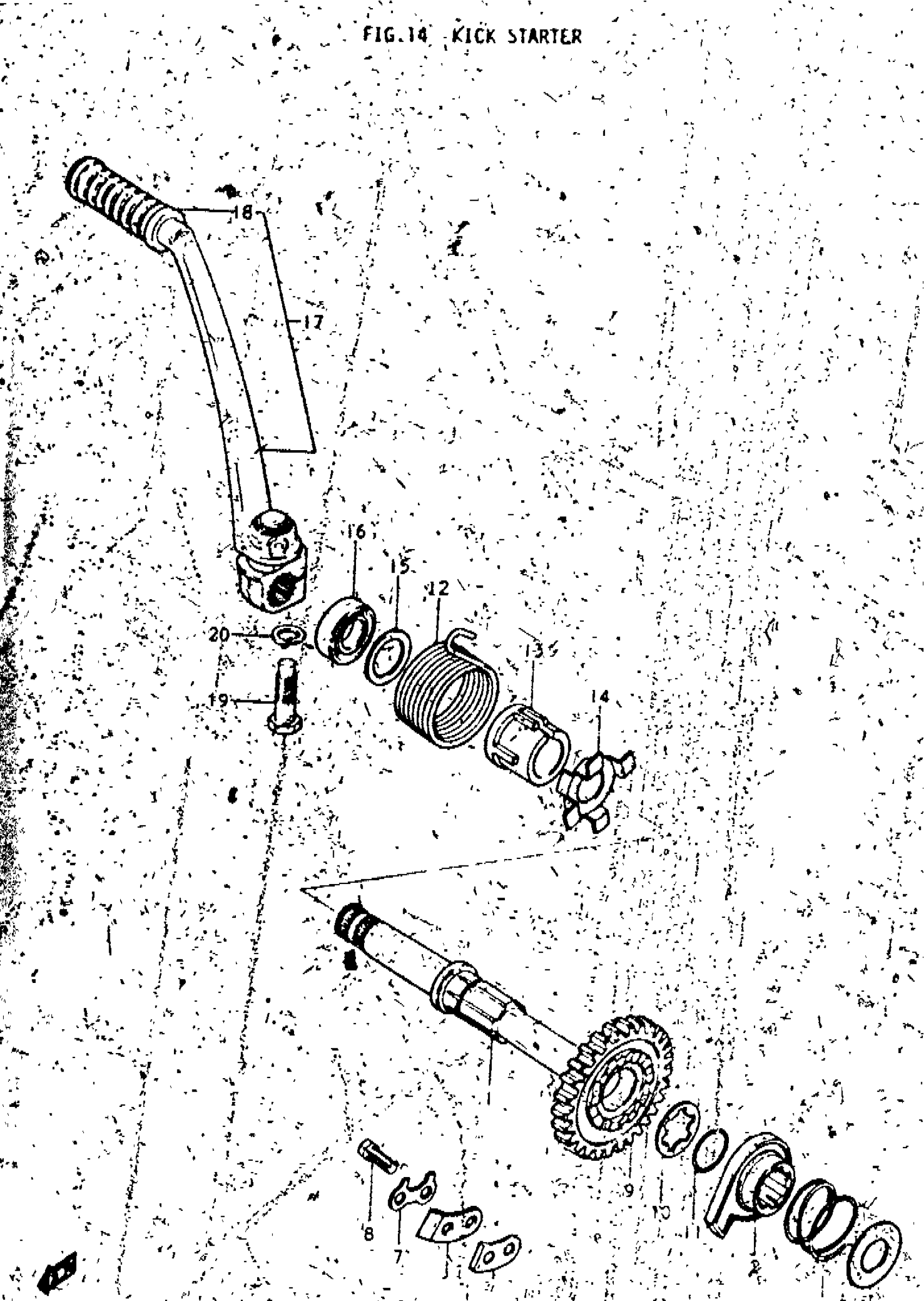

Suzuki TM250 (1975) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-30000

Unavailable

2

STARTER, KICK This part replaces 26231-30000.

26231-22A10

$63.88

3

SPRING

09440-32002

$2.27

4

THRUST WASHER

08211-17342

$2.72

5

GUIDE, KICK STARTER

26232-30000

Unavailable

6

STOPPER, KICK STARTER

26233-30000

Unavailable

7

WASHER

09169-06003

$1.78

8

BOLT This part replaces 01112-06128.

01500-06127

$1.97

9

GEAR, KICK STARTER DRIVE | J; NT;27 TO 26241-30001 USED WITH09448-47002

26241-30000

Unavailable

9

GEAR, KICK STARTER DRIVE | K,L,M; NT:27

26241-30001

Unavailable

10

WASHER

09167-22007

Unavailable

11

CIRCLE

09380-22003

$1.92

12

SPRING

09448-47002

Unavailable

13

GUIDE, SPRING

26221-30000

Unavailable

14

HOLDER, SPRING

26222-30000

Unavailable

15

WASHER

08212-20361

Unavailable

16

OIL SEAL (20X37X7) | FROM 09283-20005

09283-20025

$5.64

17

LEVER ASSY, KICK STARTER | J,K,L; TO 26300-30102 CHROME PLATEDZINK PLATED This part replaces 26300-30101.

26300-30102

Unavailable

17

LEVER ASSY, KICK STARTER | M

26300-30102

Unavailable

18

RUBBER,KICK STA This part replaces 26352-16401.

26352-16402

$3.56

19

BOLT

09135-10002

Unavailable

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84
