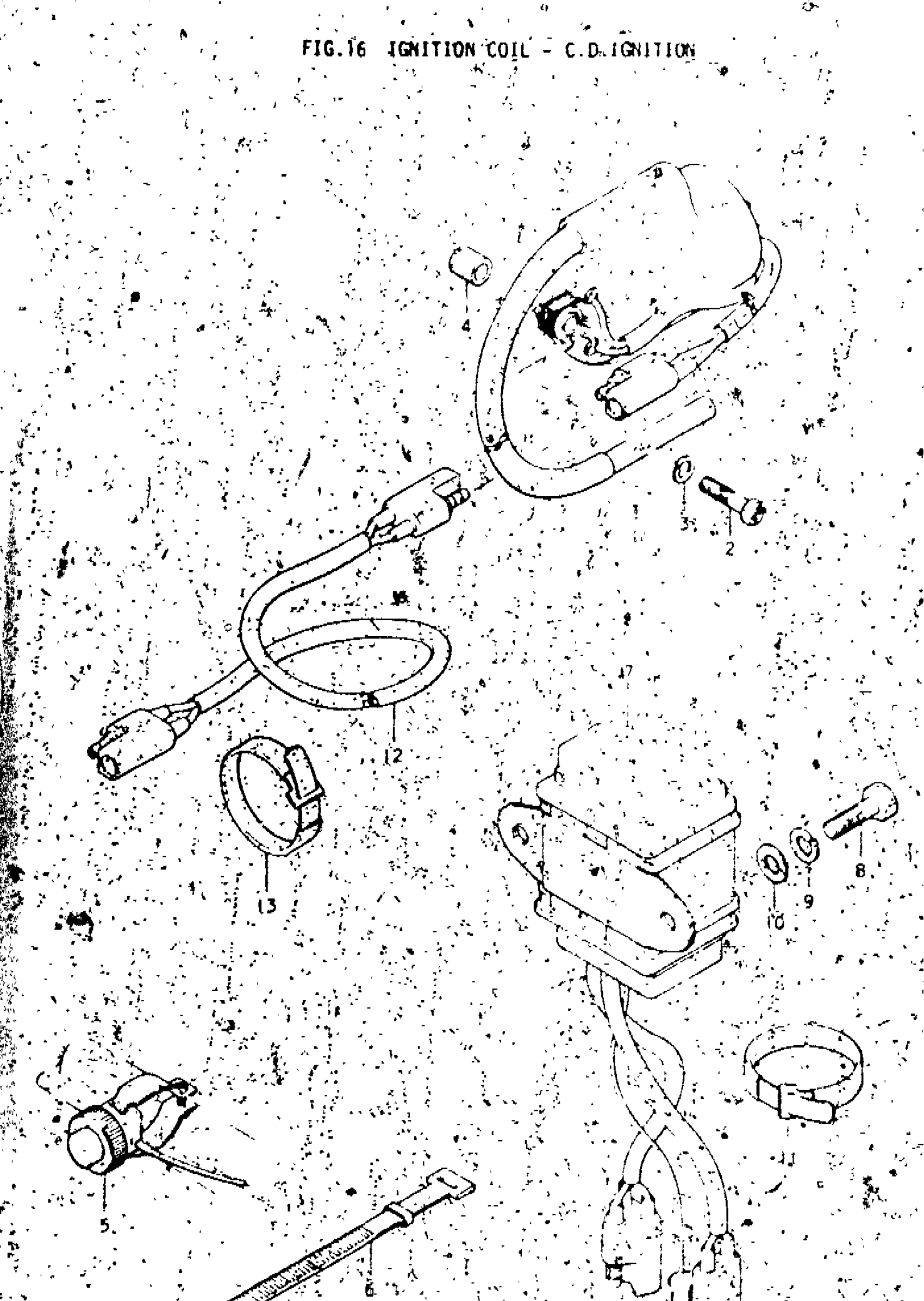

Suzuki TM250 (1975) IGNITION COIL - C.P. IGNITION Diagram

#

Description
Price

1

COIL ASSY, IGNITION This part replaces 33410-30020.

33410-14120

$105.41

2

SCREW This part replaces 02112-05308.

02112-0530A

$1.93

3

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

4

SPACER

09180-05008

Unavailable

5

SWITCH ASSY, ENGINE STOP This part replaces 37820-16510.

37820-14X50

$44.43

6

CLAMP | J,K; BLACKL; BLACK

09407-12402

$2.80

6

CLAMP | L,M; WHITE

09407-12401

Unavailable

7

C.D. IGNITION UNIT

31900-30120

Unavailable

8

BOLT This part replaces 09128-06006.

09128-06057

$1.64

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

10

WASHER This part replaces 08322-21068.

08322-01067

$1.86

11

CLAMP This part replaces 09407-14301.

09407-18302

$2.27

12

WIRE, C.D.I.UNIT

31901-30100

Unavailable

13

CLAMP | J,K,LM This part replaces 09407-14301.

09407-18302

$2.27
