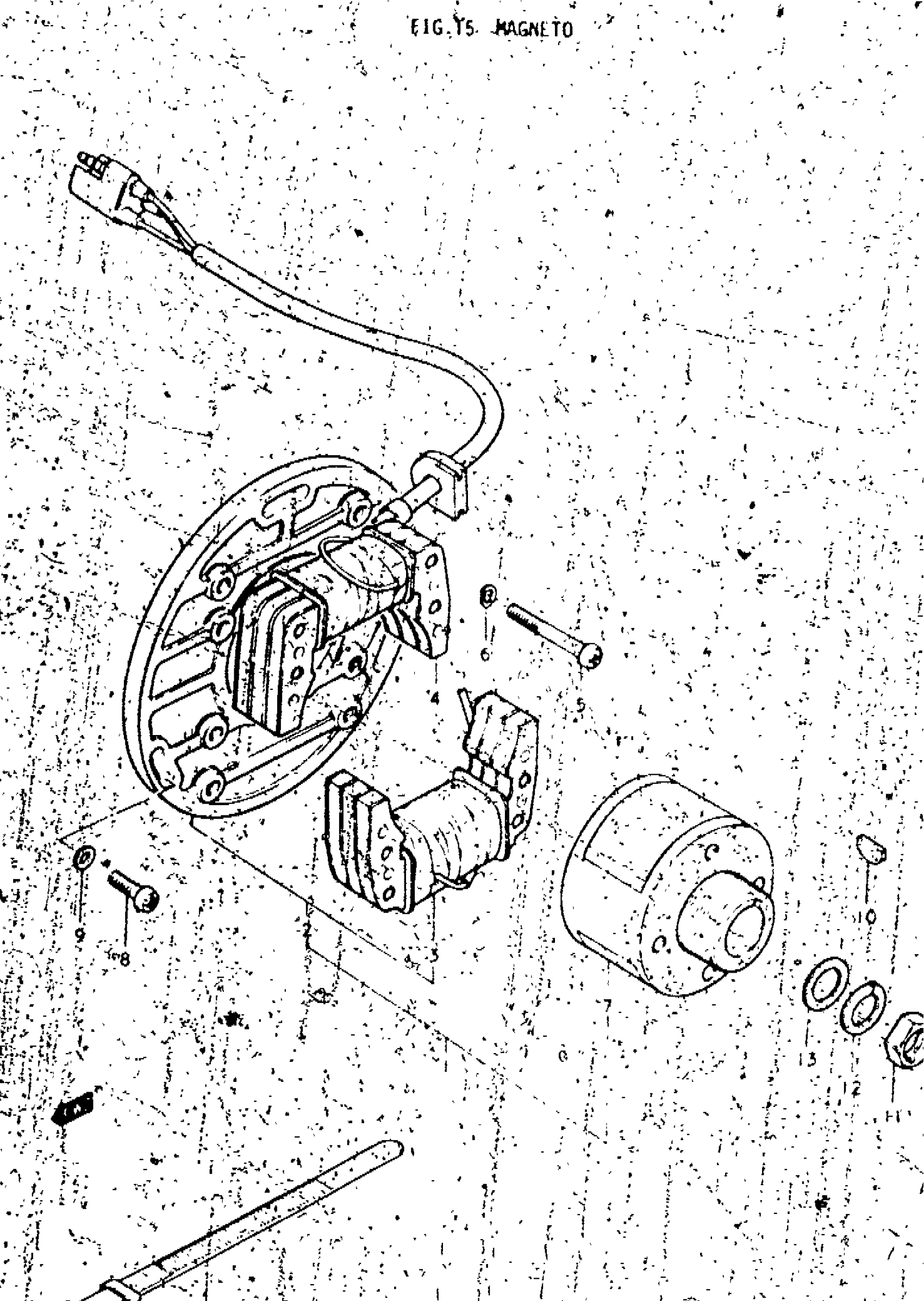

Suzuki TM250 (1975) MAGNETO Diagram

#

Description
Price

1

MAGNE TO ASSY

32100-30701

Unavailable

2

STATOR ASSY

32101-30701

Unavailable

3

COIL, PRIMARY

32140-16521

Unavailable

4

COIL, PULSER

32150-16521

Unavailable

5

SCREW This part replaces 02112-05308.

02112-0530A

$1.93

6

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

7

ROTOR

32102-30700

Unavailable

8

SCREW This part replaces 02112-05168.

02112-05167

$1.97

9

WASHER This part replaces 08322-21058.

08322-01057

$1.86

10

KEY This part replaces 08341-31049.

09420-04008

$3.08

11

NUT This part replaces 08312-11148.

08310-0014A

$3.48

12

WASHER,LOCK This part replaces 08321-21148.

08321-0114A

$2.12

13

WASHER | 14x27x3

09160-14015

Unavailable

14

CLAMP | J,K

09407-12402

$2.80
