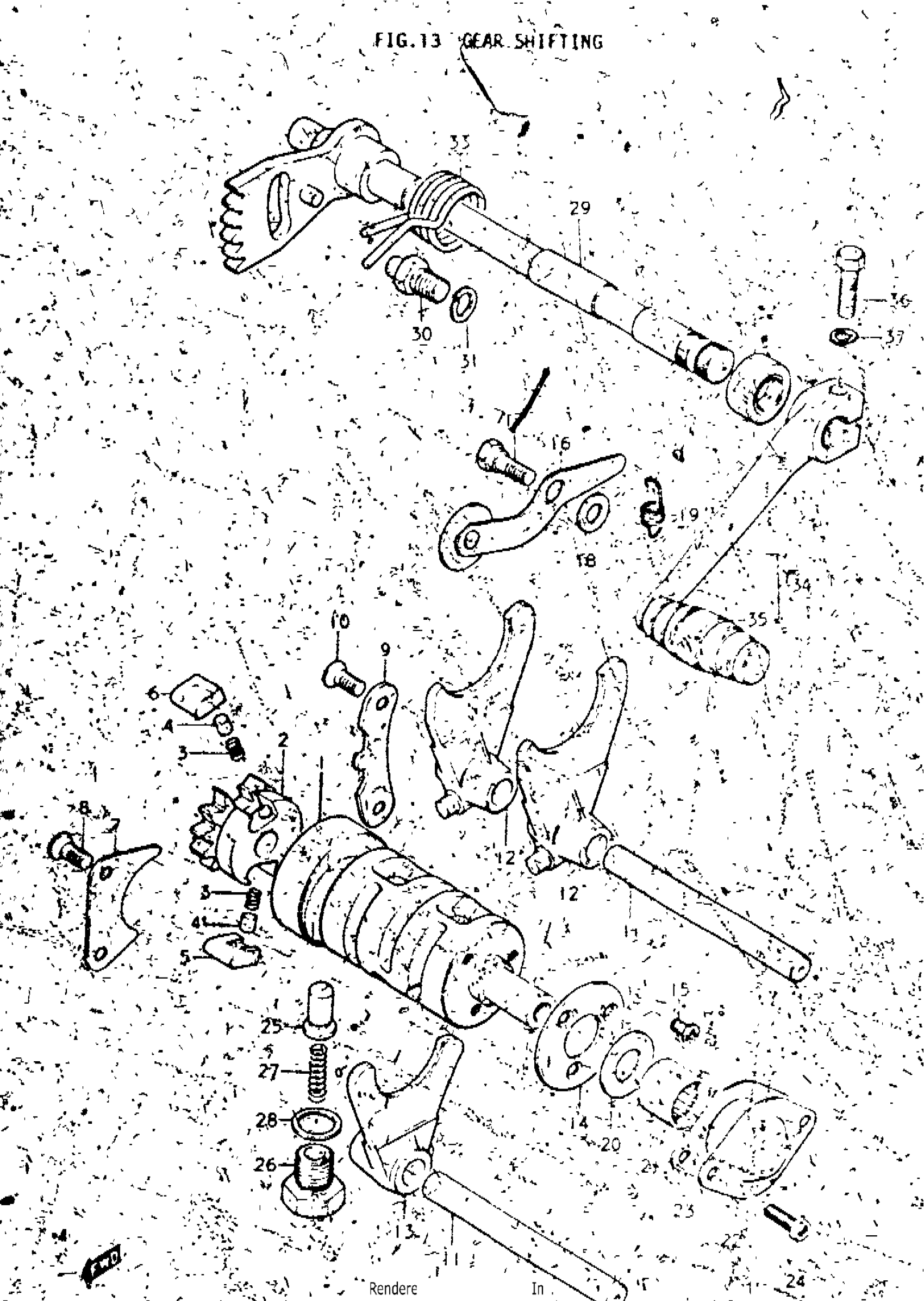

Suzuki TM250 (1975) GEAR SHIFTING Diagram

#

Description
Price

1

CAM, GEAR SHIFTING

25310-30000

Unavailable

2

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$26.93

3

SPRING

09440-04003

$1.54

4

PIN

09261-05003

$1.54

5

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$7.22

6

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$7.22

7

LIFTER, GR SHIFT POLE This part replaces 25331-30000.

25331-30001

Unavailable

8

SCREW This part replaces 02121-06108.

02122-0610A

$1.68

9

GUIDE, SHIFTING CAM

25341-11000

Unavailable

10

SCREW This part replaces 02121-06108.

02122-0610A

$1.68

11

SHAFT, GEAR SHIFT FORK NO.2 This part replaces 25411-30000.

25411-14311

$23.07

12

FORK, GEAR SHIFTING A

25211-30001

Unavailable

13

FORK, GEAR SHIFTING B

25231-30000

Unavailable

14

PLATE, CAM STOPPER This part replaces 25381-20000.

25381-20001

Unavailable

15

.SCREW This part replaces 02121-04127.

02122-0412A

$1.93

16

STOPPER, CAM This part replaces 25350-30000.

25350-30001

Unavailable

17

BOLI

09111-06003

Unavailable

18

WASHER | J; 6.5x13x1

09160-06008

Unavailable

18

WASHER | K,L,M This part replaces 08322-21068.

08322-01067

$2.13

19

SPRING

09443-10007

Unavailable

20

THRUST WASHER

08211-12253

Unavailable

21

BEARING

09263-12009

Unavailable

22

GAP, GEAR SHIFTING CAM

11451-16500

Unavailable

23

GASKET, SHIFTING CAM CAP

11452-16500

Unavailable

24

SCREW This part replaces 02111-05127.

02112-05127

$1.97

25

STOPPER, GEAR SHIFT CAM NO.2 This part replaces 25351-30000.

25351-30010

$11.95

26

HOLDER, STOPPER SPRING

25354-30000

$9.17

27

SPRING

09440-06014

Unavailable

28

GASKET

09168-14004

$1.83

29

NO DESCRIPTION AVAILABLE This part replaces 25510-30000.

25510-30X00

Unavailable

30

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

33

SPRING

09444-26004

$4.45

34

LEVER ASSY,GEAR This part replaces 25600-16500.

25600-16521

$49.59

35

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

36

BOLT This part replaces 01112-06208.

01500-06207

$2.28

37

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
