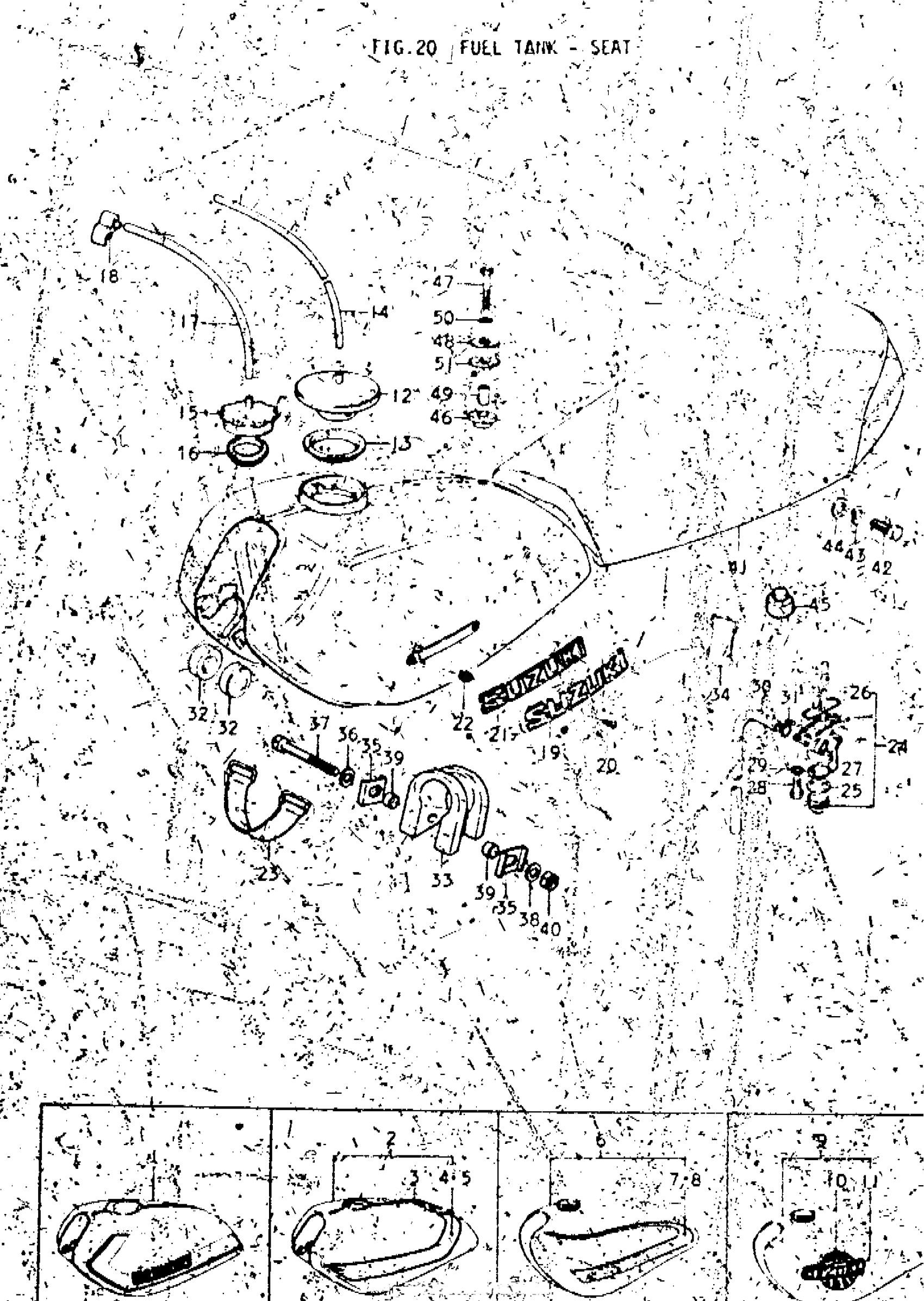

Suzuki TM250 (1975) FUEL TANK - SEAT Diagram

TANK, FUEL | J

44100-30860-584

Unavailable

TANK, FUEL | K; Includes Item(s) 3 - 5

44110-30827-163

Unavailable

EMBLEM, FUEL TANK CENTER | K

68118-16500-722

Unavailable

NO DESCRIPTION AVAILABLE | K This part replaces 68115-30600-722.

68100-30830-722

Unavailable

NO DESCRIPTION AVAILABLE | K This part replaces 68125-30600-722.

68100-30830-722

Unavailable

TANK, FUEL | L; Includes Item(s) 7 - 8

44110-32600-163

Unavailable

NO DESCRIPTION AVAILABLE | L This part replaces 68115-32101-722.

68100-32820-722

Unavailable

NO DESCRIPTION AVAILABLE | L This part replaces 68125-32101-722.

68100-32820-722

Unavailable

TANK, FUEL | M; Includes Item(s) 10 - 11

44110-32610-163

Unavailable

NO DESCRIPTION AVAILABLE | M This part replaces 68115-26620-722.

68115-26621-722

Unavailable

NO DESCRIPTION AVAILABLE | M This part replaces 68111-26610-019.

68111-27610-019

Unavailable

CAP, FUEL TANK | J,K

44210-16500

Unavailable

GASKET, FUEL TANK CAP | J,K

44248-11000

Unavailable

HOSE | J,K This part replaces 09343-05043.

09352-50005-00B

$13.93

CAP ASSY, FUEL TANK | L,M

44200-28300

Unavailable

GASKET, FUEL TANK CAP | L,M

44248-28300

Unavailable

HOSE,5X10X600 | L,M This part replaces 09343-05031.

44421-13ER0

$10.06

CLAMP | L,M This part replaces 44486-32100.

44486-32101

$3.65

EMBLEM, FUEL TANK | J

68111-18600

Unavailable

SCREW | J This part replaces 02131-03067.

02122-03067

$1.80

EMBLEM, FUEL TANK | K

68111-28600

Unavailable

NUT FUEL TANK EMBLEM | K

09148-04005

Unavailable

BAND, FUEL TANK FRONT | J,K

09462-00007

$4.11

COCK ASSY,FUEL | J,K,L; TO 44300-22571 This part replaces 44300-22570.

44300-13275

$45.80

COCK ASSY,FUEL | M; Includes Item(s) 25 - 27 This part replaces 44300-22571.

44300-13275

$45.80

O-RING This part replaces 44346-28070.

44346-28071

$2.40

FILTER SET | J,K,L This part replaces 44300-28817.

44300-28818

$10.50

FILTER SET | M

44300-28818

$10.50

CLEANER

44344-28070

Unavailable

SCREW | J; L:16 TO 09128-06005 This part replaces 09128-06002.

02162-0616B

$2.03

SCREW | K,L; L:16 This part replaces 09128-06005.

02162-0616B

$2.03

BOLT | J,K,L; L:20 This part replaces 09128-06006.

09128-06057

$1.65

GASKET (5.8X13X1.2) | J; FROM, 09161-06009K,L,M This part replaces 09168-06010.

09168-06023

$2.35

HOSE,5X10X600 | J,K; L:220 This part replaces 09343-05031.

44421-13ER0

$10.06

.HOSE | L This part replaces 09343-05025.

09352-50006-600

$7.48

.HOSE | M This part replaces 09343-05018.

09352-50006-600

$7.48

CLIP

09401-08401

$1.54

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

CUSHION, FUEL TANK REAR

44541-30000

Unavailable

BAND, FUEL TANK REAR | J,K

09462-00064

Unavailable

PLATE, REAR CUSHION

44549-30000

Unavailable

CUSHION, FUEL TANK REAR LOWER | K

09320-12020

Unavailable

BOLT | J,K This part replaces 01112-06508.

01500-06507

$3.03

BOLT | L,M This part replaces 01112-06128.

01500-06127

$1.97

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

SPACER | 6.1x8x5.2 This part replaces 09180-06032.

09180-06246

$2.12

.NUT | J,K This part replaces 08311-11068.

08310-00067

$2.13

SEAL | J,K

45100-16501-479

Unavailable

NO DESCRIPTION AVAILABLE | L; TO 45100-28301-403 This part replaces 45100-28300-403.

45100-28301-865

Unavailable

NO DESCRIPTION AVAILABLE | M This part replaces 45100-28301-403.

45100-28301-865

Unavailable

BOLT, REAR This part replaces 01122-08208.

01500-08207

$2.53

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

WASHER This part replaces 08322-21088.

08322-01087

$2.13

CUSHION, SEAT | M

09321-10001

$2.61

CUSHION, FUEL TANK REAR | L,M

09320-12013

$2.60

BOLT | L,M This part replaces 01122-08358.

01500-0835B

$3.04

WASHER, MUFFLER SUPPORT | L,M This part replaces 09160-08001.

09160-08503

$2.50

SPACER 8.2X12X1 | L,M This part replaces 09180-08049.

09180-08143

$3.77

.LOCK WASHER | L,M This part replaces 08321-21088.

08321-01087

$2.13

CUSHION, FUEL TANK REAR LOWER | L,M

09320-12020

Unavailable
