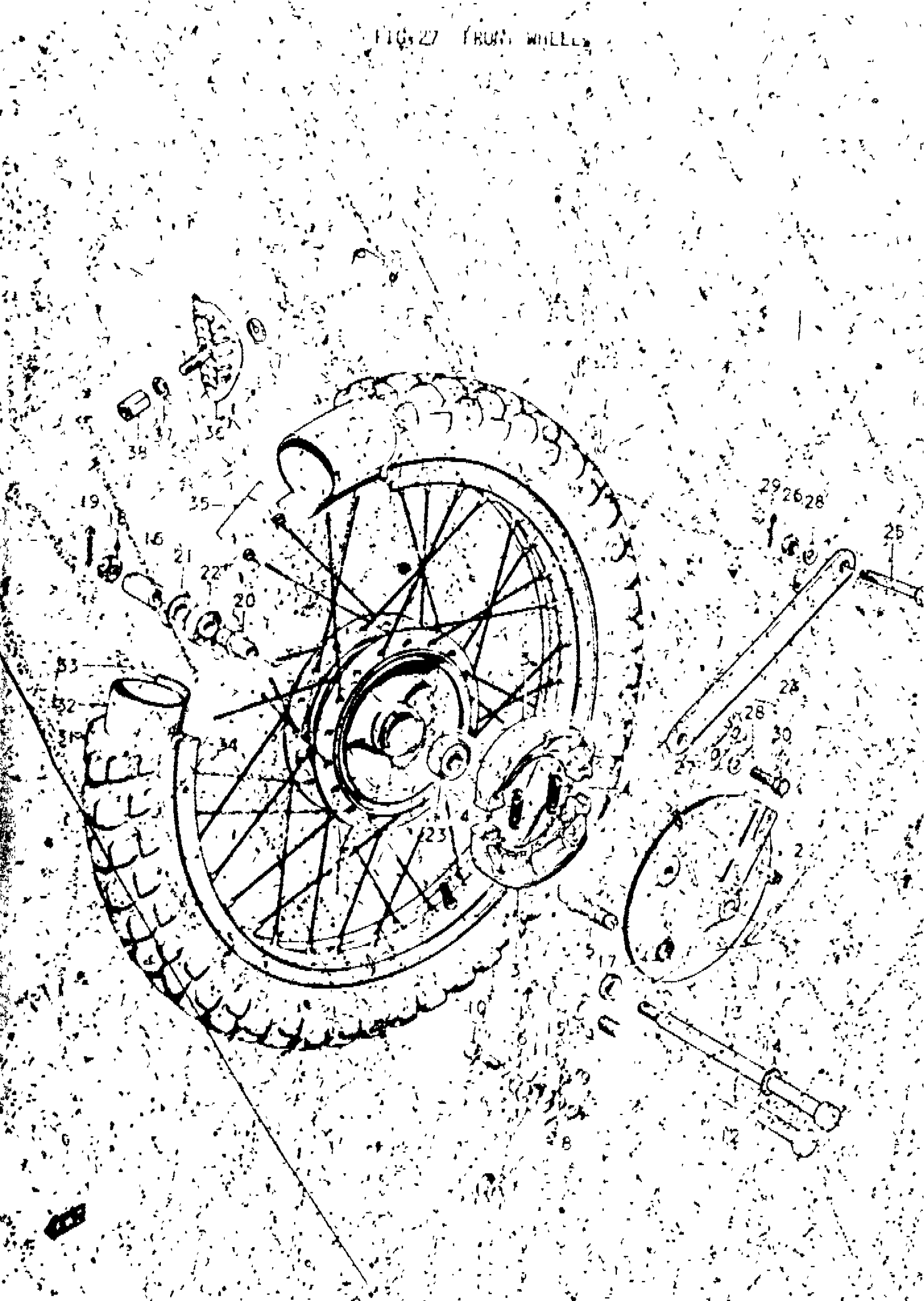

Suzuki TM250 (1975) FRONT WHEEL Diagram

#

Description
Price

0

WHEEL SET, FRONT | TO 54100-16860INCLUDES REF. NOS.1,20-23,AND 35

50001-16826

Unavailable

0

WHEEL SET, FRONT | INCLUDES REF. NOS.1,20-23,AND 35

54100-16860

Unavailable

0

WHEEL SET, FRONT | TO 54100-16841INCLUDES REF. NOS.1,20-23,AND 35

54100-16840

Unavailable

0

WHEEL SET, FRONT | INCLUDES REF. NOS.1,20-23,AND 35

54100-16841

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 54110-16501.

54110-16502

Unavailable

2

PANEL, FRONT HUB | J,K

54210-16500

Unavailable

2

PANEL, FRONT HUB | L,M

54210-32101

Unavailable

3

SHOE SET, BRAKE | J,K,L; TO 54410-07002 This part replaces 54410-07001.

54401-07810

Unavailable

3

SHOE SET, BRAKE | M This part replaces 54410-07002.

54401-07810

Unavailable

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE | J,K; TO 54441-01002

54441-20000

Unavailable

5

CAM, BRAKE | L; TO 54441-01002

54441-32101

Unavailable

5

CAM, BRAKE | M

54441-01002

$18.80

6

O RING

09280-12001

$2.90

7

LEVER, BRAKE CAM

54451-16500

Unavailable

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT This part replaces 08311-11068.

08310-00067

$2.13

10

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

11

WASHER

09160-12011

$1.54

12

AXLE, FRONT | J,K,L This part replaces 54711-16501.

54711-16504

Unavailable

13

AXLE, FRONT | M This part replaces 54711-16502.

54711-16504

Unavailable

14

WASHER | M This part replaces 08322-21128.

08322-01127

$1.84

15

SPACER, FRONT AXLE LH | J,K,L

54721-16501

Unavailable

15

SPACER, FRONT AXLE LH | M

09180-12063

$7.30

16

SPACER, FRONT AXLE RH

54740-16501

Unavailable

17

WASHER, FRONT AXLE LH | M

09180-12058

Unavailable

18

NUT | J,K,L

09141-12002

Unavailable

18

NUT | M

08514-31128

Unavailable

19

PIN This part replaces 04111-20308.

04111-2030A

$1.50

20

SPACER, HUB BEARING

54730-07000

Unavailable

21

SEAL,OIL(17X38X This part replaces 09284-18001.

09284-18006

$5.10

22

BEARING

08113-63010

$19.57

23

B1 12X37X12 BEA This part replaces 08143-63010.

08143-6301B

$19.20

24

LINK, FRONT UPPER | J,K

54311-16500

Unavailable

25

BOLT | J,K

09101-08008

Unavailable

26

NUT | J,K This part replaces 08314-41088.

08314-4008B

$3.03

27

WASHER, TORQUE LINK | J,K

53312-16501

Unavailable

28

WASHER | J,K This part replaces 08322-11088.

08322-01087

$2.13

29

COTTER PIN | J,K

04111-21058

Unavailable

30

BOLT, REAR | J,K This part replaces 01122-08208.

01500-08207

$2.53

31

TIRE, FRONT | J,K,L; 3.00-21 TO 55100-16511

55100-16510

Unavailable

31

TIRE, FRONT | M

55200-16511

$36.73

32

TUBE | J,K,L; 3.00-21 This part replaces 55200-15010.

55200-44611

$33.73

32

TUBE, INNER | M

55200-16500

Unavailable

33

PROTECTOR, INNER TUBE This part replaces 55261-16510.

55261-14540

$3.83

34

RIM, WHEEL | J,K; TO 55311-28322USED WITH 55301-16823

55311-16500

Unavailable

34

RIM, WHEEL | L; E TYPE TO 55311-28322

55311-16501

Unavailable

34

RIM, WHEEL | M; E TYPE TAKASAGO

55311-28322

Unavailable

35

NO DESCRIPTION AVAILABLE | TAKASAGO This part replaces 55301-16823.

55300-41811

Unavailable

35

SPOKE, SET | AKRONT NOT AVAILABLE

55300-30840

Unavailable

36

STOPPER, BEAD This part replaces 65270-30000.

65270-43D00

$58.75

37

WASHER This part replaces 08322-21088.

08322-01087

$2.13

38

NUT

09159-08016

Unavailable
