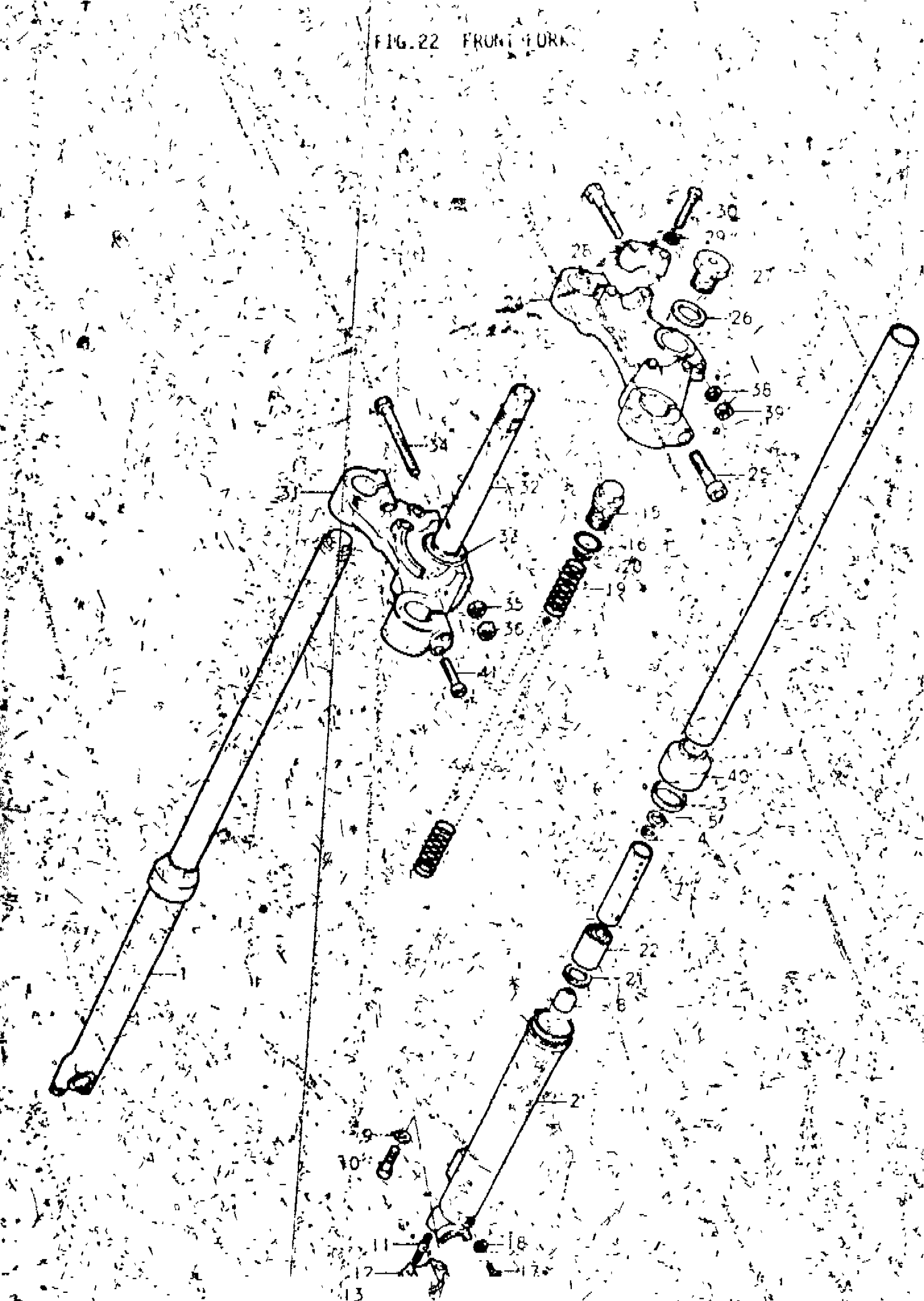

Suzuki TM250 (1975) FRONT FORK Diagram

#

Description
Price

0

FORK ASSY, FRONT | L; TO 51100-32112

51100-32110

Unavailable

0

FORK ASSY, FRONT | M; Includes Item(s) 1 - 41

51100-32112

Unavailable

1

TUBE, OUTER RH | L; TO 51140-32111

51130-32110

Unavailable

1

TUBE, OUTER RH | M; TO 51140-32111

51130-32111

Unavailable

2

TUBE, OUTER LH | L; TO 51140-32411

51140-32110

Unavailable

2

TUBE, OUTER LH | M

51140-32111

Unavailable

3

OIL SEAL | L,M

51153-34010

Unavailable

4

CIRCLIP | M

51156-32110

Unavailable

5

WASHER | M

51158-32110

Unavailable

6

TUBE, INNER | L,M

51111-32110

Unavailable

7

CYLINDER | L

51146-32110

Unavailable

7

CYLINDER | M

51146-32112

Unavailable

8

PIECE, OIL LOCK | L

51195-32110

Unavailable

8

PIECE, OIL LOCK | M This part replaces 51195-32111.

51195-38010

Unavailable

9

GASKET, CYLINDER | L,M

51148-16510

Unavailable

10

BOLT | L,M

51147-16510

$4.34

11

8X45 STUD BOLT | L This part replaces 01421-08458.

01421-0845A

$2.74

11

STUD BOLT (L:30) | M This part replaces 51137-31010.

09108-08142

$3.18

12

BRACKET, FRONT AXIE | L,M

51132-16510

Unavailable

13

WASHER | L

51139-16511

Unavailable

13

WASHER | M This part replaces 08322-21088.

08322-01087

$2.13

14

NUT, CLUTCH RELEASE NO.1 | L,M This part replaces 09140-08005.

09140-08017

$2.27

15

CAP | L,M

51351-32110

Unavailable

16

O RING | L,M

51181-18510

Unavailable

17

SCREW | L,M This part replaces 02111-04087.

02112-04087

$1.49

18

GASKET, DRAIN | L,M

51183-03010

$2.07

19

SPRING | L

51171-32110

Unavailable

19

SPRING | M

51171-32112

Unavailable

20

GUIDE, SPRING | L

51172-16510

Unavailable

20

GUIDE, SPRING | M

51172-34110

Unavailable

21

CIRCLIP | L

51118-16510

Unavailable

21

CIRCLIP | M

51118-16511

Unavailable

22

PISTON | L

51112-16510

Unavailable

22

PISTON | M

51112-16511

Unavailable

23

.LOCK WASHER | L,M This part replaces 08321-21088.

08321-01087

$2.13

24

HEAD, STEERING STEM | L,M

51311-32110

Unavailable

25

BOLT | L

51451-28310

Unavailable

25

BOLT | M

09106-10001

Unavailable

26

WASHER | L,M

51356-28310

Unavailable

27

BOLT | L,M

51351-28310

Unavailable

28

HOLDER, HANDLE | L,M

56211-27110

Unavailable

29

.LOCK WASHER | L,M This part replaces 08321-21088.

08321-01087

$2.13

30

BOLT | L,M

01221-08358

Unavailable

31

STEM, STEERING | L,M

51411-32110

Unavailable

32

SHAFT, STEERING STEM | L,M

51401-32110

Unavailable

33

RACE, INNER, LOWER | L,M This part replaces 51611-33001.

51611-33002

$13.81

34

BOLT | L,M This part replaces 01122-10608.

01500-1060A

$4.41

35

LOCK WASHER | L,M This part replaces 08321-21108.

08321-01107

$1.84

36

NUT | L,M This part replaces 08312-11108.

08310-00107

$2.19

37

BOLT | L

51451-15010

Unavailable

37

BOLT | M This part replaces 01122-10508.

01500-1050A

$3.78

38

LOCK WASHER | L,M This part replaces 08321-21108.

08321-01107

$1.84

39

NUT | L,M This part replaces 08312-11108.

08310-00107

$2.19

40

DUST SEAL | L,M

51173-32110

Unavailable

41

BOLT | L,M

51456-28310

Unavailable
