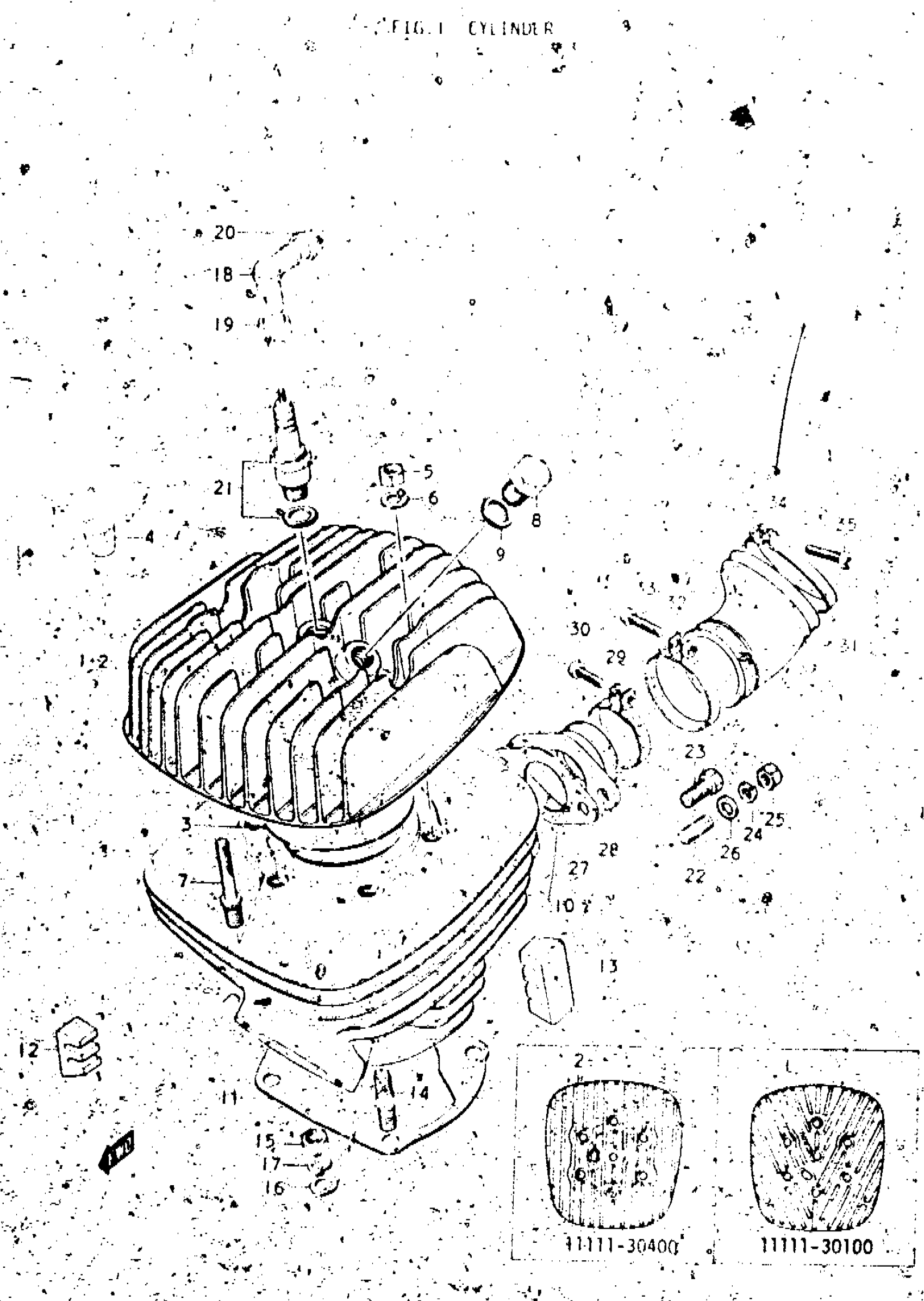

Suzuki TM250 (1975) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | J,K

11111-30100

Unavailable

2

CYLINDER HEAD | L,M; STRAIGHT FINE

11111-30400

Unavailable

3

GASKET, CYLINDER HEAD

11141-16300

Unavailable

4

PAD, CYLINDER HEAD | J,K This part replaces 11151-25000.

11252-25000

$4.52

5

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

6

WASHER This part replaces 08322-21088.

08322-01087

$2.13

7

STUD BOLT

09108-08018

$3.18

8

PLUG, DRAIN This part replaces 09247-14007.

09247-14025

$2.79

9

GASKET, CYLINDER HEAD PLUG

09168-14004

$1.83

10

CYLINDER | J,K

11210-30100

Unavailable

10

CYLINDER | L,M

11210-30400

Unavailable

11

GASKET,CYLINDER This part replaces 11241-30000.

11241-30001

Unavailable

12

RUBBER PAD, CYLINDER LH | J,K This part replaces 11251-16400.

11261-16400

Unavailable

13

PAD, CYLINDER LH | J,K

11261-16400

Unavailable

14

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

15

NUT This part replaces 08312-11108.

08310-00107

$2.19

16

WASHER This part replaces 08322-11108.

08322-01107

$2.15

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

CAP, SPARK PLUG | J,K; TO 33510-28300 This part replaces 33510-26700.

33510-28300

Unavailable

18

CAP ASSY, SPARK PLUG | L,M

33510-28300

Unavailable

19

SEAL, SPARK PLUG | J,K; FROM 33541-22000

33541-69010

$4.37

20

SEAL, HIGH TENSION CORD | J,K

33542-26700

Unavailable

21

SPARK PLUG | J,K,M; NGK,B-8ES This part replaces 09482-00056.

09482-00091

$3.01

21

SPARK PLUG ASSY | K,M; W24E5

09482-00047

Unavailable

21

SPARK PLUG ASSY | W22ES

09482-00046

Unavailable

21

SPARK PLUG ASSY | J; OPT NGK,B-7ESL; NGK,B-7ES

09482-00055

Unavailable

21

SPARK PLUG | J; B-77EC,OPT This part replaces 09482-00029.

09482-00091

$3.01

22

STUD BOLT | J,K,L This part replaces 01421-08168.

01421-0816A

$1.78

23

BOLT, REAR | M This part replaces 01122-08208.

01500-08207

$2.53

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

25

NUT | J,K,L This part replaces 08312-11088.

08310-00087

$2.13

26

WASHER | L This part replaces 08322-11088.

08322-01087

$2.13

27

GASKET, PIPE 1

13125-15000

Unavailable

28

PIPE, INTAKE

13110-16500

Unavailable

29

CLAMP This part replaces 09402-00246.

09402-52306

$4.91

30

SCREW This part replaces 02111-05207.

02112-05207

$1.97

31

HOSE, CARBURETOR INLET | J,K,L; TO 13881-30711

13881-30710

Unavailable

31

HOSE, CARBORETOR INLET | M

13881-30711

Unavailable

32

CLAMP | J,K,L,M; FROM 09402-00092

09402-06306

Unavailable

33

SCREW | J,K,L; USED TO 09402-00092 This part replaces 02111-05257.

02112-05257

$1.49

34

CLAMP | J,K,L,M; FROM 09402-00213

09402-80306

Unavailable

35

SCREW | J,K,L,M This part replaces 02111-05207.

02112-05207

$1.97
