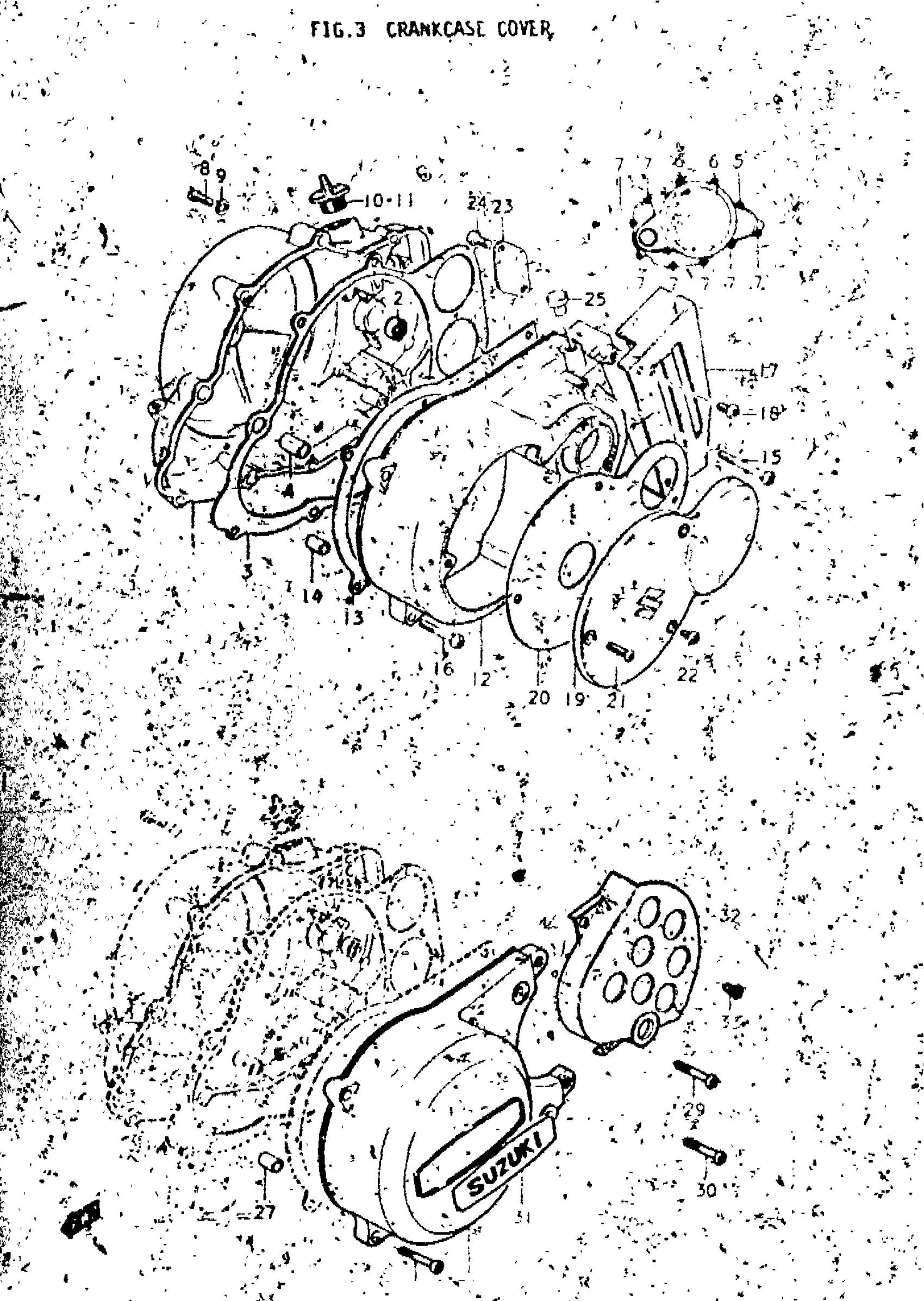

Suzuki TM250 (1975) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | J

11341-30100

Unavailable

1

COVER, CLUTCH | K,L; TO 11300-30851USED WITH 09259-19002

11300-30826

Unavailable

1

NO DESCRIPTION AVAILABLE | K,L This part replaces 11300-30851.

11300-38840

Unavailable

1

NO DESCRIPTION AVAILABLE | M This part replaces 11341-30703.

11300-38840

Unavailable

2

BEARING | K,L,M

09263-20015

Unavailable

3

GASKET,CLUTCH C | J,K,L; TO 11482-30001 This part replaces 11482-30000.

11482-30002

Unavailable

3

GASKET,CLUTCH C | M This part replaces 11482-30001.

11482-30002

Unavailable

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

6

SCREW This part replaces 02112-06358.

02112-06357

$1.78

7

SCREW This part replaces 02112-06258.

02112-06257

$1.78

8

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

9

GASKET

09168-06001

$1.49

10

PLUG SET | J,K,L This part replaces 09259-20003.

09200-20811

$4.02

11

PLUG | M This part replaces 09259-19002.

09259-19005

$2.98

12

COVER, MAGNETO | J,K

11351-30100

Unavailable

13

GASKET, MAGNETO COVER

11483-30000

Unavailable

14

DOWEL PIN | J,K

04211-09129

$1.65

15

6X50 CROSS SCRE | J,K This part replaces 02112-06508.

02112-06507

$1.99

16

SCREW | J,K This part replaces 02112-06258.

02112-06257

$1.78

17

COVER, ENGINE SPROCKET | J,K

11361-30100

Unavailable

18

SCREW | J,K

02112-05107

$1.49

19

CAP, MAGNETO INSPECTION | J,K; TO 11381-30101

11381-30100

Unavailable

19

CAP, MAGNETO INSPECTION | K

11381-30101

Unavailable

20

GASKET, MAGNETO GAP | J,K

11491-30000

Unavailable

21

SCREW | J,K This part replaces 02111-05207.

02112-05207

$1.97

22

SCREW | J,K This part replaces 02112-05168.

02112-05167

$1.97

23

CAP, CLUTCH RELEASE BOSS | K

11387-30700

Unavailable

24

SCREW | K This part replaces 02112-06128.

02112-06127

$1.84

25

PLUG | K This part replaces 09250-06001.

09250-06005

$2.15

26

COVER, MAGNETO | L,M

11351-30700

Unavailable

27

DOWEL PIN | L

04211-09129

$1.65

28

SCREW | L,M This part replaces 02112-06258.

02112-06257

$1.78

29

SCREW | L,M This part replaces 02112-06208.

02112-06207

$1.78

30

SCREW | L,M

02112-06307

$1.97

31

EMBLEM, MAGNETO | L,M

68233-28300

Unavailable

32

COVER, ENGINE SPROCKET | L,M

11361-30700

Unavailable

33

SCREW | L,M

02112-05107

$1.49
