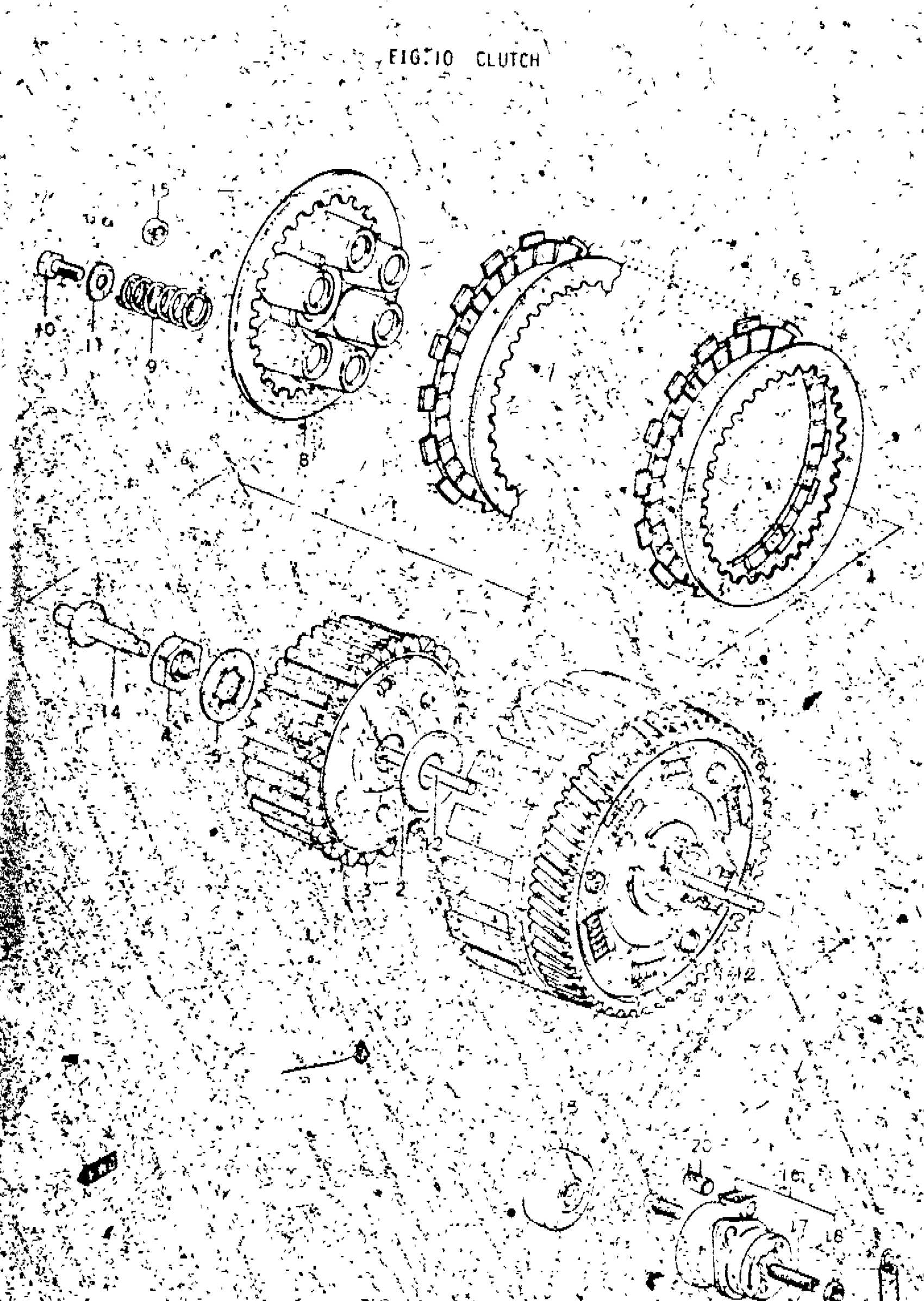

Suzuki TM250 (1975) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN | K,L; TO 21200-30102

21200-30101

Unavailable

1

GEAR, PRIMARY DRIVEN | M

21200-30102

Unavailable

2

THRUST WASHER | K,L,M; 20X44X3

09160-20015

$5.88

3

HUB, SLEEVE | K,L,M This part replaces 21411-30000.

21411-30001

Unavailable

4

NUT | K,L,M This part replaces 09140-20002.

09140-20001

$3.37

5

LOCK WASHER | K,L,M This part replaces 09167-20006.

09167-20009

$2.03

6

PLATE, CLUTCH DRIVE NO.2 | K,L,M This part replaces 21441-16500.

21442-37401

$18.67

7

PLATE, CLUTCH DRIVEN | K,L,M

21451-31000

$10.40

8

PLATE, PRESSURE | K,L,M This part replaces 21462-16500.

21462-14301

$59.33

9

SPRING | K,L,M This part replaces 09440-19003.

09440-19027

$5.10

10

BOLT, CANISTER | K,L,M This part replaces 01112-06168.

01500-06167

$1.97

11

WASHER (6.5X20X1.6) | K,L,M This part replaces 09160-06020.

09160-06066

$1.89

12

NO DESCRIPTION AVAILABLE | K,L,M This part replaces 23165-16500.

23165-16502

Unavailable

13

BEARING | K,L,M

09263-15003

$8.29

14

WASHER, CLUTCH PUSH | K,L,M This part replaces 09160-15015.

09160-15045

$3.89

15

E-RING | K,L,M This part replaces 08332-11128.

08332-1112A

$2.15

16

PINION, RELEASE | K,L,M This part replaces 23261-16500.

23261-16501

Unavailable

17

OIL SEAL (12X22X9) | K,L,M This part replaces 09285-12002.

09285-12006

$6.32

18

BOLT | K,L,M

09135-06009

$2.23

19

WASHER | K,L,M This part replaces 08322-21068.

08322-01067

$2.13

20

ARM, RELEASE | K,L,M This part replaces 23271-16500.

23271-45400

Unavailable

21

BOLT | K,L,M This part replaces 01112-06258.

01500-06257

$1.97

22

WASHER | K,L,M This part replaces 08322-21068.

08322-01067

$2.13

23

.NUT | K,L,M This part replaces 08311-11068.

08310-00067

$2.13

24

SPACER | K,L,M

09180-23001

Unavailable

25

BEARING | K,L,M

09263-30003

Unavailable

26

PIN | K,L,M

09202-03015

Unavailable
