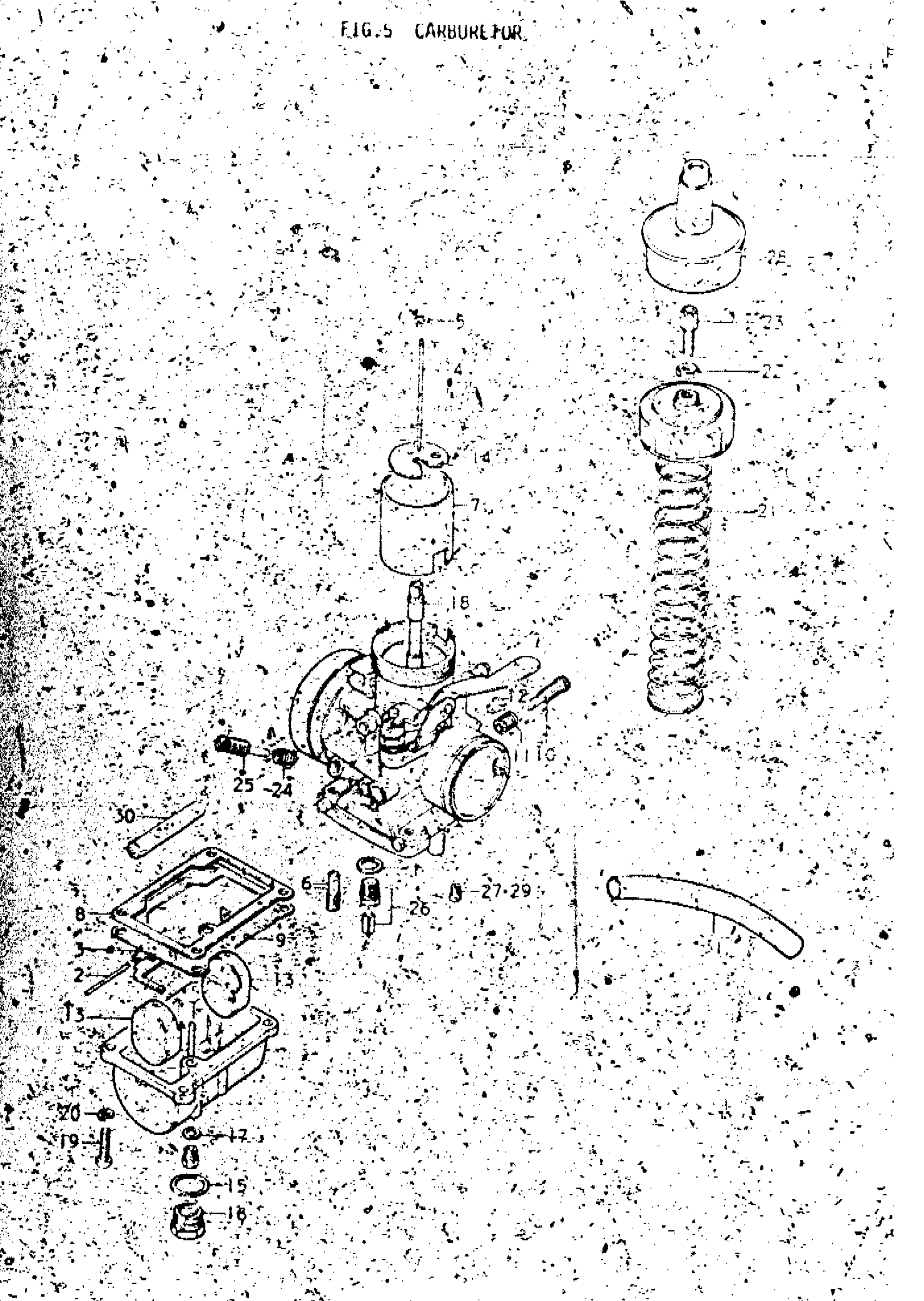

Suzuki TM250 (1975) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | J,K; STAMPED:30112

13200-30112

Unavailable

0

CARBURETOR ASSY | L; STAMPED: 30640 TO 13200-30642

13200-30640

Unavailable

0

CARBURETOR ASSY | M; STAMPED: 30642; Includes Item(s) 1 - 28

13200-30642

Unavailable

1

GASKET, NEEDLE VALVE

13392-16600

$1.94

2

PIN, FLOAT

13254-11010

Unavailable

3

ARM, FLOAT | J,K

13253-16600

Unavailable

4

NEEDLE, JET | 6DP1-2

13383-30111

Unavailable

5

CLIP, NEEDLE JET

13394-10010

$5.45

6

JET, PILOT | J,K; #40

09492-40004

$10.05

6

JET, PILOT | L,M; #35

09492-35004

Unavailable

7

VALVE, THROTTLE | J,K; CA:1.5

13551-30111

Unavailable

7

VALVE, THROTTLE | L,M

13551-30112

Unavailable

8

GASKET, FLOAT CHAMBER | J,K

13251-16600

Unavailable

8

GASKET, FLOAT CHAMBER | L

13251-16510

Unavailable

8

GASKET, FLOAT CHAMBER | M

13251-30110

Unavailable

9

PLATE, FLOAT CHAMBER | J,K,L

13259-16510

Unavailable

9

PLATE, FLOAT CHAMBER | M

13259-30110

Unavailable

10

SCREW, THROTTLE VALVE STOP

13267-16400

Unavailable

11

SPRING, THROTTLE VALVE STOP | J,K

13268-03110

$5.45

12

LOCK NUT | K,L,M

13662-16510

Unavailable

13

FLOAT | J,K

13252-16600

$27.77

13

FLOAT | L,M

13252-32010

Unavailable

14

SEAT, THROTTLE VALVE SPRING | J,K,L,M

13581-16600

Unavailable

15

GASKET, PLUG | J,K,L,M

13249-16600

Unavailable

16

PLUG | J,K

13247-16600

Unavailable

16

PLUG | L,M

13247-30110

Unavailable

17

WASHER | J,K

13382-03110

$2.80

17

RING | L,M

13331-16510

Unavailable

18

NOZZLE, NEEDLE | J,K; P-0

09494-00104

Unavailable

18

NOZZLE, NEEDLE | L,M

09494-00137

Unavailable

19

SCREW This part replaces 02112-05168.

02112-05167

$1.97

20

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

21

SPRING

13573-16601

Unavailable

22

NUT, CABLE ADJUSTER

13661-16600

$4.64

23

ADJUSTER This part replaces 13577-03010.

13577-48110

$8.30

24

SPRING, PILOT AIR SCREW

13268-01010

$5.28

25

SCREW, PILOT AIR

13269-15010

Unavailable

26

VALVE, NEEDLE | J,K

13370-16600

Unavailable

26

VALVE, NEEDLE | L,M

13370-30630

Unavailable

27

JET, MAIN | J,K; #230

09491-46001

$11.57

27

JET, MAIN (200) | M; #200 This part replaces 09491-40004.

09491-40006

Unavailable

28

BOOT, CABLE ADJUSTER | J,K,L; TO 13681-16601 This part replaces 13681-30100.

13681-16601

$8.26

28

CAP, CABLE ADJUSTER | M

13681-16601

$8.26

29

JET, MAIN (180) | L,M; #180 OPT This part replaces 09491-36003.

09491-36006

Unavailable

29

JET, MAIN (190) | L,M; #190 OPT This part replaces 09491-38003.

09491-38009

Unavailable

29

JET, MAIN (210) | #210 OPT This part replaces 09491-42001.

09491-42005

Unavailable

29

JET, MAIN | #220 OPT This part replaces 09491-44001.

09491-44007

Unavailable

29

JET. MAIN (240) | J,K; #240 OPT This part replaces 09491-48001.

09491-48003

Unavailable

29

JET, MAIN (250) | J,K; #250 OPT This part replaces 09491-50003.

09491-50008

Unavailable

29

JET, MAIN | J,K; #260 OPT This part replaces 09491-52001.

09491-52006

$10.38

29

JET, MAIN (270) | J,K; #270 OPT This part replaces 09491-54001.

09491-54002

Unavailable

30

HOSE (3.5X6.5X600) | L,M This part replaces 13686-16600.

09351-35653-600

$4.64

31

HOSE (3.5X6.5X600) This part replaces 09344-03016.

09351-35653-600

$4.64
