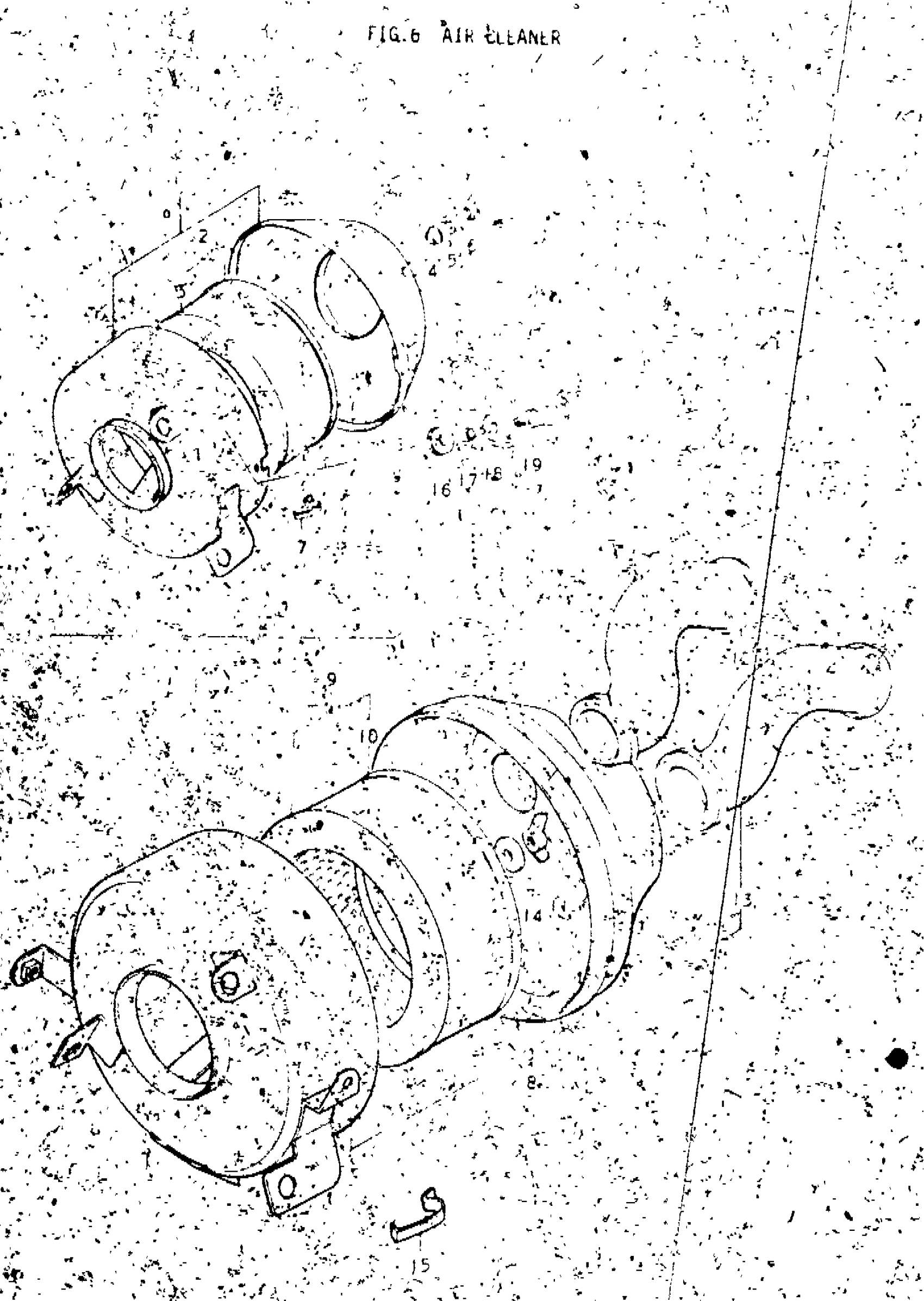

Suzuki TM250 (1975) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | J,K; TO 13700-30720; Includes Item(s) 2 - 7

13700-30712

Unavailable

2

FILTER | J,K; TO 13780-16511

13780-30710

Unavailable

3

FILTER | J,K; TO 13781-30711 This part replaces 13781-30710.

13780-30710

Unavailable

4

GASKET | J,K

13742-29010

Unavailable

5

WASHER | J,K This part replaces 08322-21068.

08322-01067

$2.13

6

NUT | J,K

09144-06002

Unavailable

7

NUT | J,K

13731-16511

Unavailable

8

CLEANER ASSY, AIR | K

13700-30720

Unavailable

8

CLEANER ASSY, AIR | L,M; Includes Item(s) 9 - 15

13700-30410

Unavailable

9

FILTER | K

13780-16511

Unavailable

9

FILTER | L,M

13780-30410

Unavailable

10

FILTER | K,L; TO 13781-30711 This part replaces 13781-30710.

13780-30710

Unavailable

10

FILTER | M This part replaces 13781-30711.

13780-30710

Unavailable

11

NUT | L,M

09144-06002

Unavailable

12

INLET PIPE (1) | L,M

13722-30411

Unavailable

13

INLET PIPE (2) | L,M

13723-30411

Unavailable

14

GASKET | L,M

13742-29010

Unavailable

15

SPRING | K,L,M

13731-16512

Unavailable

16

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

17

SPACER (6.5X9X7) This part replaces 09180-07005.

09180-06259

$2.48

18

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

19

BOLT, CANISTER | J,K,L This part replaces 01112-06168.

01500-06167

$1.97

19

BOLT | M This part replaces 01112-06208.

01500-06207

$2.28
