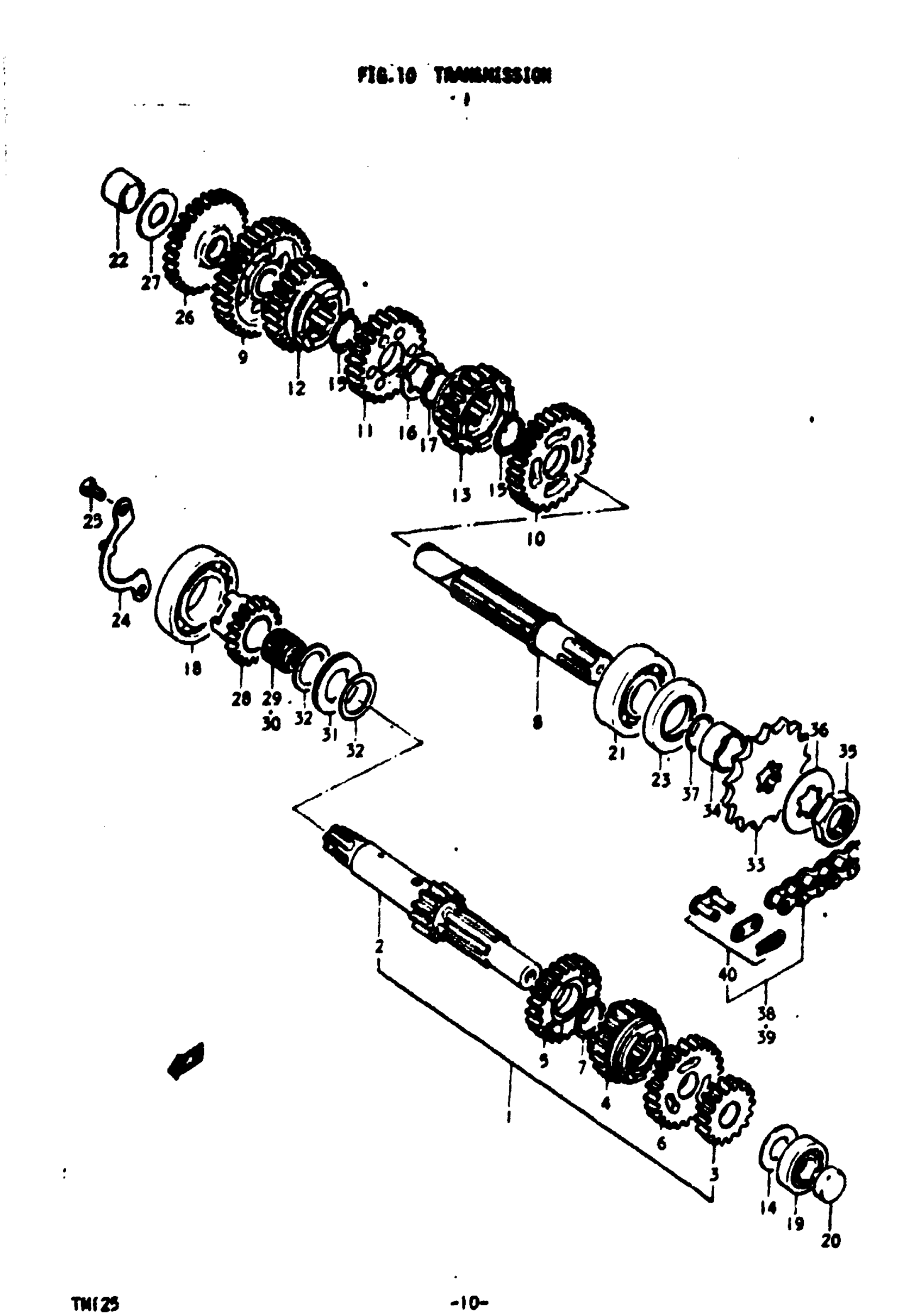

Suzuki TM125 (1975) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | K,L This part replaces 24120-28302.

24120-28304

Unavailable

1

COUNTERSHAFT ASSY | L,M; SEE NOTE 1.; Includes Item(s) 2 - 7 This part replaces 24120-28303.

24120-28304

Unavailable

2

COUNTERSHAFT | K,L; NT:14

24121-28302

Unavailable

2

COUNTERSHAFT | L,M; SEE NOTE 2.

24121-28303

Unavailable

3

GEAR, 2ND DRIVE | NT:17

24221-28300

Unavailable

4

GEAR, 3RD DRIVE | NT:20

24231-28300

Unavailable

5

GEAR, 4TH DRIVE | NT:22

24241-28300

Unavailable

6

GEAR, 5TH DRIVE | NT:23 This part replaces 24251-28300.

24251-28301

Unavailable

7

CIRCLIP This part replaces 09380-20003.

09380-20007

$2.43

8

DRIVESHAFT

24131-28001

Unavailable

9

GEAR, 1ST DRIVEN | NT:30

24310-28300

Unavailable

10

GEAR, 2ND DRIVEN | NT:27

24321-28300

Unavailable

11

GEAR, 3RD DRIVEN | NT:25

24331-28300

Unavailable

12

GEAR, 4TH DRIVEN | NT:23

24341-28300

Unavailable

13

GEAR, 5TH DRIVEN | NT:21

24351-28300

Unavailable

14

WASHER This part replaces 09160-15016.

08211-15301

$2.45

15

CIRCLIP This part replaces 09380-20003.

09380-20007

$2.43

16

LOCK WASHER, LH This part replaces 09167-20007.

09167-20022

Unavailable

17

CIRCLIP

09380-20006

$2.90

18

BALL BEARING This part replaces 08110-60060.

08113-60060

$24.18

19

BEARING

08113-60020

$16.01

20

PLUG

09241-19001

Unavailable

21

BEARING, COUNTER SHAFT This part replaces 09262-20009.

09262-20073

$23.28

22

BUSHING, DRIVESHAFT This part replaces 09303-15003.

09303-15004

$5.07

23

SEAL,OIL,25X44X This part replaces 09283-25009.

09283-25107

$6.02

24

HOLDER, BEARING

24741-28001

Unavailable

25

SCREW This part replaces 02112-06108.

02112-06107

$1.49

26

NO DESCRIPTION AVAILABLE | NT:29 This part replaces 26260-28002.

26260-28003

Unavailable

27

WASHER This part replaces 09160-15016.

08211-15301

$2.45

28

GEAR, KICK STARTER DRIVEN | K; NT:31 SEE NOTE 3.

26281-36100

Unavailable

28

GEAR, KICK STARTER DRIVEN | L,M

26281-36200

$71.33

29

BEARING | WITH TO 24120-24302

09263-19005

Unavailable

30

BEARING | WITH TO 24120-24303

09263-19006

$27.08

31

BEARING

09263-21006

$15.48

32

WASHER

09160-21007

$2.92

33

SPROCKET, ENGINE | K,L; NT:15, #428 This part replaces 27511-20000.

27511-27100

$29.03

33

SPROCKET, ENGINE | M

27511-27100

$29.03

33

SPROCKET, ENGINE | K,L; NT:13 OPT This part replaces 27511-24900.

27511-24901

Unavailable

33

SPROCKET,ENGINE | K,L; NT:14 OPT This part replaces 27511-20700.

27511-13700

Unavailable

33

SPROCKET,ENGINE | M; NT:14 OPT This part replaces 27511-36200.

27511-13700

Unavailable

34

SPACER

09180-20039

$7.31

35

NUT

09140-20001

$3.37

36

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

37

O RING

09280-20001

$1.65

38

CHAIN ASSY, DRIVE | K,L; #428,124L TO 27600-28311

27600-28310

Unavailable

39

CHAIN, DRIVE (428x132L) | M This part replaces 27600-28311.

27600-40220

Unavailable

40

JOINT, CHAIN

27620-28310

Unavailable
