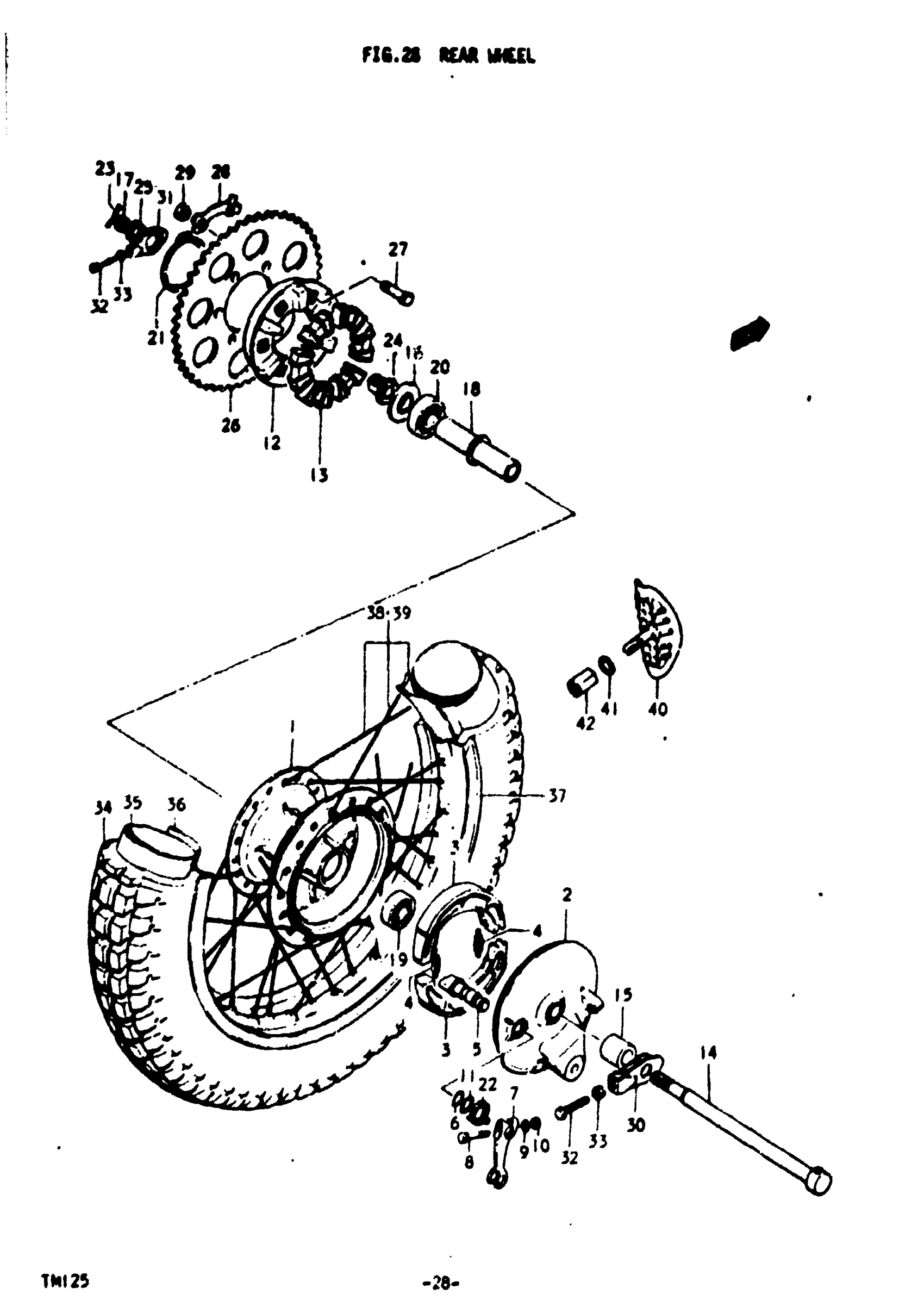

Suzuki TM125 (1975) REAR WHEEL Diagram

#

Description
Price

0

REAR WHEEL SET | K; INCLUDES REF.NOS. 1, 18~20 & 37~43

64100-28830

Unavailable

0

REAR WHEEL SET | L

64100-28841

Unavailable

0

REAR WHEEL SET | M

64110-29841

Unavailable

1

DRUM, REAR HUB | K,L; TO 64110-26301

64100-28300

Unavailable

1

DRUM, REAR HUB | M

64110-28301

Unavailable

2

PANEL, REAR HUB | K; TO 64210-28302

64210-28301

Unavailable

2

PANEL, REAR HUB | L

64210-28302

Unavailable

2

PANEL, HUB | M; TO 64210-28303 This part replaces 64210-28303.

64210-28004

Unavailable

3

SHOE SET, BRAKE | K,L; TO 54410-07002 This part replaces 54410-07001.

54401-07810

Unavailable

3

SHOE SET, BRAKE | M This part replaces 54410-07002.

54401-07810

Unavailable

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE | K

54441-20000

Unavailable

5

CAM, BRAKE | L

54441-07001

Unavailable

5

CAM, BRAKE | M

54441-01002

$18.80

6

DUST SEAL

09280-12001

$2.90

7

LEVER, BRAKE CAM

64451-28000

Unavailable

8

BOLT, ADJUSTER This part replaces 09100-06050.

09100-06150

$2.30

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT This part replaces 08311-11068.

08310-00067

$2.13

11

WASHER

09160-12011

$1.54

12

DRUM, SPROCKET MOUNTING

64610-28300

Unavailable

13

CUSHION, HUB

64650-28002

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 64711-28001.

64711-4130V

Unavailable

15

SPACER, RH | 15.2x26x26 This part replaces 09180-15010.

09180-15038

$7.77

16

SPACER, AXLE LH

64750-28000

Unavailable

17

NUT This part replaces 08314-31128.

08314-3112A

$2.41

18

SPACER, HUB BEARING | K

64730-38000

Unavailable

18

SPACER, HUB BEARING | L,M

64730-28000

Unavailable

19

BEARING, LH This part replaces 08143-62020.

08143-62027

$16.01

20

BEARING This part replaces 08123-63020.

08123-6302B

$22.74

21

CIRCLIP This part replaces 08331-11558.

08331-31559

$6.20

22

SPRING

09448-27003

Unavailable

23

PIN This part replaces 04111-30308.

04111-3030A

$1.49

24

SPACER, CHAIN ADJUSTER

64791-28001

$23.32

25

NUT This part replaces 09140-18001.

09140-18501

$2.93

26

NO DESCRIPTION AVAILABLE | K,L; NT:61, #428M; NT:61, #428 OPT This part replaces 64511-28731.

64511-28301

Unavailable

26

SPROCKET, REAR | NT:58 OPT

64511-28721

Unavailable

26

SPROCKET, REAR | K; NT:64 OPTL,M; NT:64

64511-28741

Unavailable

26

SPROCKET, REAR | NT: 67 OPT

64511-28751

Unavailable

27

BOLT

09105-08006

Unavailable

28

WASHER

09169-08013

$2.23

29

NUT This part replaces 08312-31088.

08310-00087

$2.13

30

ADJUSTER,CHAIN, This part replaces 61410-28002.

61410-28005

$10.09

31

LH CHAIN ADJUST This part replaces 61420-28002.

61420-28004

$11.48

32

BOLT This part replaces 09100-08099.

09100-08146

$2.82

33

NUT This part replaces 08312-11088.

08310-00087

$2.13

34

TIRE | 3.50-18

65100-28310

Unavailable

35

TUBE ASSY, WHEEL INNER | K,L; 3.50-18 TO 65200-18011 This part replaces 65200-18010.

65200-44AA0

$53.43

36

PROTECTOR, INNER TUBE This part replaces 65261-16510.

65261-33030

$5.50

37

RIM, WHEEL | K; 1.85Bx18

65311-16500

Unavailable

37

RIM, WHEEL | L

65311-16501

Unavailable

37

RIM, WHEEL | M; TAKASAGO

65311-28322

Unavailable

38

SPOKE SET | K,L; TO 65300-28860

65300-28830

Unavailable

38

SPOKE SET | M; USED FOR TAKASAGO RIM

65300-28860

Unavailable

39

SPOKE SET | M; USED FOR AKRONT RIM

65300-28870

Unavailable

40

STOPPER, BEAD This part replaces 65270-30000.

65270-43D00

$58.75

41

WASHER This part replaces 08322-21088.

08322-01087

$2.13

42

NUT

09159-08016

Unavailable
